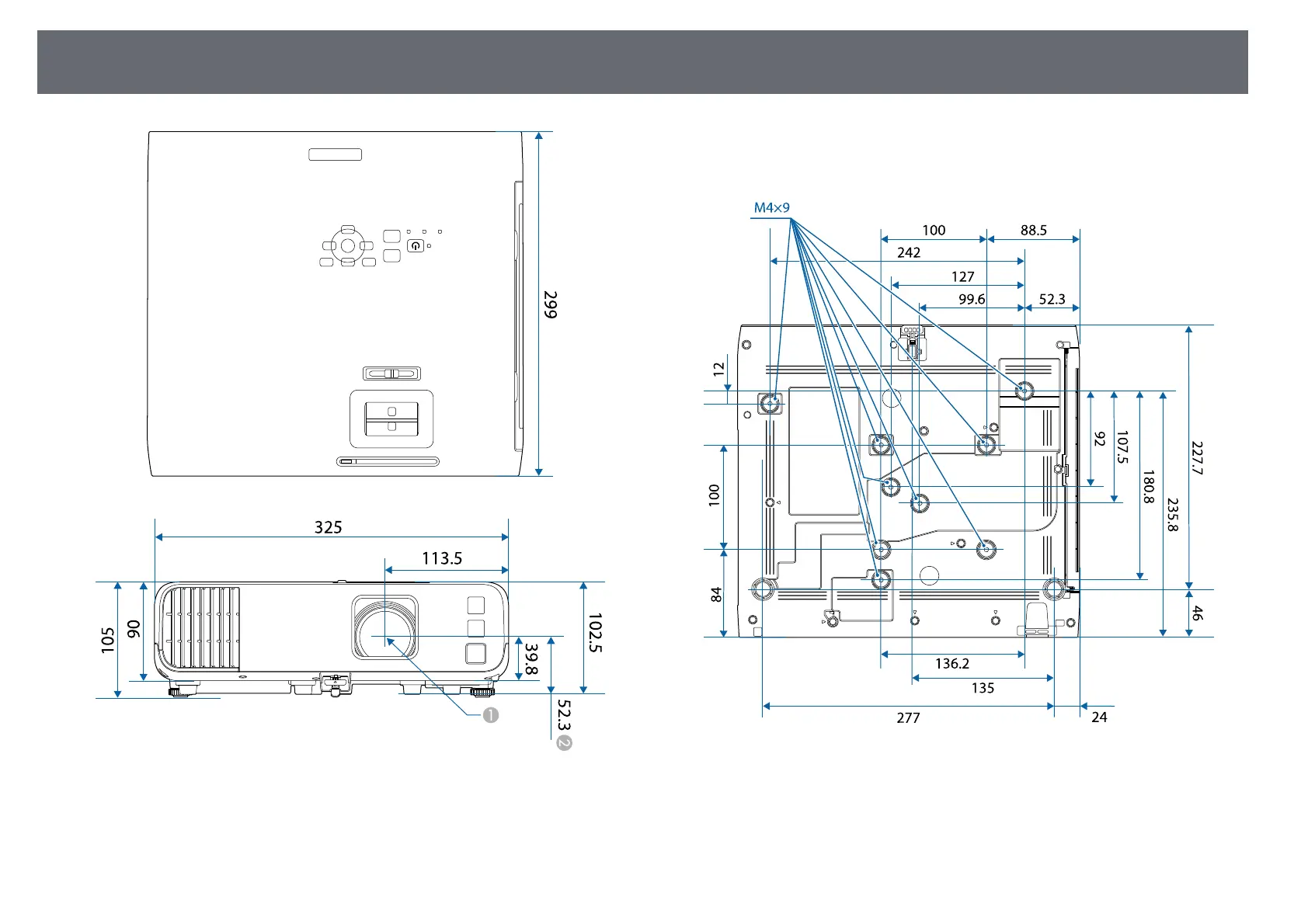

External Dimensions

236

Center of the projection lens

Distance from the center of the projection lens to the ceiling mount fixing

points

The unit in these illustrations is mm.
