Precautions on Installation

28

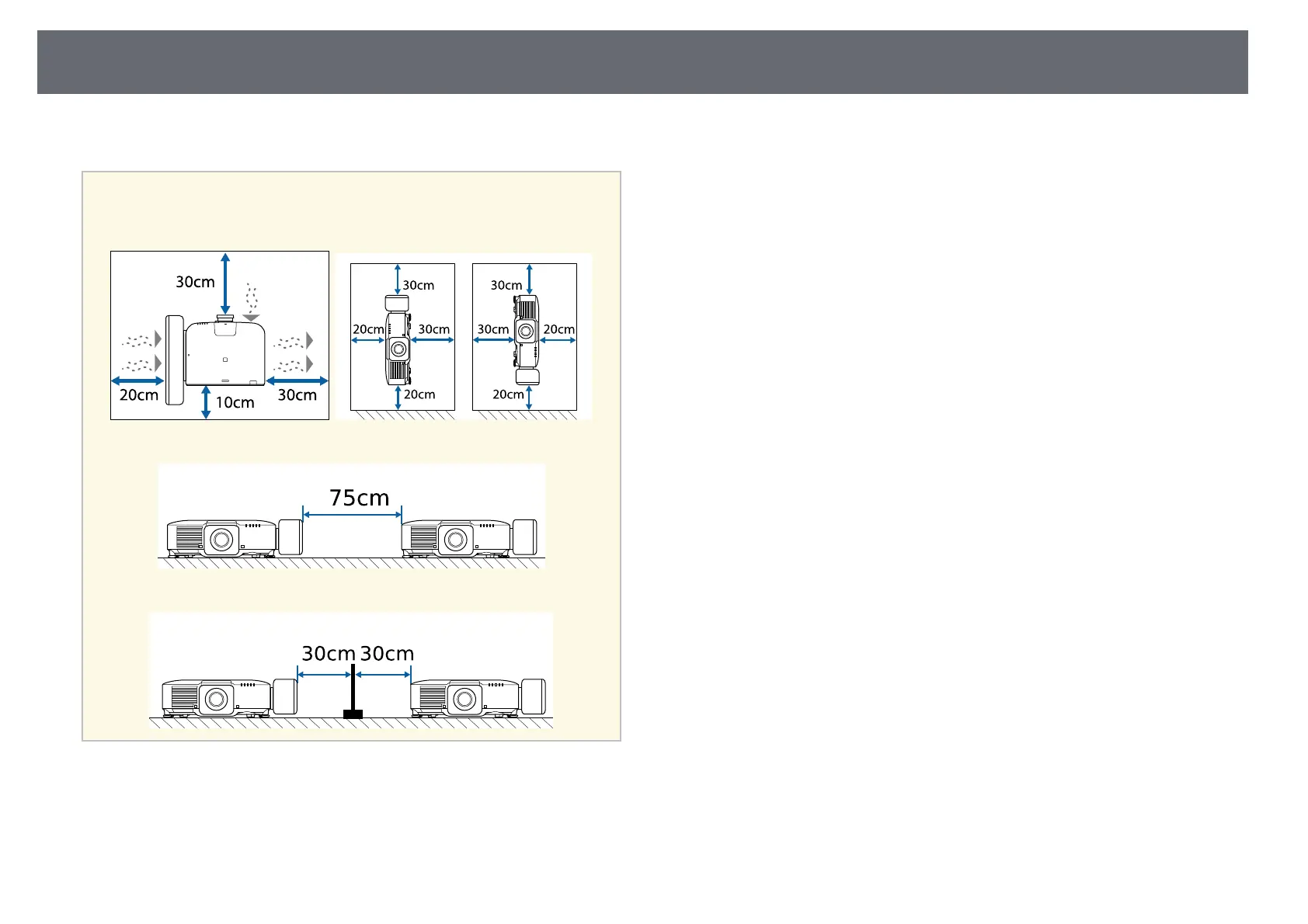

Installation space (When installing the optional external air filter)

Attention

If you are installing the optional external air filter to your projector, be sure to

leave the following amount of space around the projector.
