Projector Parts and Functions
14
Name Function
A
Power inlet Connects the power cord to the projector.
B
Control panel Operates the projector.
C
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
D
NFC tag Uses NFC technology to transfer projector information
through your mobile device.
The Projector Config Tool app lets you scan projector
information and write settings.
E
Connector ports Connects interface cables.

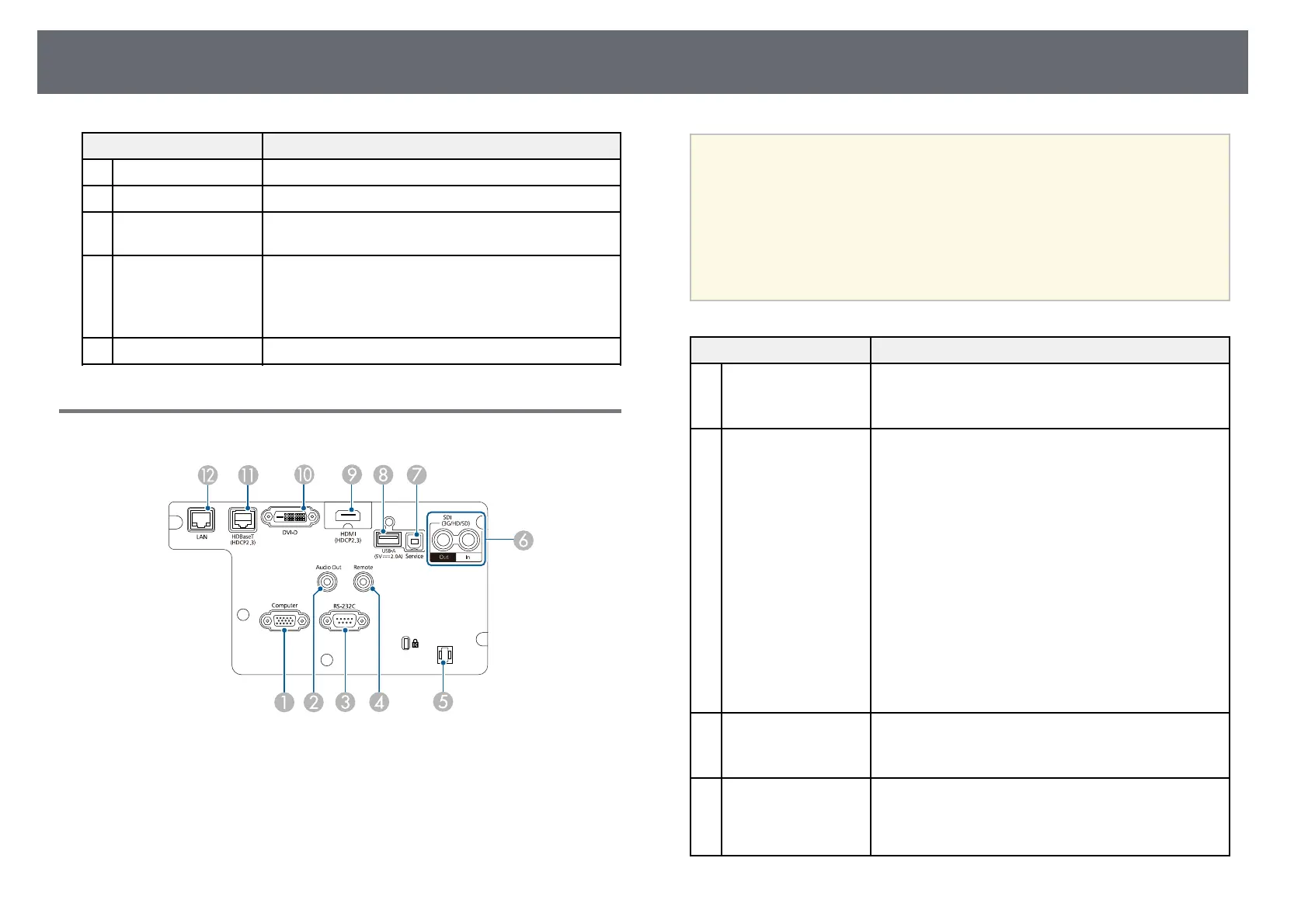

Projector Parts - Interface
Attention
• Check the shape and orientation of the connectors on any cable you plan to
connect. Do not force a connector into a port if it does not fit. The device or
your projector could be damaged or could malfunction.
• Do not turn on the input source before connecting it to the projector. Doing so
could damage the projector.
• If necessary, use an adapter that allows you to connect to an input port on the
projector.
Name Function
A
Computer port
(Mini D-Sub15-pin,
female)
Inputs image signals from a computer.
B
Audio Out port
(Stereo mini pin jack)
Outputs audio from the current input source to an
external speaker. You can also connect the projector to
an amplifier with speakers.
To output audio from external speakers, select
Projector as the Audio Out Device setting in the
projector's Settings menu. When an audio/video
system is not connected to the projector, audio is
output from the external speakers even if Audio Out
Device is set to AV System.
s Settings > HDMI Link > Audio Out Device
If you want to output audio for the HDMI source from
the external speakers when the projector is turned off,
select Always On as the A/V Output setting in the
projector's Extended menu.
s Extended > A/V Settings > A/V Output
C
RS-232C port
(Mini D-Sub 9-pin,
male)
Use to connect an RS-232C cable to control the
projector from a computer.
D
Remote port
(Stereo mini pin jack)
Use to connect the optional remote control cable set
and inputs signals from the remote control. When the
remote control cable is connected, the remote receiver
on the projector is disabled.
To Next Page
