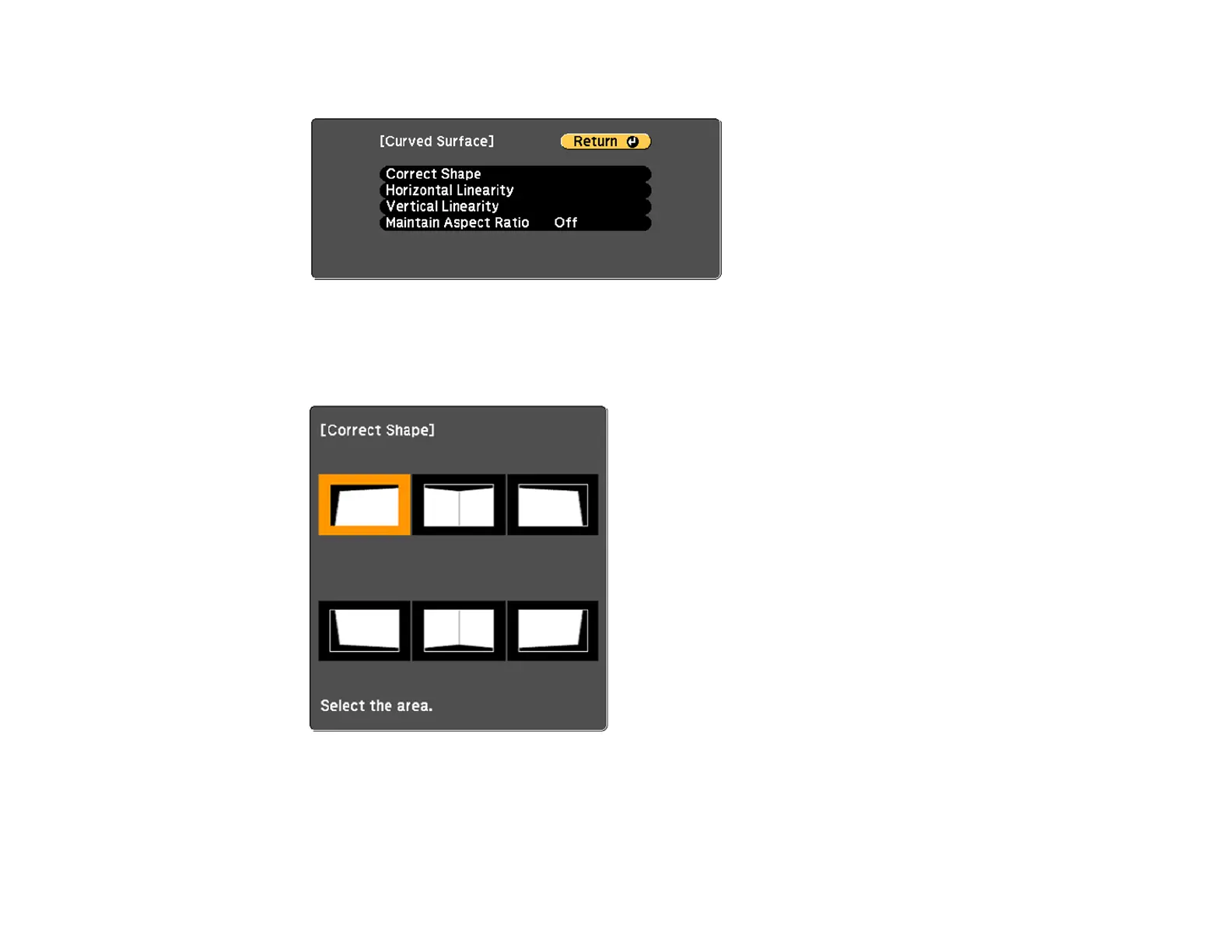

You see this screen:

7. Select the Correct Shape setting and press Enter.

8. Use the arrow buttons on the projector or the remote control to select the area you want to adjust.

Then press Enter.

Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a

reset screen. Then select Yes.

Table of Contents3
EB-PU2113W/EB-PU2213B/EB-PU2116W/EB-PU2216B/EB-PU2120W/EB-PU2220B User's Guide11
Introduction to Your Projector12
Projector Features12
Product Box Contents13
Additional Components14
Additional Projector Software and Manuals15
Optional Equipment and Replacement Parts18
Optional Equipment and Replacement Parts (Latin America)18
Warranty and Registration Information (U.S. and Canada)19
Warranty and Registration Information (Latin America)19
Notations Used in the Documentation20
Where to Go for Additional Information20
Projector Part Locations20
Projector Parts - Front/Top21
Projector Parts - Rear22
Projector Parts - Interface Ports23
Projector Parts - Base24
Projector Parts - Control Panel25
Projector Parts - Remote Control27
Setting up the Projector30
Projector Placement30
Projector Setup and Installation Options30
Projection Distance34
Projector Connections34
Connecting to Video Sources34
Connecting to an HDMI Video Source35
Connecting to an SDI Video Source35
Connecting to a Component Video Source36
Connecting to Computer Sources37
Connecting to a Computer for VGA Video37
Connecting to a Computer for HDMI Video and Audio37
Connecting to a Computer for DVI-D Video38
Connecting to an Hdbaset Transmitter39
Connecting to External Speakers40
Attaching and Removing a Lens41
Attaching a Lens41
Removing a Lens47
Attaching and Removing the Cable Cover50
Installing the Safety Wire51
Installing Batteries in the Remote Control52
Using the Projector on a Network54
Wired Network Projection54
Connecting to a Wired Network54
Selecting Wired Network Settings55
Wireless Network Projection58
Installing the Wireless LAN Module59
Using a QR Code to Connect a Mobile Device61
Using Quick Wireless Connection (Windows)63
Selecting Wireless Network Settings Manually64
Wireless LAN Menu Settings67
Selecting Wireless Network Settings in Windows69
Selecting Wireless Network Settings on Mac70
Setting up Wireless Network Security70
Setting up Projector Network E-Mail Alerts72
Network Projector E-Mail Alert Messages74
Selecting Other Network Settings74
Controlling a Networked Projector Using a Web Browser75
Web Control Options77
Viewing an Image Capture of the Displayed Image from a Remote Location86
Controlling a Networked Projector in Content Playback Mode89
Web Control Options in Content Playback Mode92
Using Crestron Connected96
Setting up Crestron Connected97
Controlling a Networked Projector Using Crestron Connected98
Registering a Digital Certificate on the Projector99
Importing a Web Server Certificate Using the Projector Menus99
Registering Digital Certificates from a USB Device100
Registering Digital Certificates from a Web Browser102
Digital Certificate Types104
Using Basic Projector Features106
Turning on the Projector106
Using the Home Screen109
Turning off the Projector110
Selecting the Language for the Projector Menus112
Setting the Date and Time112
Date and Time Settings113
Resizing the Image with the Zoom Button114
Focusing the Image Using the Focus Buttons115
Focusing the Image When Using an Optional Short Throw Lens116
Setting the Lens Type117
Setting the Screen Type118
Adjusting the Image Position Using Lens Shift119
Adjusting the Image Position Using Screen Position120
Displaying a Test Pattern121
Adjusting the Image Height122
Image Shape123
Correcting Image Shape with H/V-Keystone124
Correcting Image Shape with Quick Corner127
Correcting Image Shape with Curved Surface129
Correcting Image Shape with Corner Wall133
Correcting Image Shape with Point Correction139
Selecting an Image Source142
Remote Control Operation144
Projection Modes145
Changing the Projection Mode Using the Remote Control145
Changing the Projection Mode Using the Menus146
Image Aspect Ratio147
Changing the Image Aspect Ratio147
Available Image Aspect Ratios148
Color Mode149
Changing the Color Mode150
Available Color Modes150
Adjusting the Brightness151
Constant Brightness Usage Hours153
Adjusting Luminance Controls155
Controlling the Volume with the Volume Buttons157
Projecting in Content Playback Mode158
Projecting a Playlist in Content Playback Mode158
Adding Effects to the Projected Image160
Adjusting Projector Features162
Shutting off the Picture and Sound Temporarily (A/V Mute)162
Shutting off the Picture and Sound Temporarily (Shutter)163
Stopping Video Action Temporarily164
Zooming into and out of Images164
Projector Security Features165
Password Security Types166
Setting a Password166
Selecting Password Security Types168
Entering a Password to Use the Projector169
Saving a User's Logo Image to Display170
Locking the Projector's Lens Settings and Buttons172
Unlocking the Projector's Buttons173
Locking the Remote Control Buttons173
Installing a Security Cable174
Projecting Two Images Simultaneously176
Using Advanced Image Adjustment Features178
Using Frame Interpolation179
Using 4K Enhancement180
Creating Image Presets182
Using MPEG Noise Reduction183
Adjusting Scaled Resolution Images (Super-Resolution)184
Adjusting Detail Enhancement185
Adjusting the Color Convergence (Panel Alignment)186
Adjusting the Color Tone (Color Uniformity)188
Running Light Source Calibration190
Using Multiple Projectors192
Multiple Projector Adjustment Overview192
Projector Identification System for Multiple Projector Control195
Setting the Projector ID195
Setting the Remote Control ID196
Tiling Images into One Image197
Configuring Tiling Automatically198
Configuring Tiling Manually200
Blending the Image Edges202
Adjusting the Black Level204
Matching Tint and Brightness (Screen Matching)208
Screen Matching Conditions209
Matching the Screens Manually210
Scaling an Image211
Simple Stacking for One Bright Image212
Simple Stacking Conditions212
Setting up Simple Stacking213
Saving Settings to Memory and Using Saved Settings214
Saving a Scheduled Event216
Viewing Scheduled Events218
Editing a Scheduled Event218
Copying Menu Settings between Projectors219
Saving Settings to a USB Flash Drive220
Transferring Settings from a USB Flash Drive221
Saving Settings to a Computer222
Transferring Settings from a Computer223
Adjusting the Menu Settings225
Using the Projector's Menus225
Image Quality Settings - Image Menu227
Input Signal Settings - Signal Menu231
Projector Feature Settings - Settings Menu234
Projector Setup Settings - Extended Menu241
Projector Network Settings - Network Menu250
Projector Information Display - Info Menu252
Event ID Code List254
Projector Reset Options - Reset Menu256
Maintaining and Transporting the Projector259
Projector Maintenance259
Cleaning the Lens259
Cleaning the Projector Case260
Cleaning the Air Vents260
Replacing the Remote Control Batteries261
Transporting the Projector263
Solving Problems265
Projection Problem Tips265
Projector Light Status266
Viewing the Status Display270
Projector Status Display Messages272
Using the Projector Help Displays278
Solving Image or Sound Problems278
Solutions When no Image Appears279
Solutions When "No Signal" Message Appears280
Displaying from a PC Laptop280
Displaying from a Mac Laptop281
Solutions When "Not Supported" Message Appears281
Solutions When Only a Partial Image Appears281
Solutions When the Image Is Not Rectangular282
Solutions When the Image Contains Noise or Static283
Solutions When the Image Is Fuzzy or Blurry284
Solutions When the Image Brightness or Colors Are Incorrect285
Solutions When an Afterimage Remains on the Projected Image285
Solutions When Automatic Adjustments Are Not Applied Correctly286
Solutions to Simple Stacking Problems287
Solutions to Sound Problems288
Solving Projector or Remote Control Operation Problems289
Solutions to Projector Power or Shut-Off Problems289
Solutions to Remote Control Problems290
Solutions to Password Problems291
Solutions When a Battery Message Appears291
Solving Network Problems292
Solutions When Wireless Authentication Fails292
Solutions When You Cannot Access the Projector through the Web292
Solutions When the Image Contains Static During Network Projection293
Solutions When Network Alert E-Mails Are Not Received293
Solutions to Problems Using Content Playback294
Where to Get Help (U.S. and Canada)295
Where to Get Help (Latin America)296
Technical Specifications298
General Projector Specifications298
Projector Light Source Specifications300
Remote Control Specifications301
Projector Dimension Specifications301
Projector Electrical Specifications302
Projector Environmental Specifications304
Projector Safety and Approvals Specifications305
Supported Monitor Display Resolutions305
Notices312
Recycling (U.S. and Canada)312
Important Safety Information312
Important Safety Instructions313
Laser Safety Information (EB-PU2113W/EB-PU2213B/EB-PU2116W/EB-PU2216B)316
Laser Safety Information (EB-PU2120W/EB-PU2220B)317
Laser Safety Labels (EB-PU2113W/EB-PU2213B/EB-PU2116W/EB-PU2216B)318
Laser Safety Labels (EB-PU2120W/EB-PU2220B)319
Hazard Distance (HD)323
Restriction of Use325
List of Safety Symbols (Corresponding to IEC60950-1 A2)325
FCC Compliance Statement329
Manufacturer and Importer Address331
Binding Arbitration and Class Waiver331
Trademarks334
Copyright Notice335
A Note Concerning Responsible Use of Copyrighted Materials335
Copyright Attribution335
