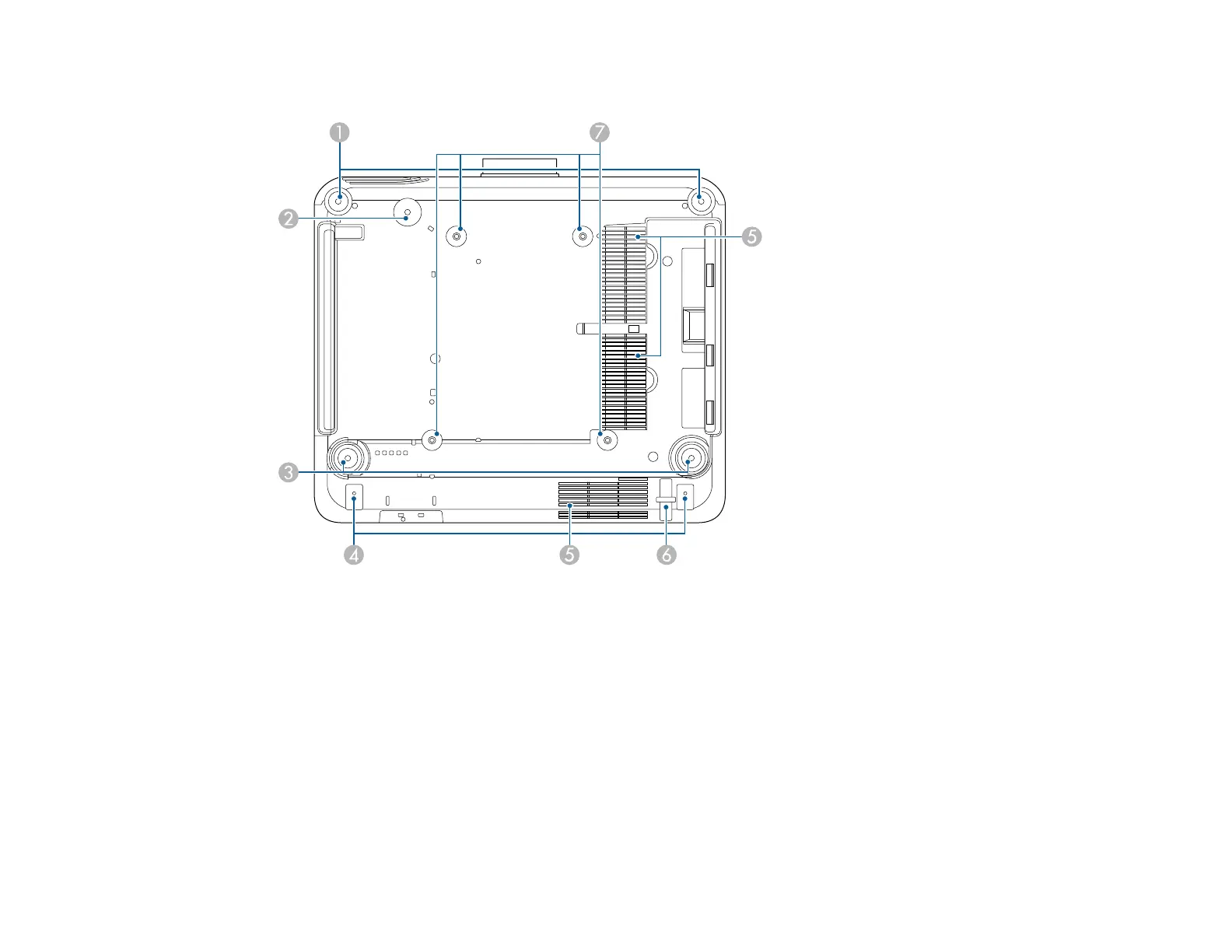

Projector Parts - Base

1 Front feet

2 Screw hole for safety wire

3 Rear feet

4 Screw holes for cable cover

5 Air intake vent

6 Security cable attachment point

7 Ceiling mount (ELPMB67) fixing points

Parent topic: Projector Part Locations
