271

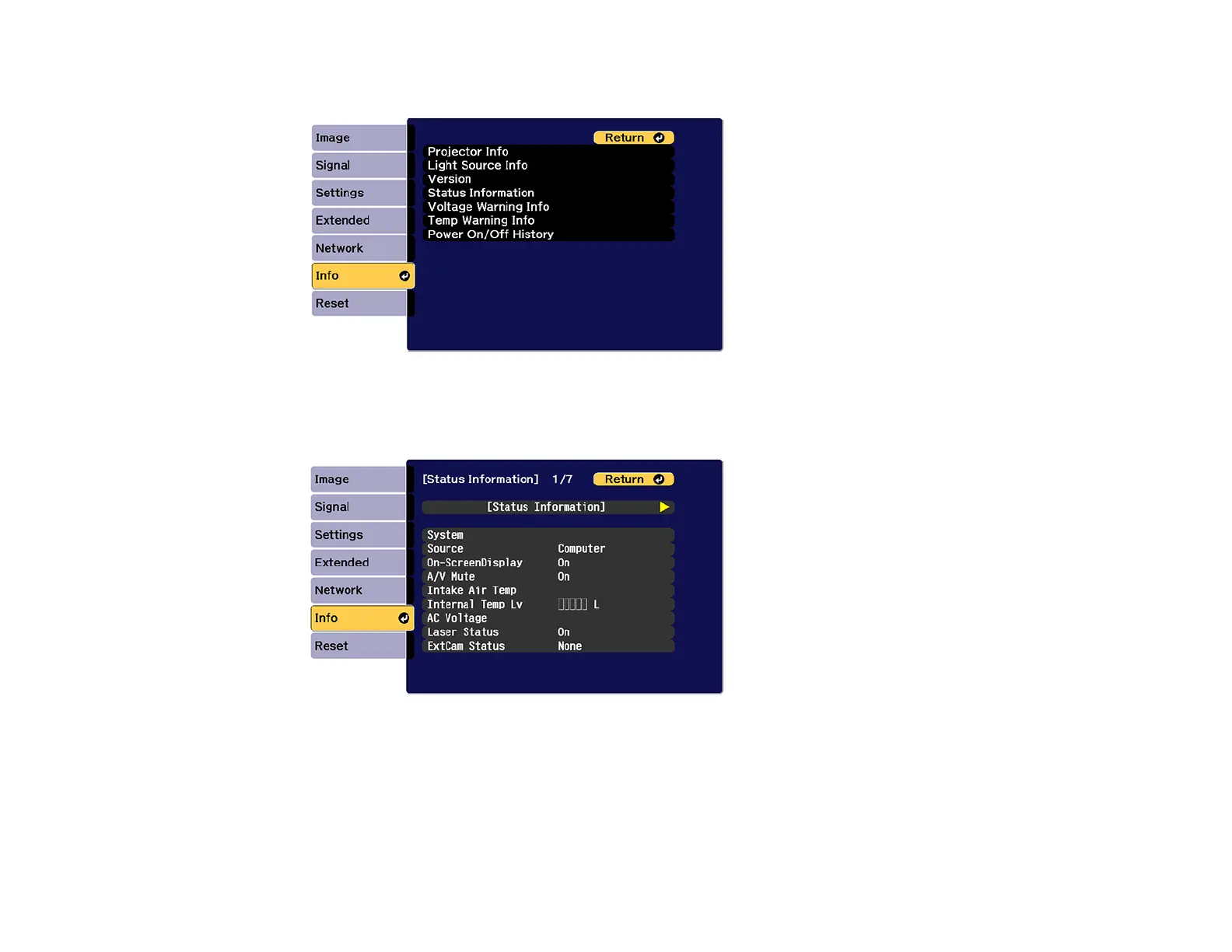

The
Info
menu
appears:
3.
Select
Status
Information
and
press
Enter
.
You
see
a
screen
like
this:
4.
Press
the
left
or
right
arrow
buttons
to
view
different
categories
of
information.
•
