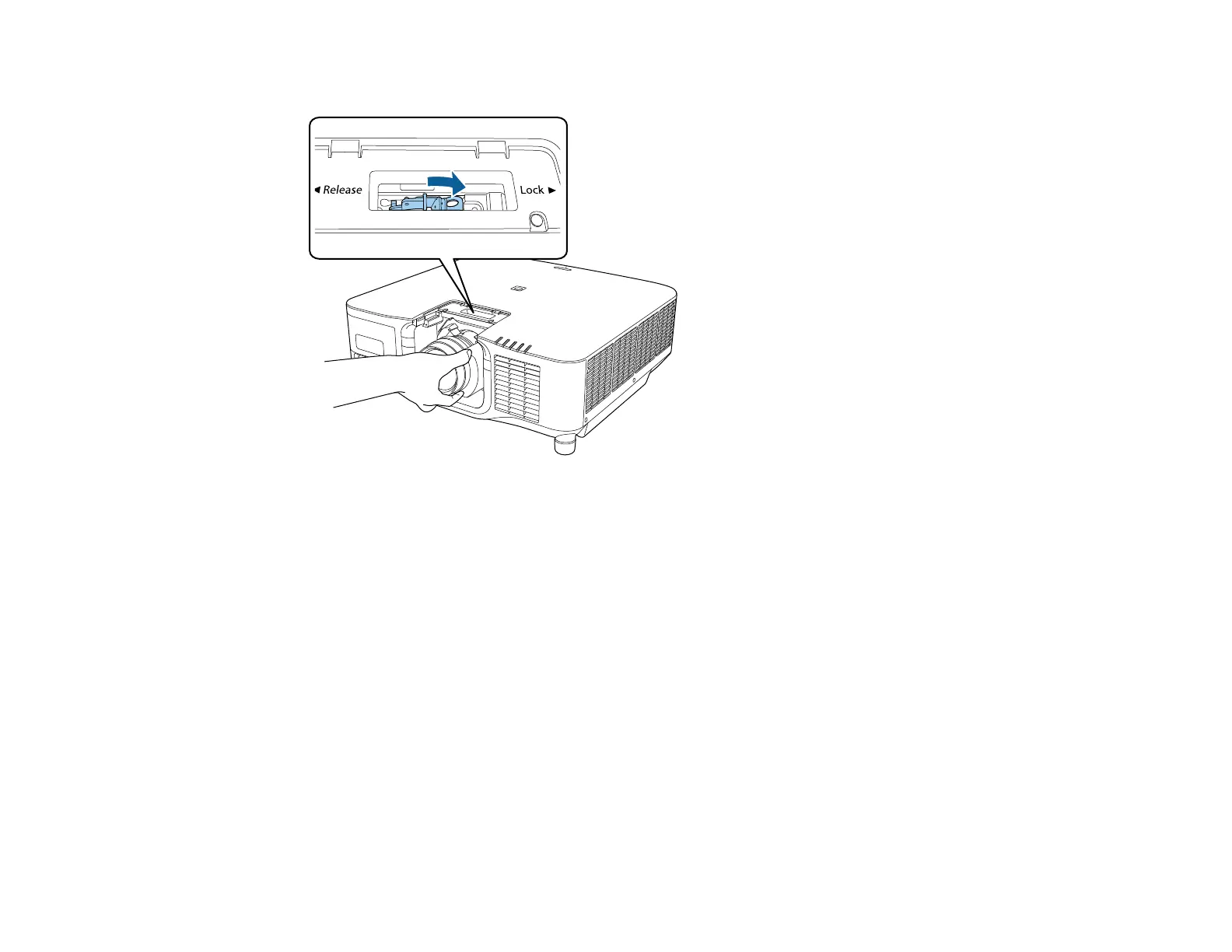

4. Hold the lens firmly after it is fully inserted, then pinch the lock lever and move it to the Lock position.

Note: Make sure the lens is securely attached.
