Epson EB-PU2113W

To Next Page

To Previous Page

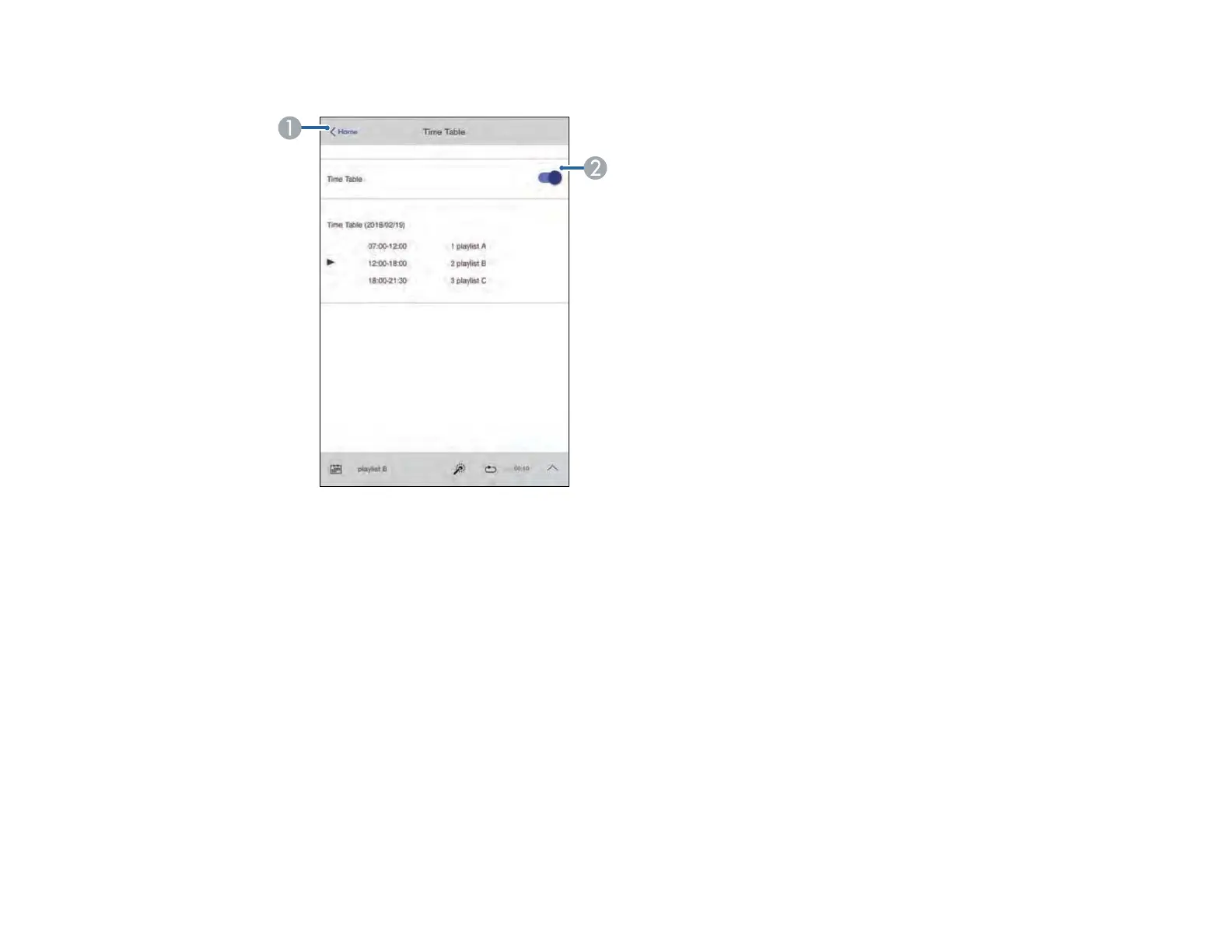

Time Table

1 Returns to the Epson Web Control screen

2 Turns the time table on or off (see the online Epson Projector Content Manager Operation Guide

for more information)

Main Page

Table of Contents3
