Installing the Wall mount

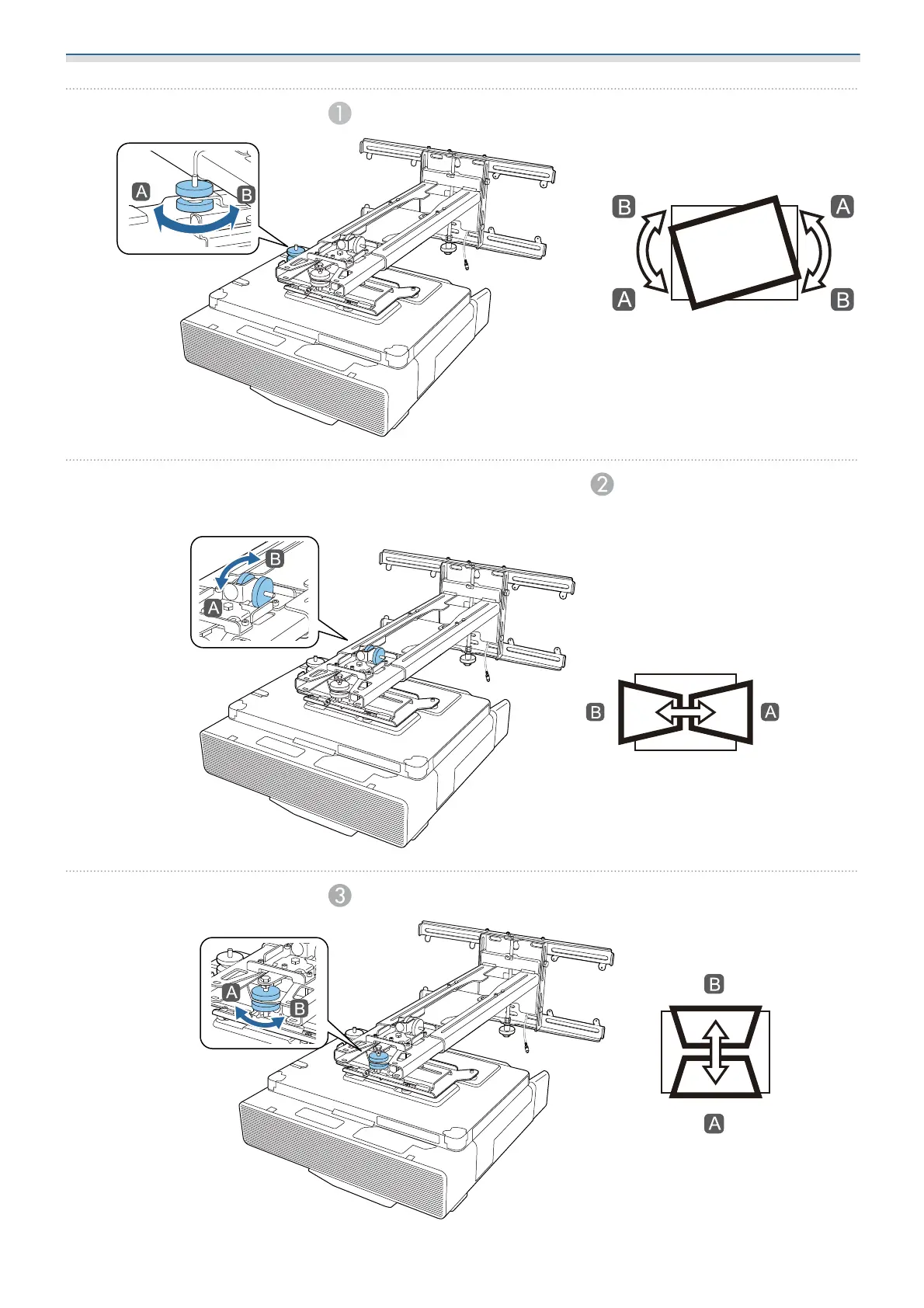

Turn the adjustment dial in the installation guide to adjust the horizontal roll

Loosen the M4 screw, and then turn the adjustment dial in the installation guide to

adjust the horizontal rotation

Turn the adjustment dial in the installation guide to adjust the vertical tilt
