Installing the Wall mount

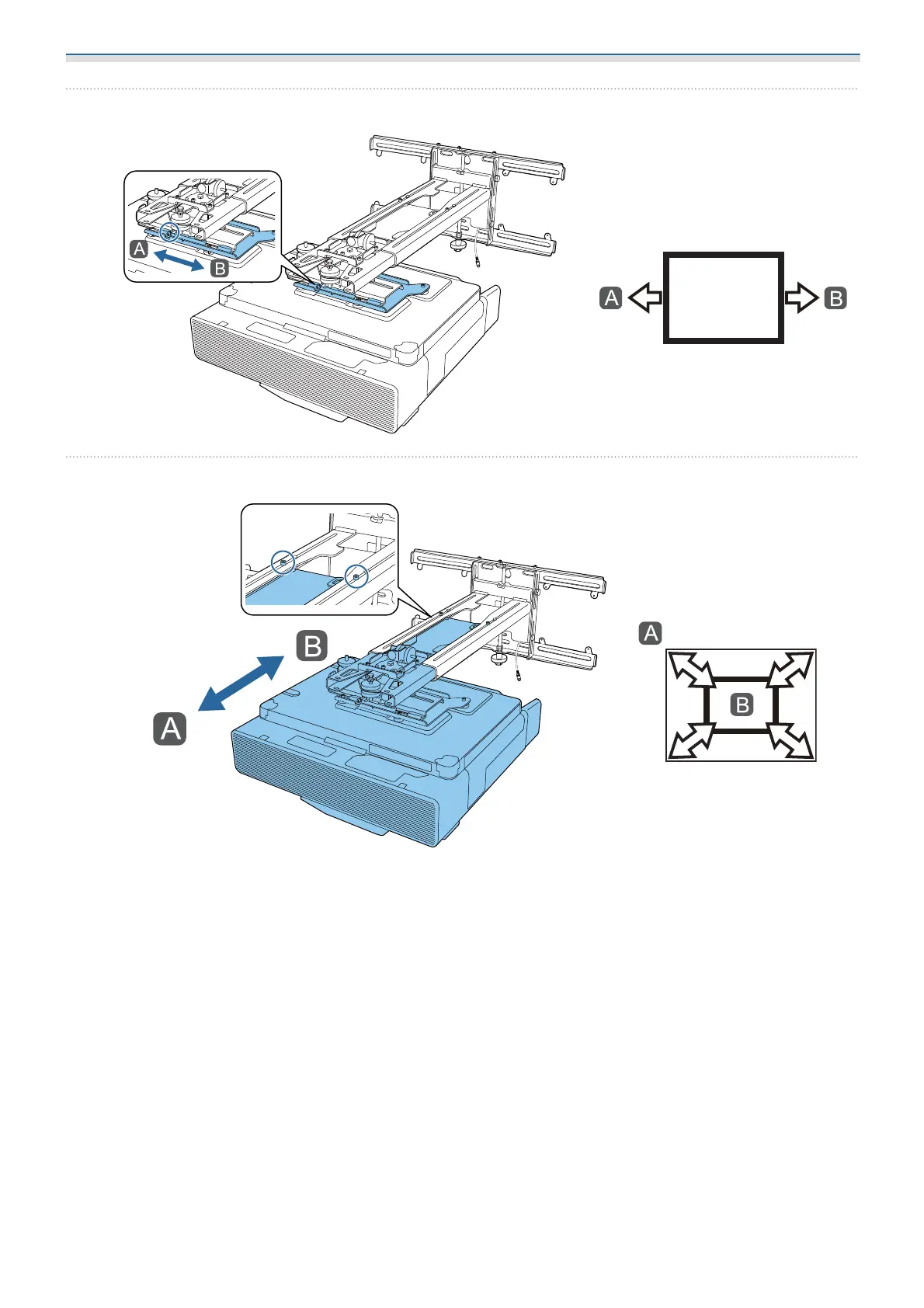

Loosen the M4 bolt, and then adjust the horizontal slide

Loosen the M4 bolts (x2), and then adjust the forward/backward slide
