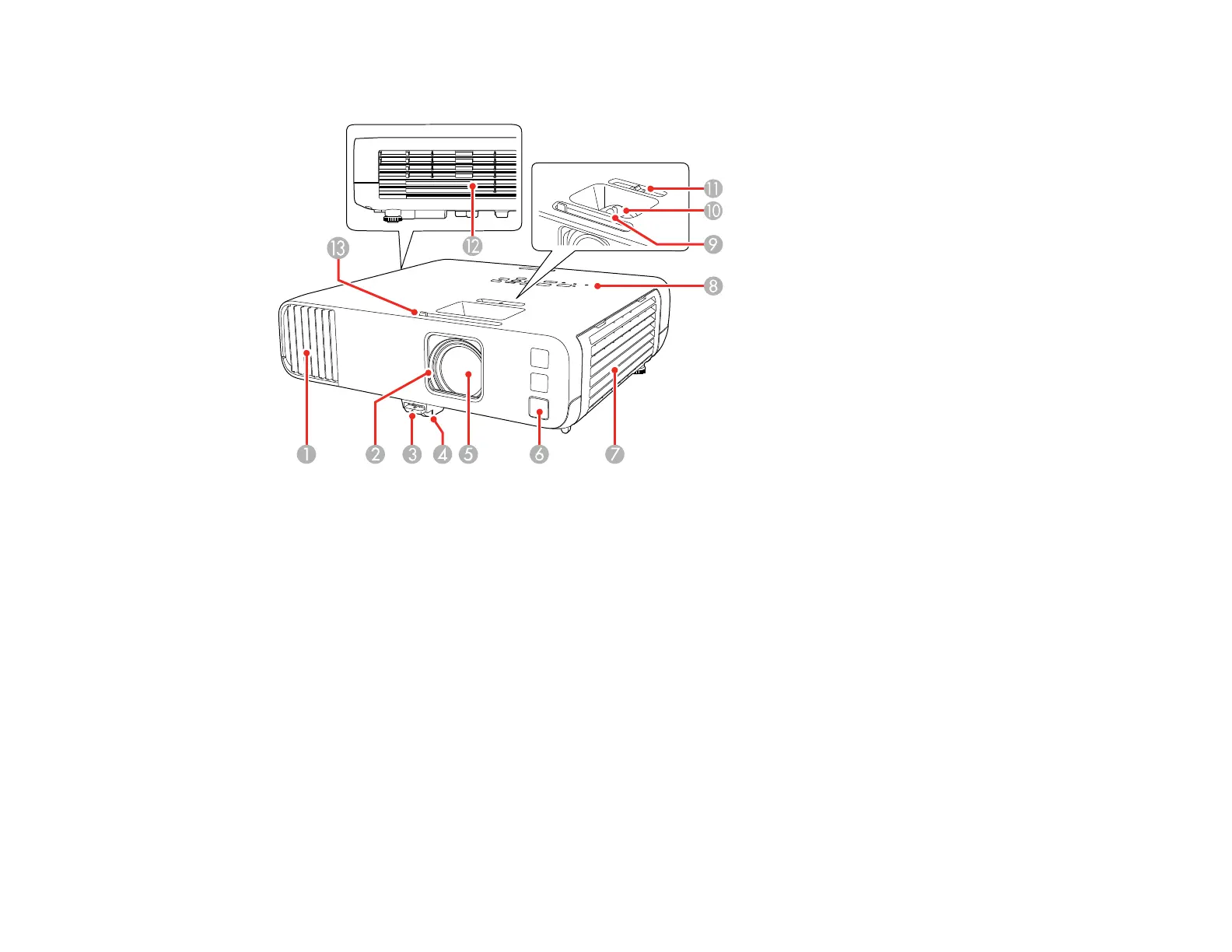

Projector Parts - Front/Top

1 Air intake vent

2 Lens cover

3 Foot release lever

4 Front adjustable foot

5 Lens

6 Remote control receiver

7 Air filter/intake vent

8 Control panel

9 Focus ring

10 Zoom ring

11 Horizontal keystone slider

12 Air exhaust vent
