Epson FX-870 Service Manual

Printer Features
options
C806371
C806391
C806381
C806401
C800201
C800211
C814001
C814011
C823051
C823071
C823101
C823141
C823151
#8750
#8755
#8758
#8310
Single-bin cut-sheet feeder (80-column)
Single-bin cut-sheet feeder (136-column)
High-capacity cut-sheet feeder (80-column)
High-capacity cut-sheet feeder (136-column)
Tractor unit (80-column)
Tractor unit (136-column)
Front sheet guide (80-column)
Front sheet guide (136-column)
Serial I/F card (Type B)
32KB intelligent serial I/F card (Type B)
32KB intelligent parallel I/F card (Type B)
Coax interface (Type B)
Twinax interface (Type B)
Fabric ribbon cartridge (80-column)
Fabric ribbon cartridge (136-column)
Fabric ribbon sub cartridge
Roll paper holder (only for 80-column model)
Hardware Specifications
Printing Method
Printing method:
Impact dot matrix
Pin configuration: 9 wires
(diameter 0.29 mm)
wire
#’ &
2+--- --
3 ‘----___ 5
0.35 mm (l/72”)
0
44

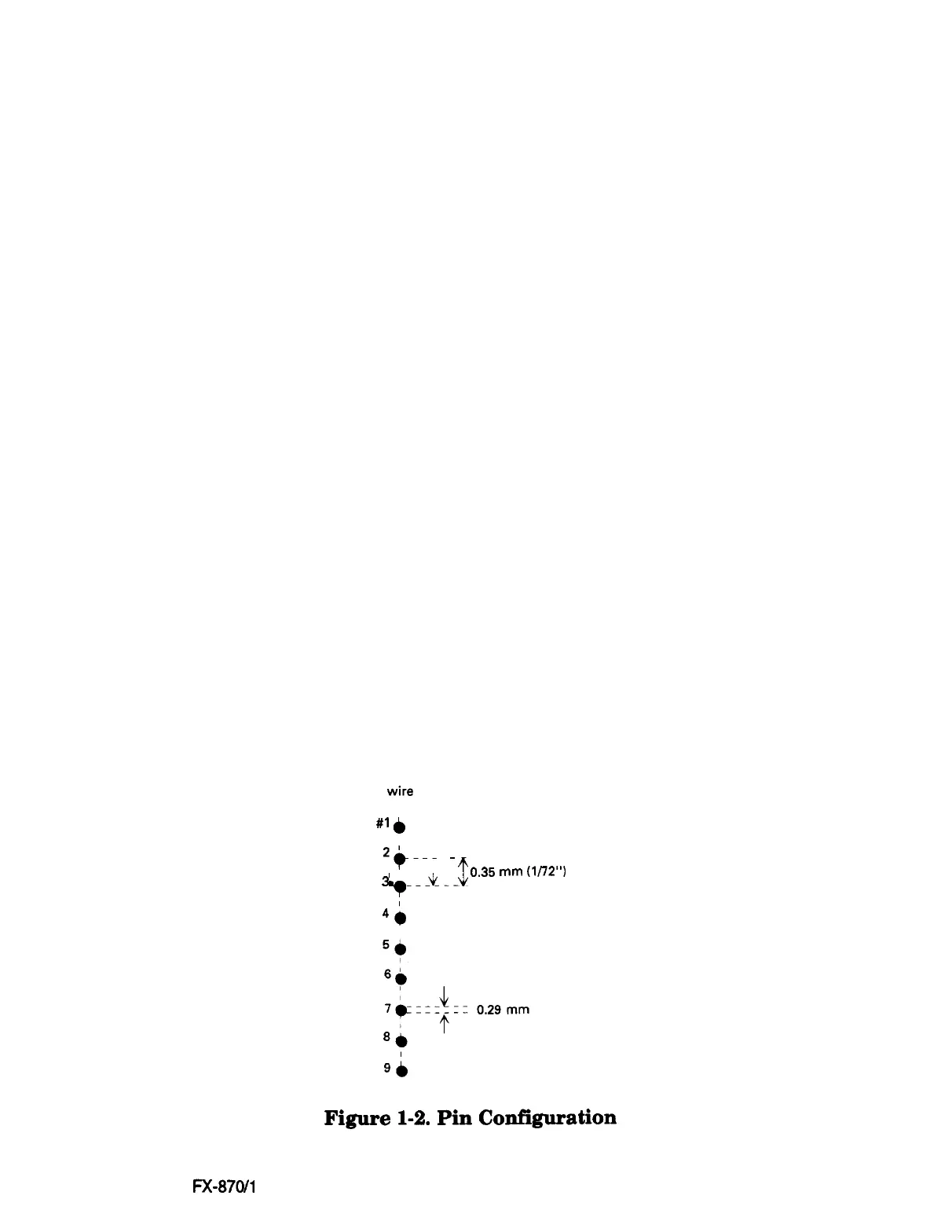

Figure 1-2. Pin Configuration
Epson M-870/1 170
1-3
