Epson FX-870 Service Manual

Disassembly and Assembly
Removing the Release Sensor
1.
2.
3.
4.
5.
6.
7.
Remove the paper guide assembly, ribbon, top cover, front cover, paper eject cover, and tractor
unit. (See page 4-5.)
Remove the panel unit. (See page 4-6.)
Remove the upper housing assembly. (See page 4-8.)
Remove the printer mechanism. (See page 4-9.)
Remove the platen assembly. (See page 4-10.)
Remove the rear frame assembly. (See page 4-11.)
Remove the two clips for the release sensor mounted on the rear paper guide assembly.
Remove the release sensor.
8.
Disconnect the release lead from the sensor.
-

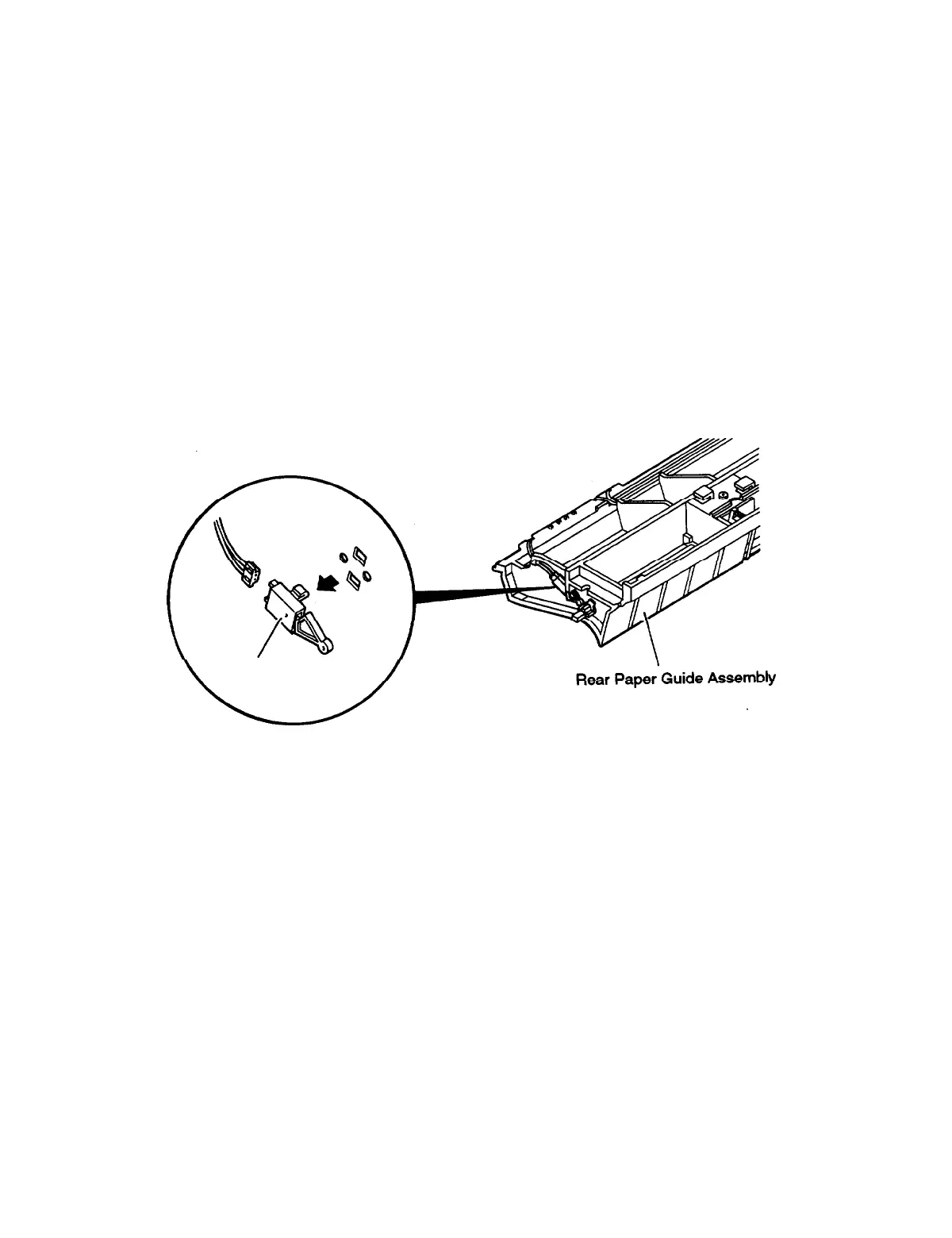

Release Sensor
Figure 4-21. Removing the Release Sensor
4-20
Epson FX-870/1170
