Epson FX-870

Installation and Setup
Running the Self-Test
The self-test checks the printer mechanically and electronically to make sure it works
properly.
If the printer runs the self-test successfully, it means that everything is
operational in the printer (with the possible exception of the interface circuit).
To run the self-test, hold down the PAPER PEED button while turning on the printer. You
can use any paper path and any acceptable paper type to run the self-test. To stop the self-
test, simply turn off the printer.
Connecting Printer Cables
Parallel Cables
The cable you connect to the built-in parallel Centronics interface should be a shielded,
twisted-pair cable no longer than 10 feet (3 meters), maximum.
If the cable has a frame
ground connector, attach it to the frame ground terminal beside the parallel connector in
the back of the printer. (See Table 1-13 for pin assignments and signal functions for the
parallel interface.)
Serial Cables
If you install an optional Type B interface in the printer slot, you must use an RS-232C null
modem cable.
-,
The cable configuration for connecting the printer serially to a g-pin (AT-type) computer
connector is shown in the figure below.
Printer
side
25-pin to Spin Serlal Cable
Computer
Sick
2m
J
,l FKS
.2 RXD
3 RXD
4
3 TXD
2 +5 SGND
7 SGND.
*6 CTS
,8 DCD
20 DTR

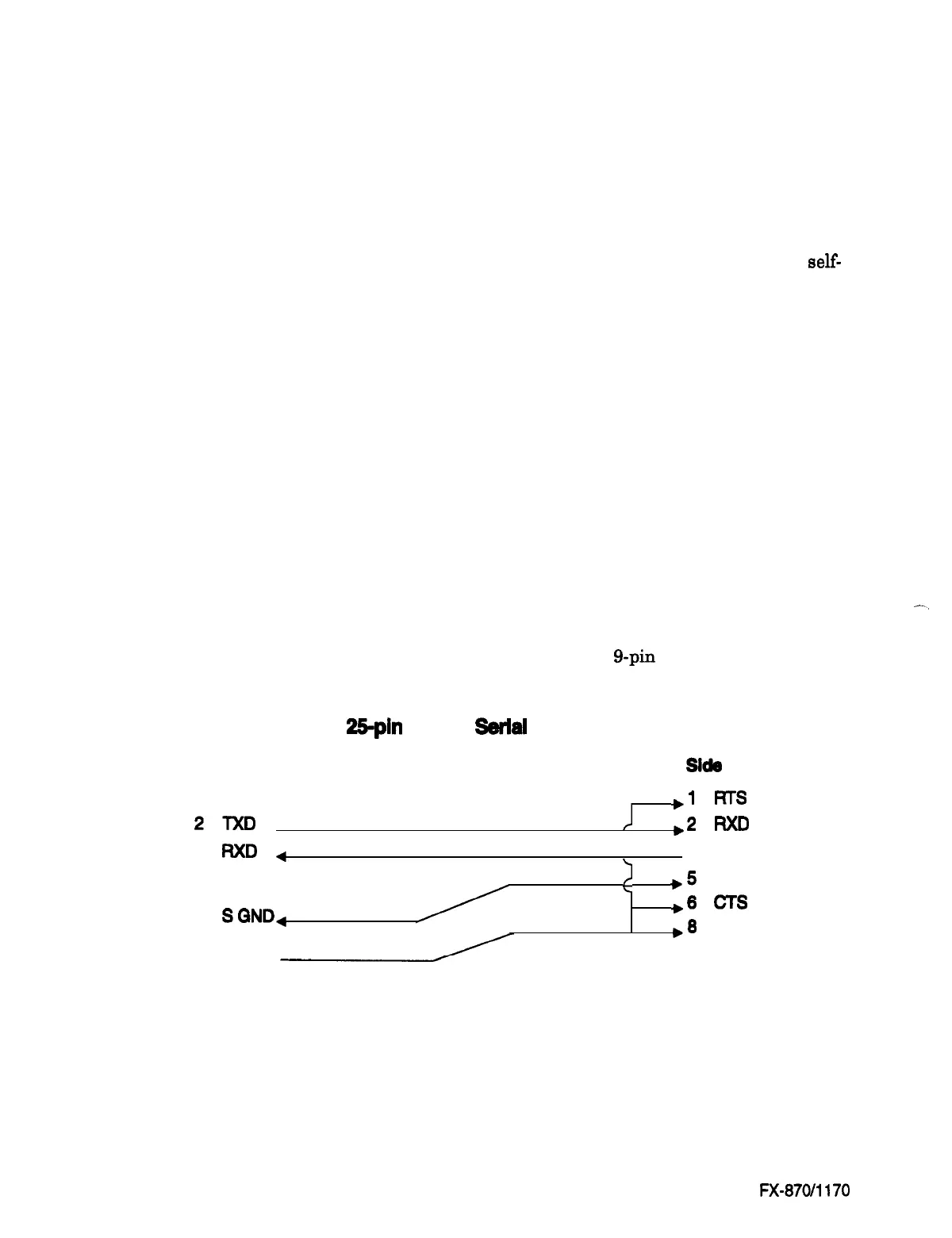

Figure 2-1. Serial Cable Configuration to a O-Pin Computer Connector
