Epson FX-870 Service Manual

Disassembly and Assembly
Disassembling the PF Gear Train
1. Remove the paper guide assembly, top cover, front cover, paper eject cover, and tractor unit.
(See page 4-5.)
2. Remove the panel unit. (See page 4-6.)
3. Remove the upper housing assembly. (See page 48.)
4. Remove the printer mechanism. (See page 4-Q.)
5. Remove the CR motor assembly. (See page 4-12.)
6. Remove the PF motor assembly. (See page 4-13.)
7. Remove the FFC cables from the right sub fkame of the printer mechanism, and then remove
the two CBS (M3x8) screws securing the right sub frame.
8. Remove the right sub frame.

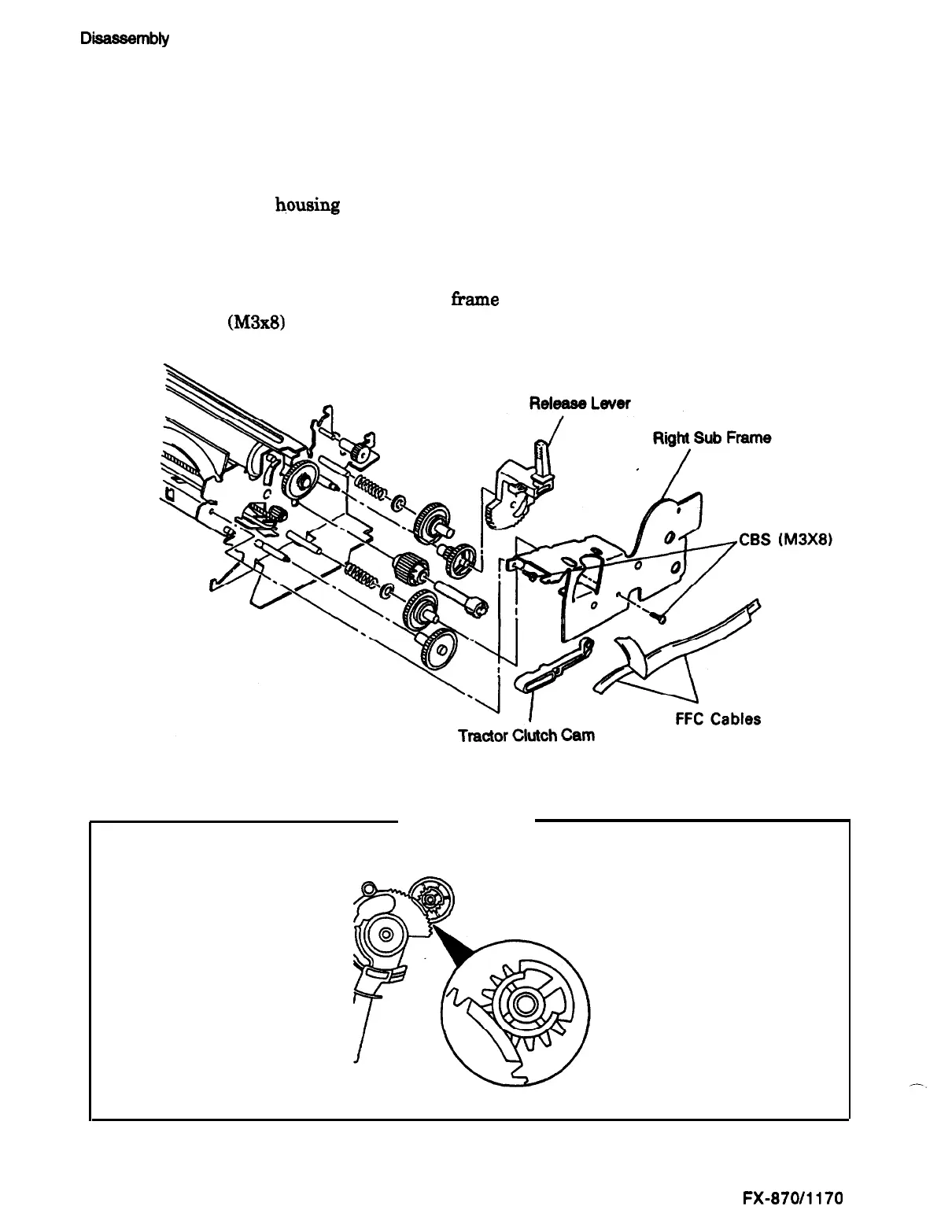

Figure 4-13. Disassembling the PF Gear Train
Assembly Note
Be sure to mesh the release lever with the mechanism properly.
Figure 4-14. Positioning the Release Lever for Insertion
4-14
Epson FX-870/1170
