Troubleshooting
Sensor Locations

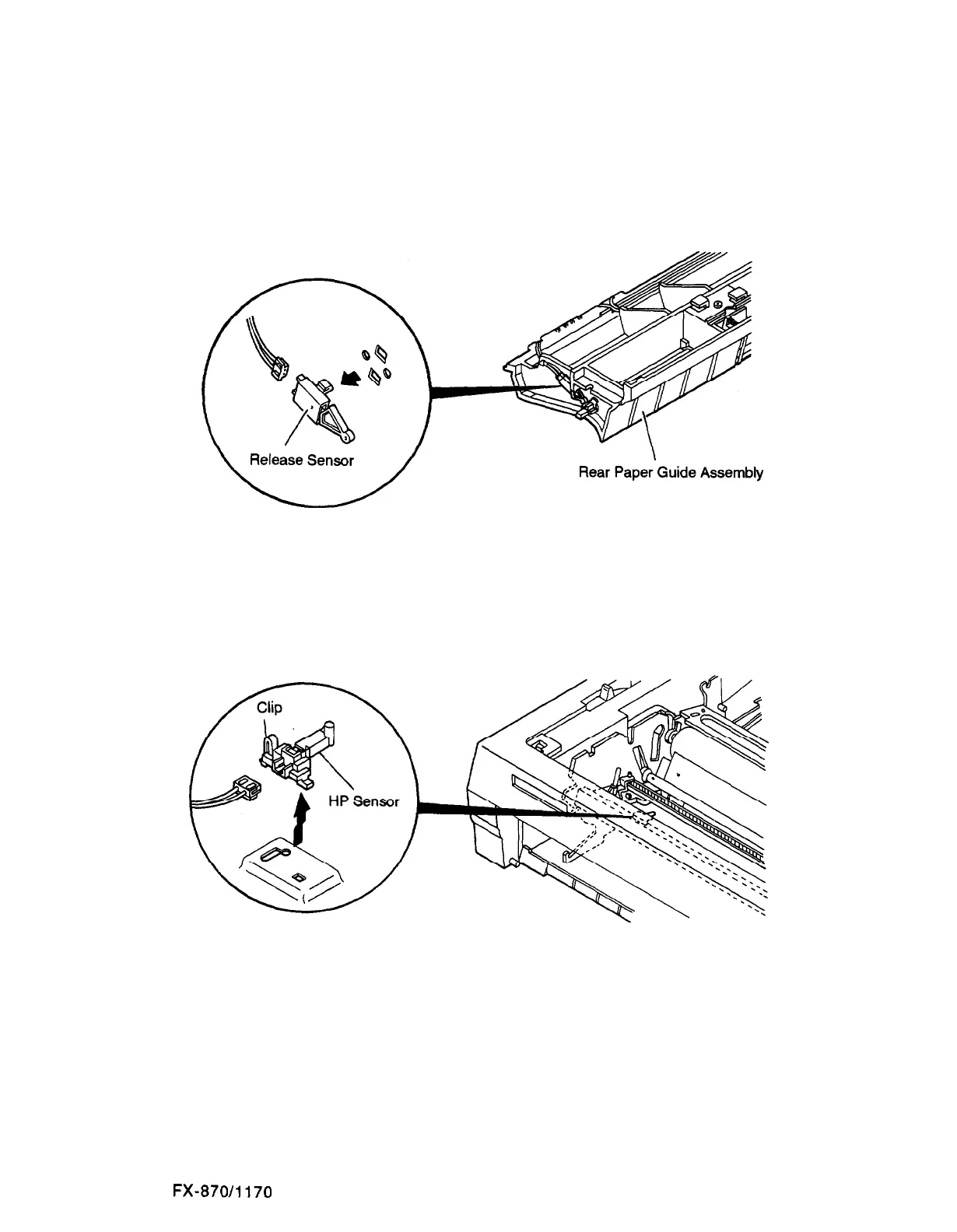

The illustrations below show the locations of sensors in the printer mechanism.
Figure 3-3. Release Sensor
Figure 3-4. Home Position Sensor
Epson
FX-870/1170
3-19
