Printer Features
Printer Mechanism

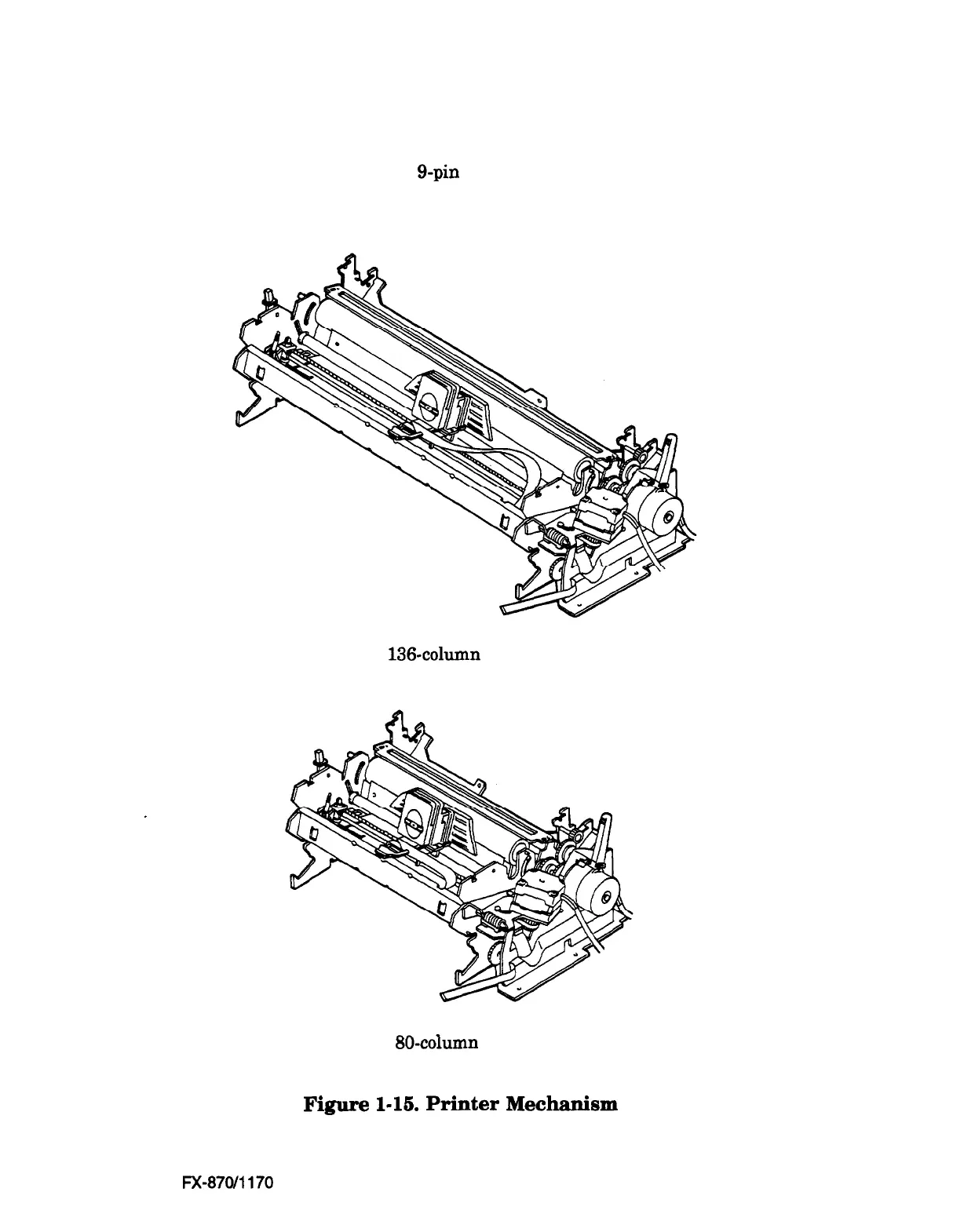

The printer mechanism consists of a g-pin impact dot head, a carriage mechanism,
a carriage motor, a paper feed mechanism, a paper feed motor, a ribbon feed
mechanism, and various sensors.
136-column
model
80-column
model
Figure
l-16.
Printer
Mechanism
Epson
FX-870/1170
1-31
