Epson FX-870 Service Manual

Disassembly and Assembly
Notes for Unit Removal and Installation
This section describes the procedures for disassembling and assembling the main components of
the printer. Generally, you can install a component in the printer simply by reversing the procedure
for removing the component. Therefore, this chapter does not describe assembly procedures in most
cases. If necessary, special notes on assembling or adjusting a component are given at the end of
the description of each procedure. Be sure to follow the instructions in these notes.
WARNING
Before disassembling, assembling, or adjusting the printer, disconnect the power supply
cable from the AC power outlet. Failure to do so may cause physical injury. The power
switch is wired in the secondary circuitry. Therefore, the printer’s primary circuitry
remains live even after the power switch is turned off.
CAUTION
Before disassembling any part of the printer, remove the paper and the ink ribbon. Also
disconnect the interface cable.

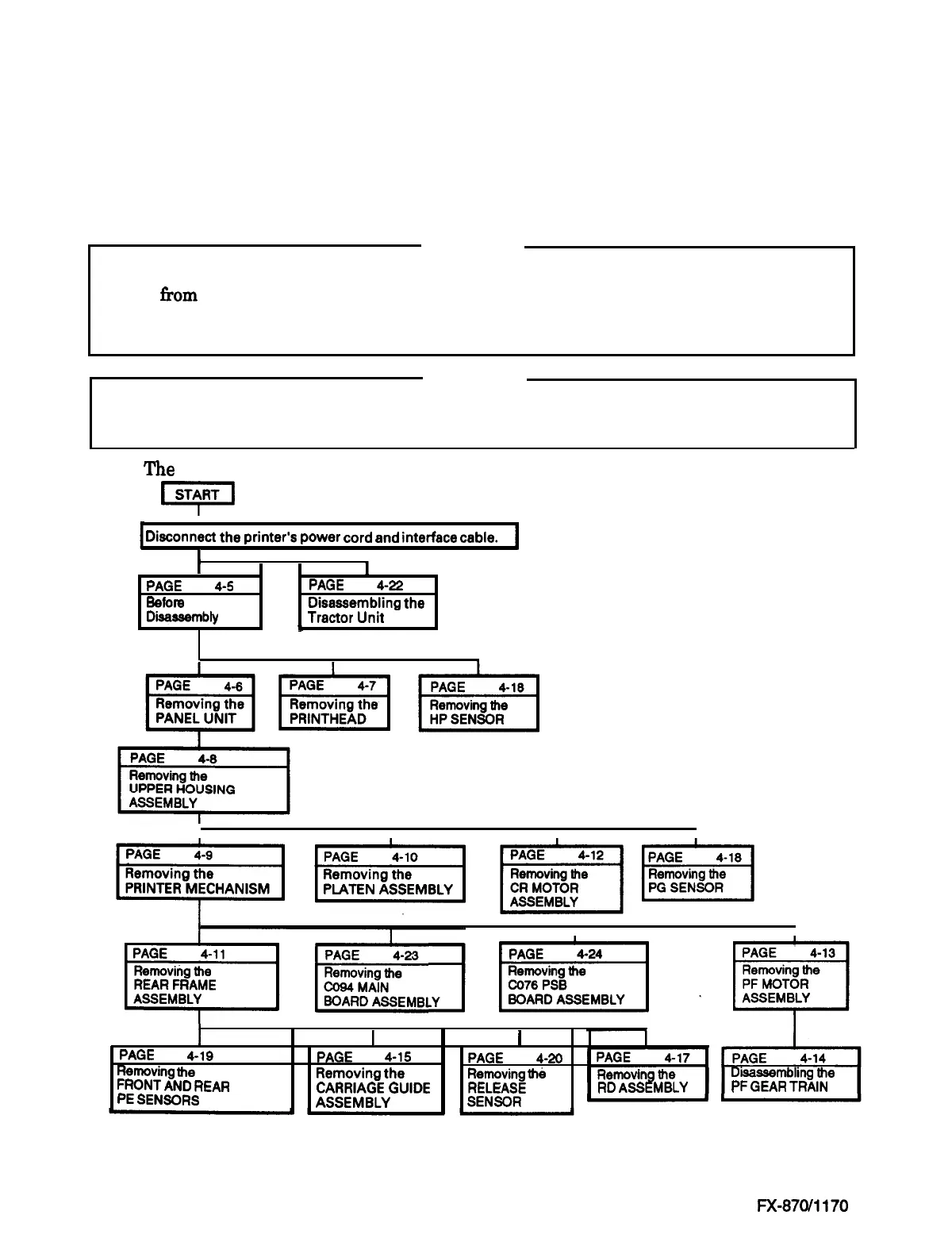

Note: The flowchart below shows the order in which you need to disassemble the printer.
yq
I
Disconnect the printer’s power cord and interface cable.
I
I
PAGE 4-5
PAGE 4-22
Before
Diimbly
Disassembling the
Tractor Unit
.
I
I
PAGE
4-19
PAGE
4-15
Removing the
FRONT AND REAR
Removing the
PE SENSORS
CARRIAGE GUIDE
ASSEMBLY
I
PAGE 4-20
Removing tfk
RELEASE
SENSOR
RD ASSEMBLY
Disassembling the
PF GEAR TRAIN
4-4
Figure 4-1. Flowchart for Disassembling the Printer
Epson FX-870/1170
