Epson FX-870 Service Manual

Disassembly and Assembty
Removing the PF Motor Assembly
-
1. Remove the paper guide assembly, ribbon, top cover, front cover, paper eject cover, and tractor
unit. (See page 4-5.)
2.
Remove the panel unit. (See page 4-6.)
3. Remove the upper housing assembly. (See page 4-8.)
4. Remove the printer mechanism. (See page 4-9.)
5. Set the release lever to the vertical or forward position.
6. Remove the FFC cables and then the two CBS(M3x8) screws securing the PF motor assembly.
7. Remove the PF motor assembly.
Lever Positions
(This position does not release
the PF motor assembly)
(M3X8)

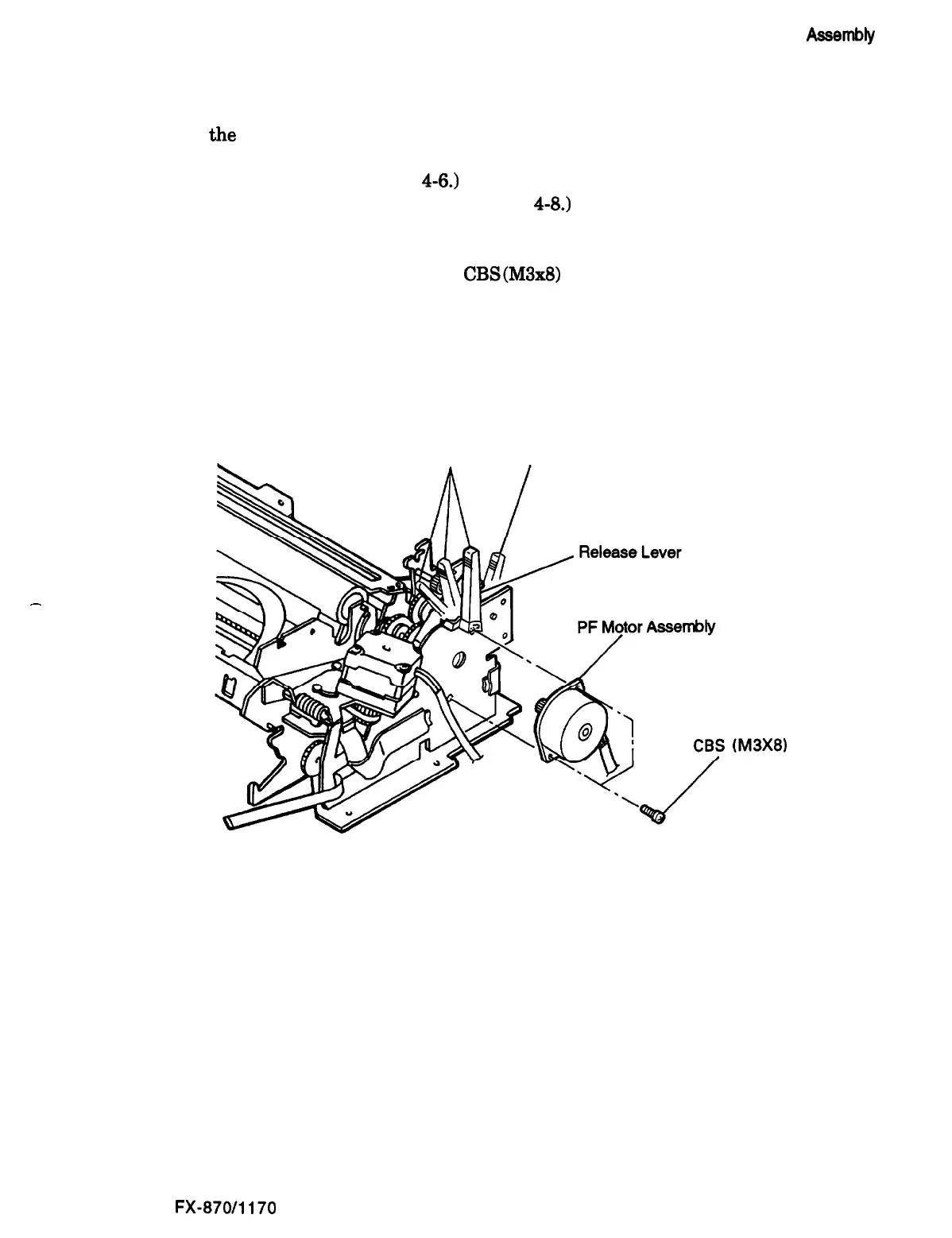

Figure 4-12. Removing the PF Motor Assembly
Epson FX-870/1170
4-13
