Epson FX-870

Disassembly and Assembly
Items to Remove Before Disassembling the Printer
1.
Remove the paper guide assembly, ribbon, top cover, front cover, paper eject cover, and tractor
unit.

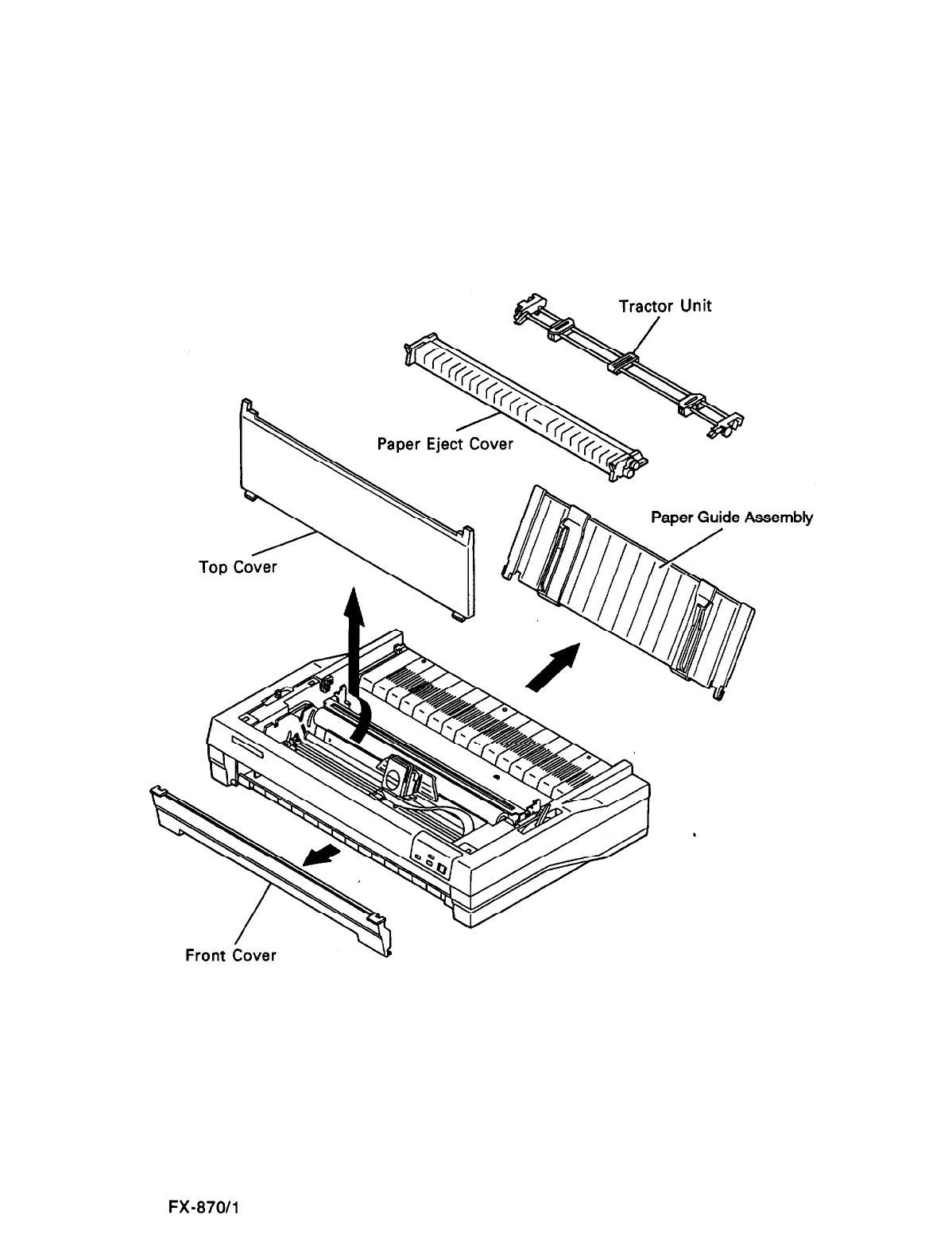

Figure 4-2. Removing the Paper Guide Assembly
Note: Remove the paper eject cover and the tractor unit by pushing and releasing the hooks
at both sides.
When remounting them, be sure to snap these hooks on the projecting
parts.
