Epson LX 300+II Reference Guide

48 Using the Printer Software

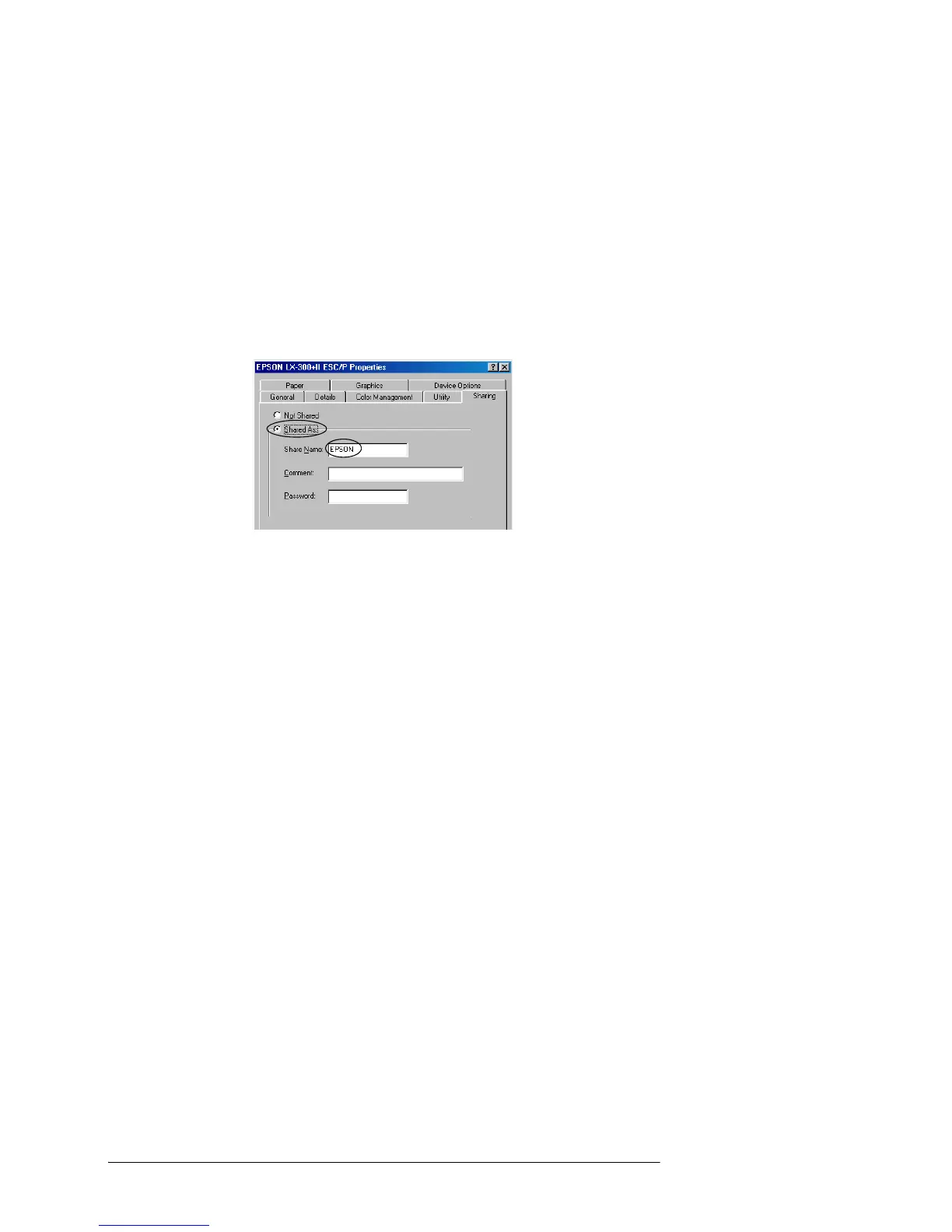

9. Select Shared As, type the name in the Share Name box, and
click OK. Type a Comment and Password if needed.
Note:
❏ Do not use spaces or hyphens for the share name, or an error
may occur.
❏ When sharing the printer, be sure to set EPSON Status
Monitor 3 so that the shared printer can be monitored on the
server. See “Setting up EPSON Status Monitor 3” on
page 43.
10. Follow the instructions on page 50 to set up the client
computers so they can use the printer on a network.
Windows Vista, XP, 2000, or NT 4.0
Follow the steps below to set up the printer server in Windows
Vista, XP, 2000, or NT.
Note:
You must access Windows Vista, XP, 2000, or NT as the
administrator of the local machine.
1. In Windows Vista, click Start > Control Panel > Hardware
and Sound, and then click Printers.
In Windows XP Professional, click Start > Settings >
Printers and Faxes.

Epson LX 300+II Specifications

Power

rated voltage	120V AC
input voltage range	99 to 132V, 198 to 164V
rated frequency range	50 to 60 Hz
input frequency range	49.5 to 60.5 Hz
power consumption	Approx. 23W (ISO/IEC 10561 Letter Pattern)

Performance

print speed high speed draft	337 cps (12 cpi)
print speed draft	225 cps (10 cpi)
print speed near letter quality	56 cps (10 cpi)
sound level	49 dBA (ISO 7779 pattern)
mtbf	6, 000 POH (25% duty cycle)
print head life	400 million characters
ribbon life	3 million characters (draft, 10 cpi, 14 dots/character)

Weight and Dimensions

carton dimensions	14.5" x 17.6" x 8.6" (W x D x H)
carton weight	12.10 lb
height	6.26" (159 mm)
width	14.42" (366 mm)
depth	10.84" (275 mm)
weight	9.7 lb (4.4 kg)
