Epson LX 300+II Reference Guide

Using the Printer Software 49
In Windows XP Home Edition, click Start > Printers and
Faxes.
In Windows 2000 or NT, click Start > Settings > Printers.

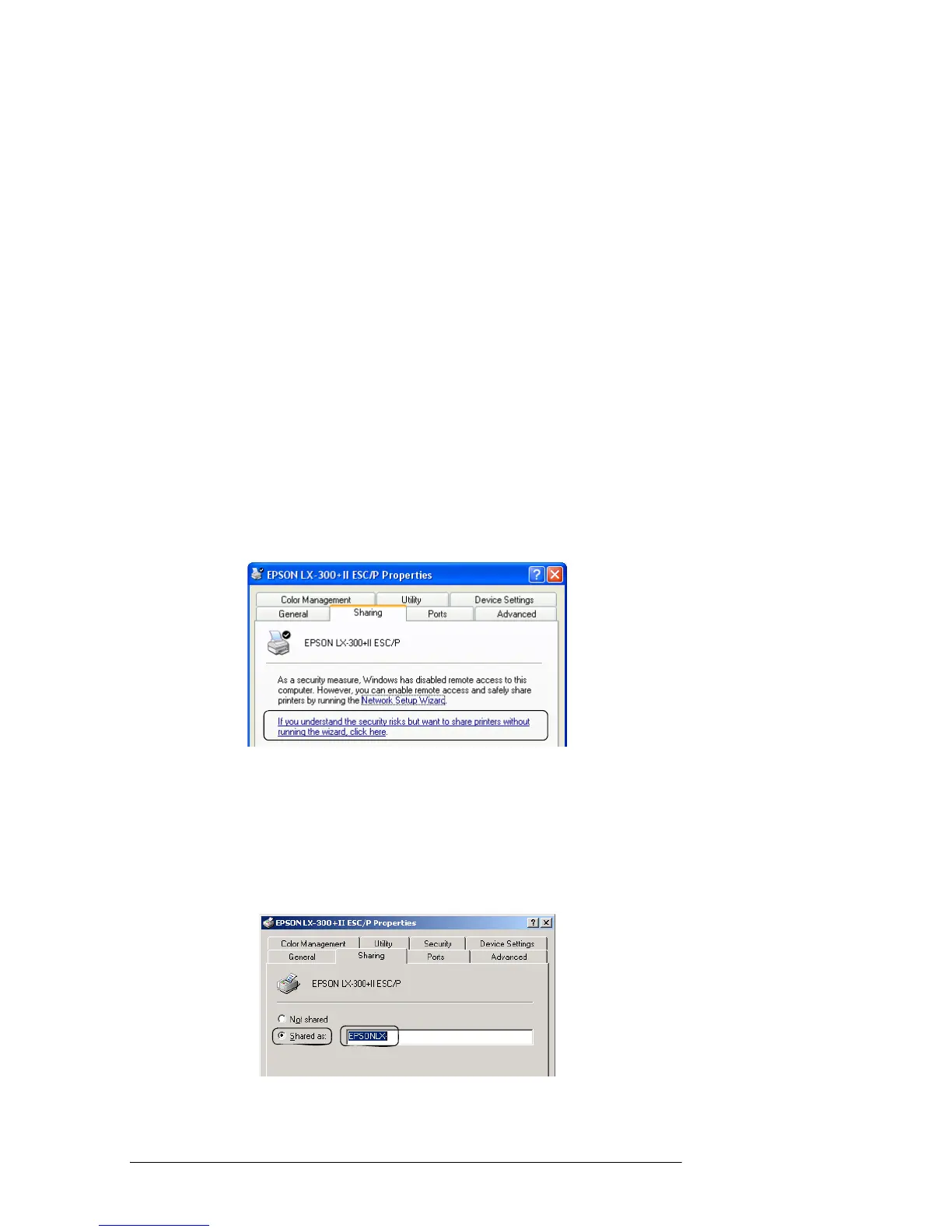

2. Right-click your printer icon, and click Sharing from the
menu.
If you see the following message in Windows XP, click
either Network Setup Wizard or if you understand the
security risks but want to share printers without running
the wizard, click here.
In either case, follow the on-screen instructions.
3. In Windows 2000, select Shared as. In Windows NT, select
Shared. Then type the name in the Share name box and click
OK.

Epson LX 300+II Specifications

Power

rated voltage	120V AC
input voltage range	99 to 132V, 198 to 164V
rated frequency range	50 to 60 Hz
input frequency range	49.5 to 60.5 Hz
power consumption	Approx. 23W (ISO/IEC 10561 Letter Pattern)

Performance

print speed high speed draft	337 cps (12 cpi)
print speed draft	225 cps (10 cpi)
print speed near letter quality	56 cps (10 cpi)
sound level	49 dBA (ISO 7779 pattern)
mtbf	6, 000 POH (25% duty cycle)
print head life	400 million characters
ribbon life	3 million characters (draft, 10 cpi, 14 dots/character)

Weight and Dimensions

carton dimensions	14.5" x 17.6" x 8.6" (W x D x H)
carton weight	12.10 lb
height	6.26" (159 mm)
width	14.42" (366 mm)
depth	10.84" (275 mm)
weight	9.7 lb (4.4 kg)
