Maintenance 3. Covers
S5 Rev.5 93

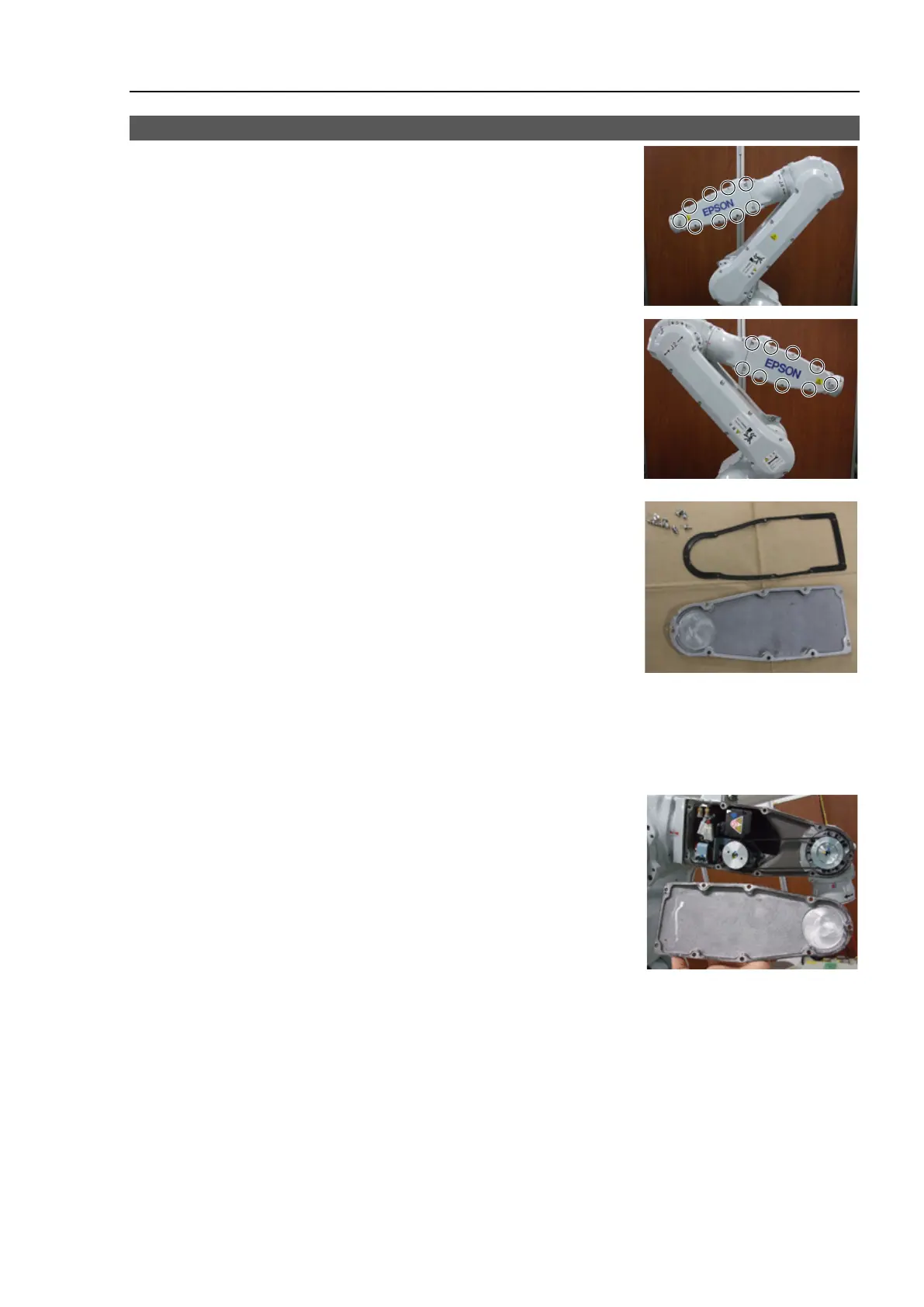

3.4 Arm #4 Cover
the bolts and then remove the Arm #4 Cover.
Tool : Hexagonal wrench (width across flats: 3 mm)
Button bolt : 18-M4×10 (with washer)
Tightening torque : 1.4 N·m (0.14 kg·m)
over on each side.
Remove the
cover(s) as required in maintenance work.
cleanroom-model:
A gasket (R13B031274) is attached.
Removal
Remove the gasket with the cover.
Installation
Attach the gasket between the cover and manipulator.
You can’t reuse the gasket. Be sure to use a new gasket.
-model:
Liquid gasket (R13B031201) is applied.
Removal
Remove caked-on liquid gasket residue with
scraper or similar tool.
Installation
Apply liquid gasket on the contact surfaces of the cover and manipulator.
Wipe off any excess liquid gasket with a wiping cloth treated with alcohol.
