Maintenance 12. Calibration
S5 Rev.5 193

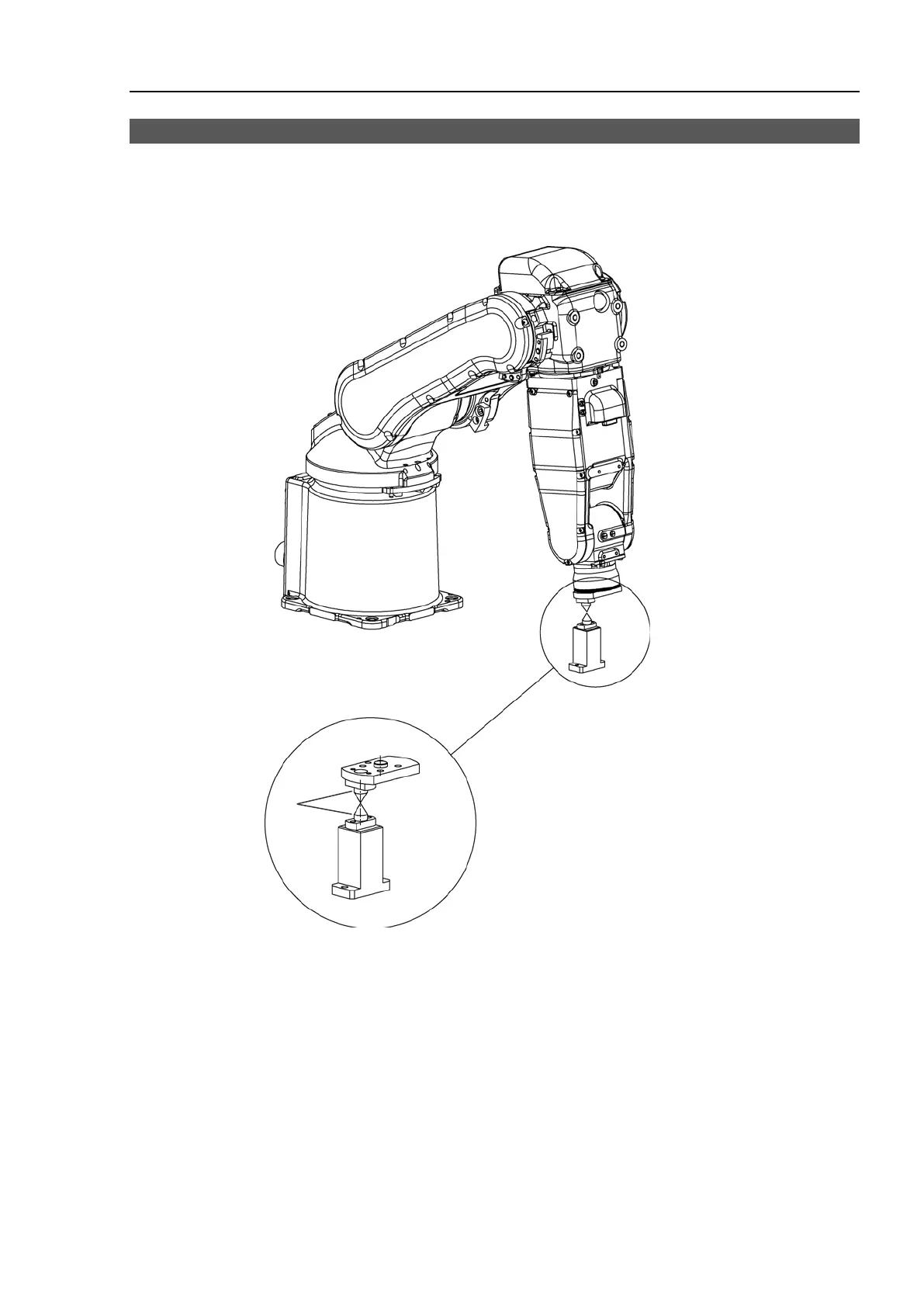

12.3 Calibration Jig
Jigs such as the one described in this section are necessary in order to set the reference
points for calibration when installing the Manipulator. (In practice, there are instances
where your end effector can be used.)
(B)
(A)
(C)
