Maintenance 11. Replacing the LED Lamp
S5 Rev.5 187
Removal
(1)
Remove the
Arm #3 Cover.
For details, r
efer to the Maintenance 3.3 Arm #3 Cover.
(2)

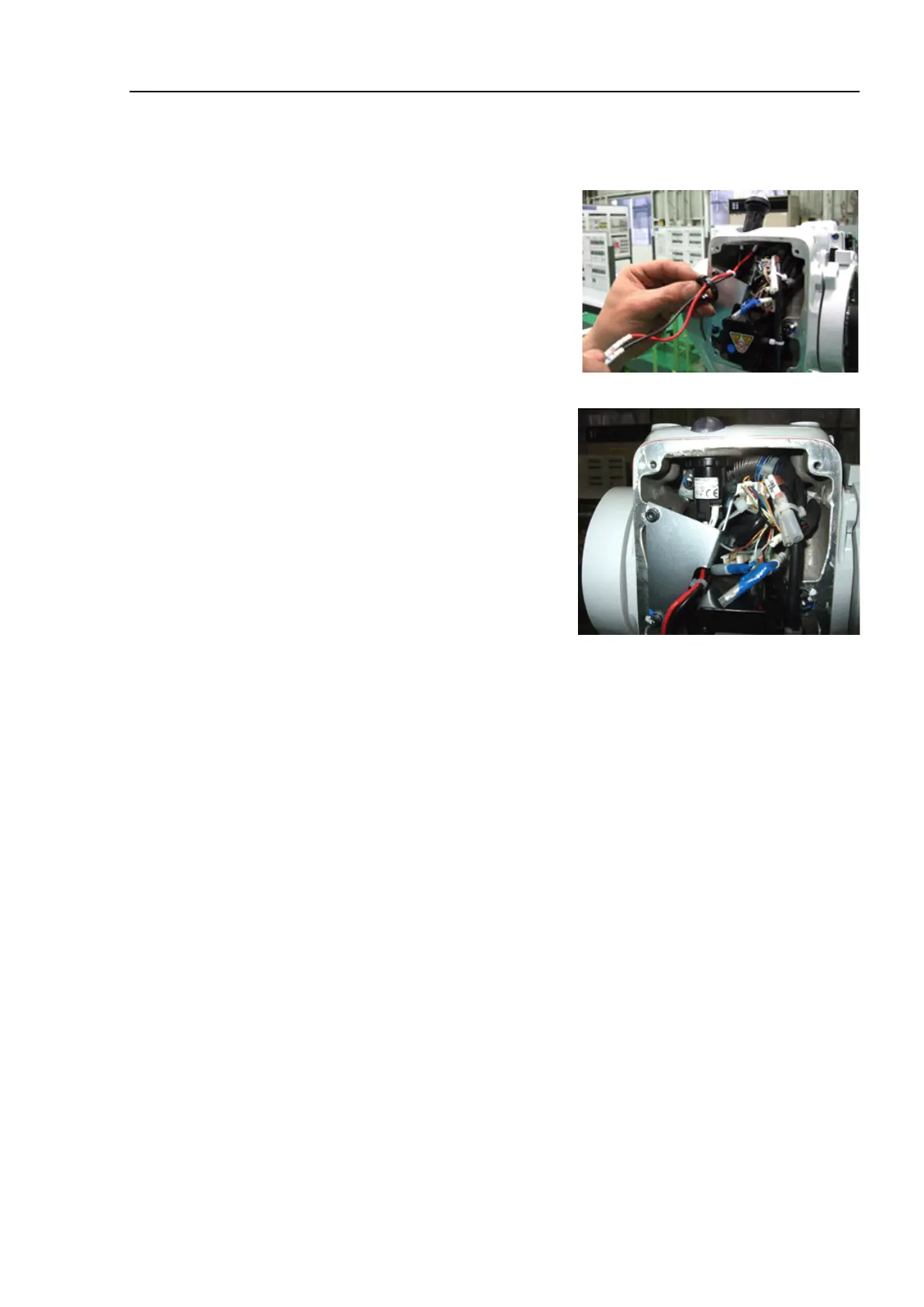

Remove the LED lamp connectors from
inside of the manipulator.
(3)
Loosen the nut and remove the LED
l
amp.
Installation
(1)
Mount
the LED lamp and fasten it with
the nut.
(Adjust the LED
lamp so that the CE
label is in the front
side.)
(
2)
Mount
the LED lamp connector.
(3)
Mount the Arm #3
Cover.
For details, r
efer to the Maintenance 3.3 Arm #3 Cover.
For
protection-model
When
the Manipulator is a protection-model,
liquid gasket (R13B031201) was
applied on the
LED mounting surface.
Removal
The LED lamp is secured with liquid gasket. There is a risk that
the LED lamp
gets broken in removal. Replace the LED lamp with great caution.
Installation
Before installing the LED
lamp, apply liquid gasket on the contact surfaces of the
LED lamp and Arm #3.
Wipe excess liquid gasket with a wiping cloth treated with alcohol.

NOTE
