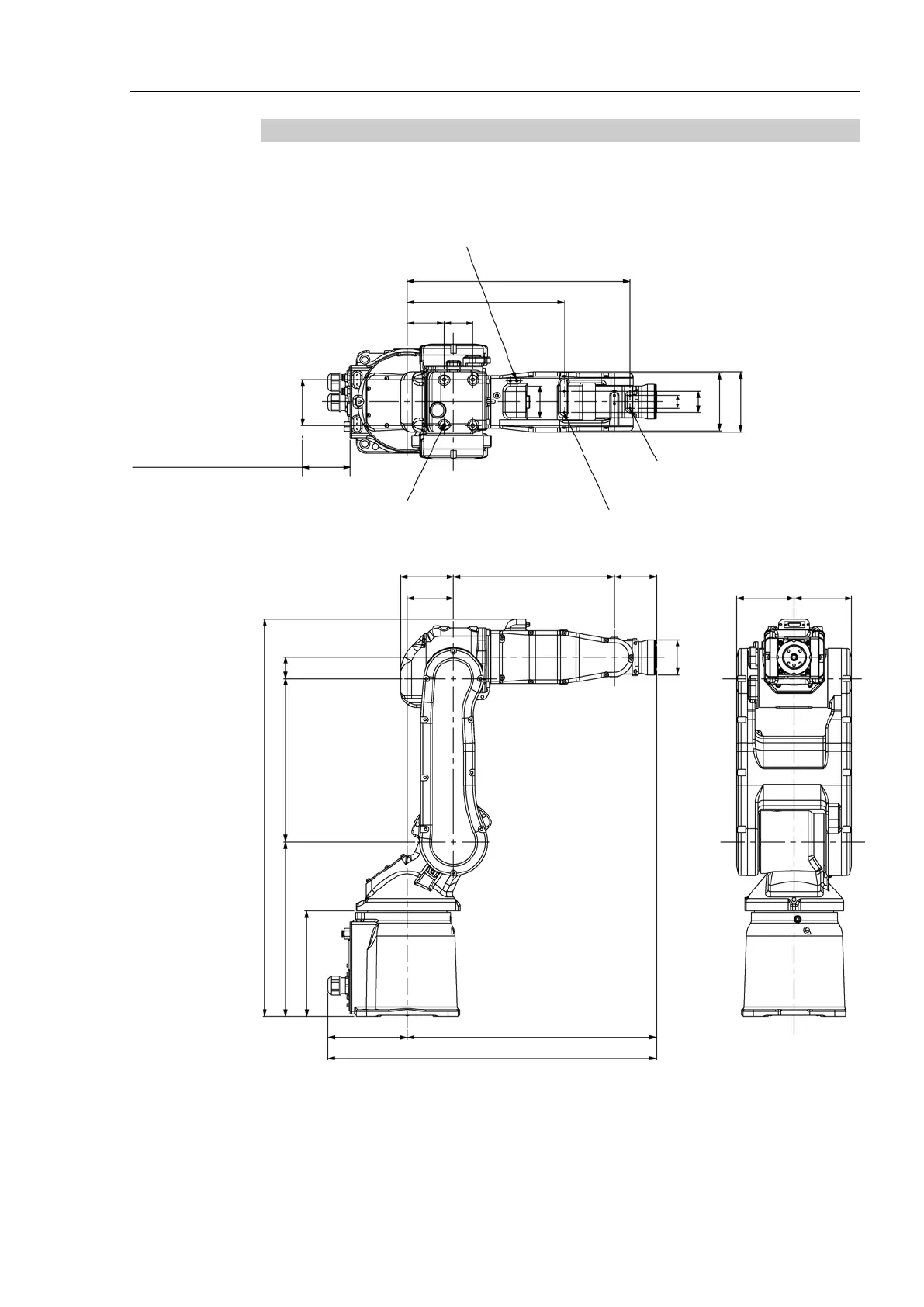

Outer Dimensions
S5-A701** [Unit: mm]
87
298
59
114
330
310
100
305
88
109
109
2×2 M4 Tap P0.7Depth 8 mm
(Front & Back)
40
66
199
150.2
70
25
623.2
55
423
473
90 or more
40
110
80
752
4-M8 Tap P1.25 Depth: 16mm
2-M4 Tap P0.7 Depth: 8mm
Air Supply Opening
M5 Tap
with cover plug
Space
for cables
