Epson ProSix S5 Series User Manual

Setup & Operation 3. Environment and Installation
S5 Rev.5 45

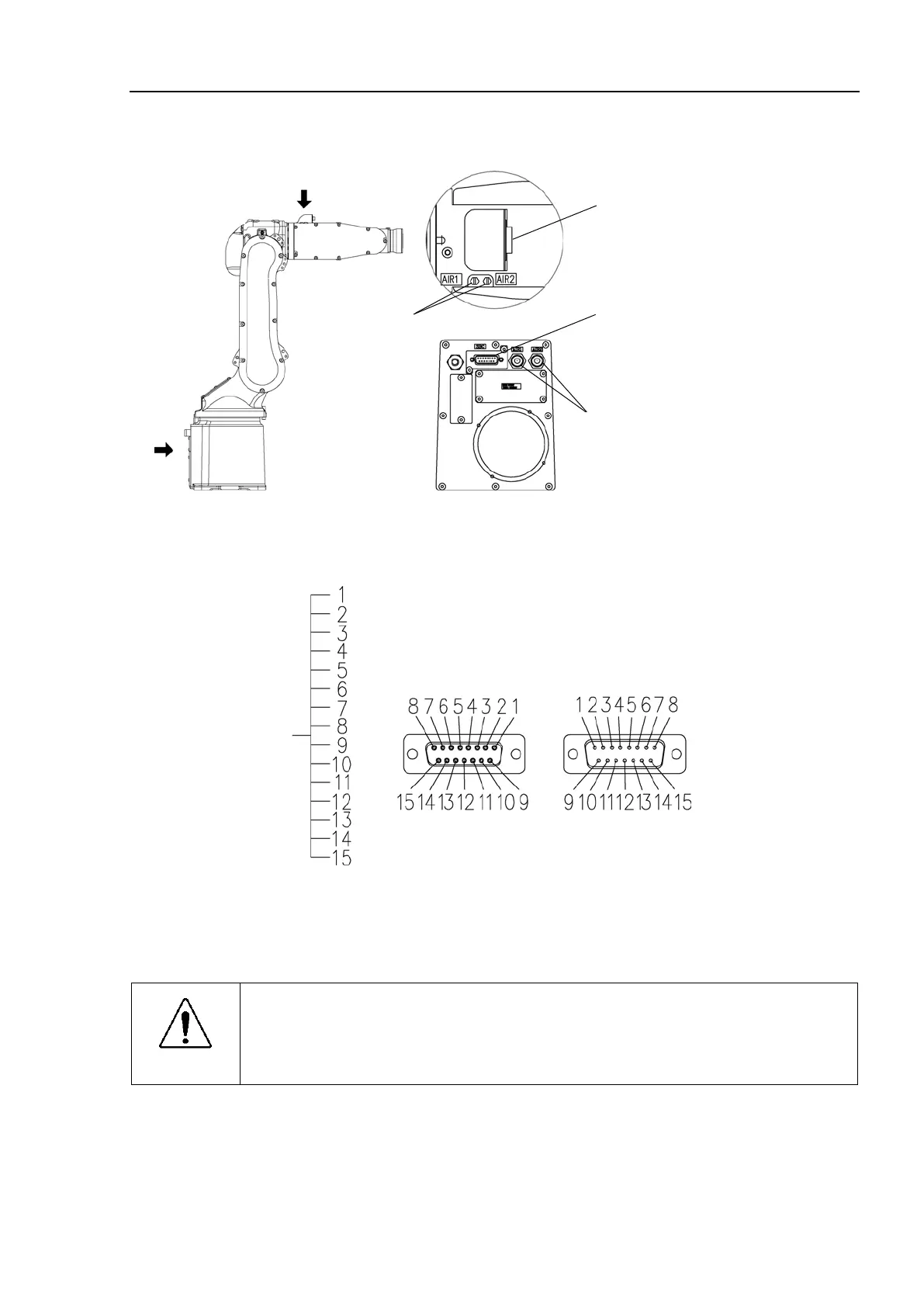

User Wires and Pneumatic Tubes
User Cable Connector:
JAZ
-15P-3 (D sub) *JST*
Prepare the connector
JAZ-15S-3 (D sub) *JST*.
A
B
Air Supply Opening
M5 Tap
with cover plug
User Cable Connector:
JAZ
-15S-3 (D sub) *JST*
Prepare
the connector
JAZ
-15P-3 (D sub) *JST*.
Air Supply Opening
Applicable tube outside diameter:
φ 6 mm
View A
View B
Numbers of Pins in Use
Pin
JAZ
-15S-3
(Female pin)
JAZ-15P-3
(Male pin)
B side
A side
The same pin number (1-15) of two connectors is connected in the lead line of single 0.2
mm
2
.
When the Manipulator is a Protection-model, be aware of the followings.
CAUTION
■
Be sure to attach the cap on the user cable connector when not using the
connector. Using
the
Manipulator without the cap may cause equipment
damage to and/or malfunction of the Manipulator as dust or
oily smoke gets into
the connector.
