Maintenance 7. Option Parts Replacement Procedures
RC700 Series Maintenance Rev.3 39
safety door, latch).
RC700 Series Manual 11. EMERGENCY

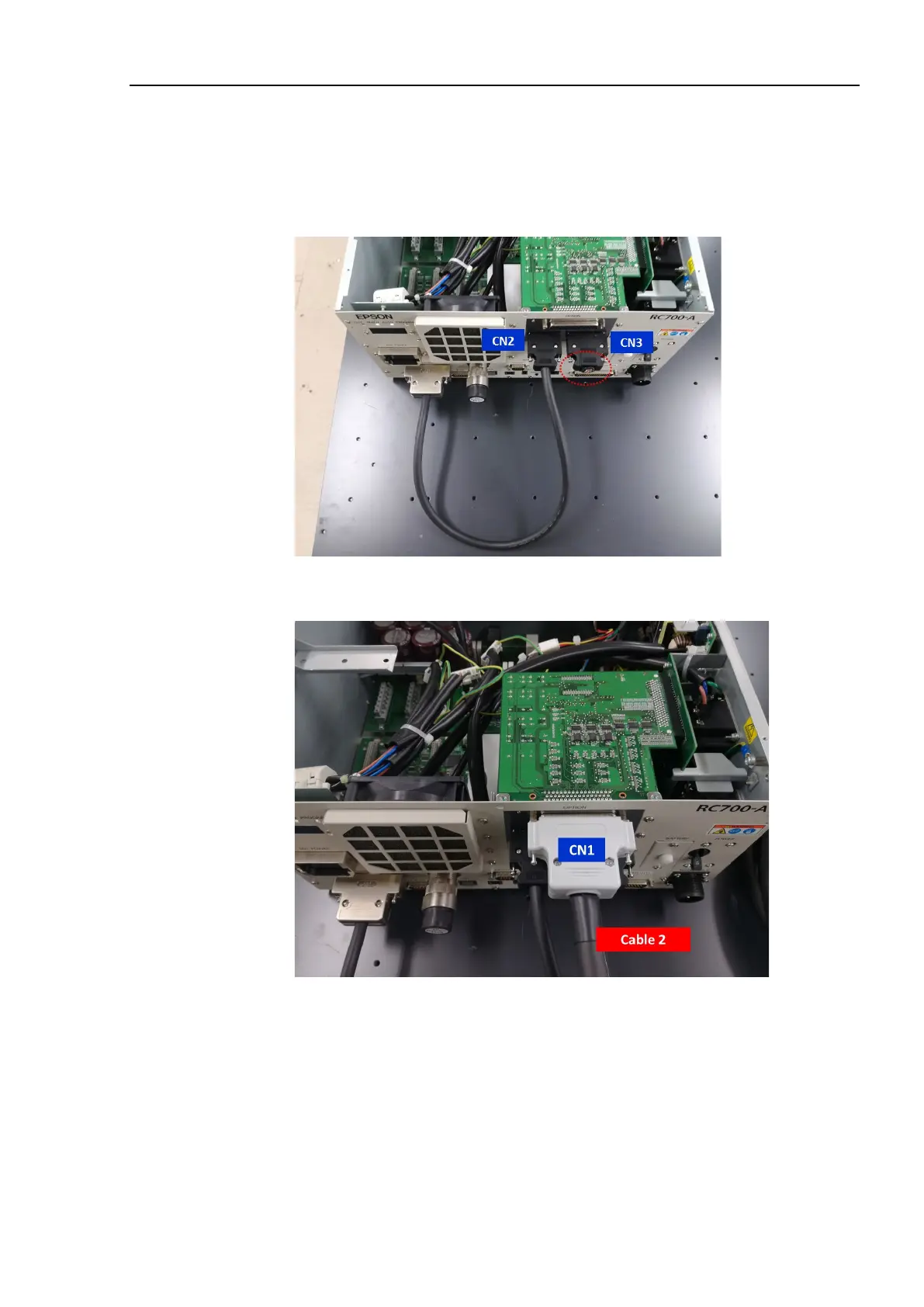

(8) Connect “CN3”.
Use a cross-point screwdriver to fasten the connector (CN3).
(9) Connect “Cable2 CN1”.
Use a cross-point screwdriver to fasten the connector (CN1).
(10) Mount the Top Panel. (Mounting screw ×6)
(11) Connect “Cable2 CN4” to the IMM.
(12) Connect the power plug. Turn ON the Controller and make sure that the Controller
starts properly without any vibration or abnormal noise.
