Epson RC700 Series Maintenance Manual

Maintenance 8. Maintenance Parts Replacement Procedures
RC700 Series Maintenance Rev.3 51

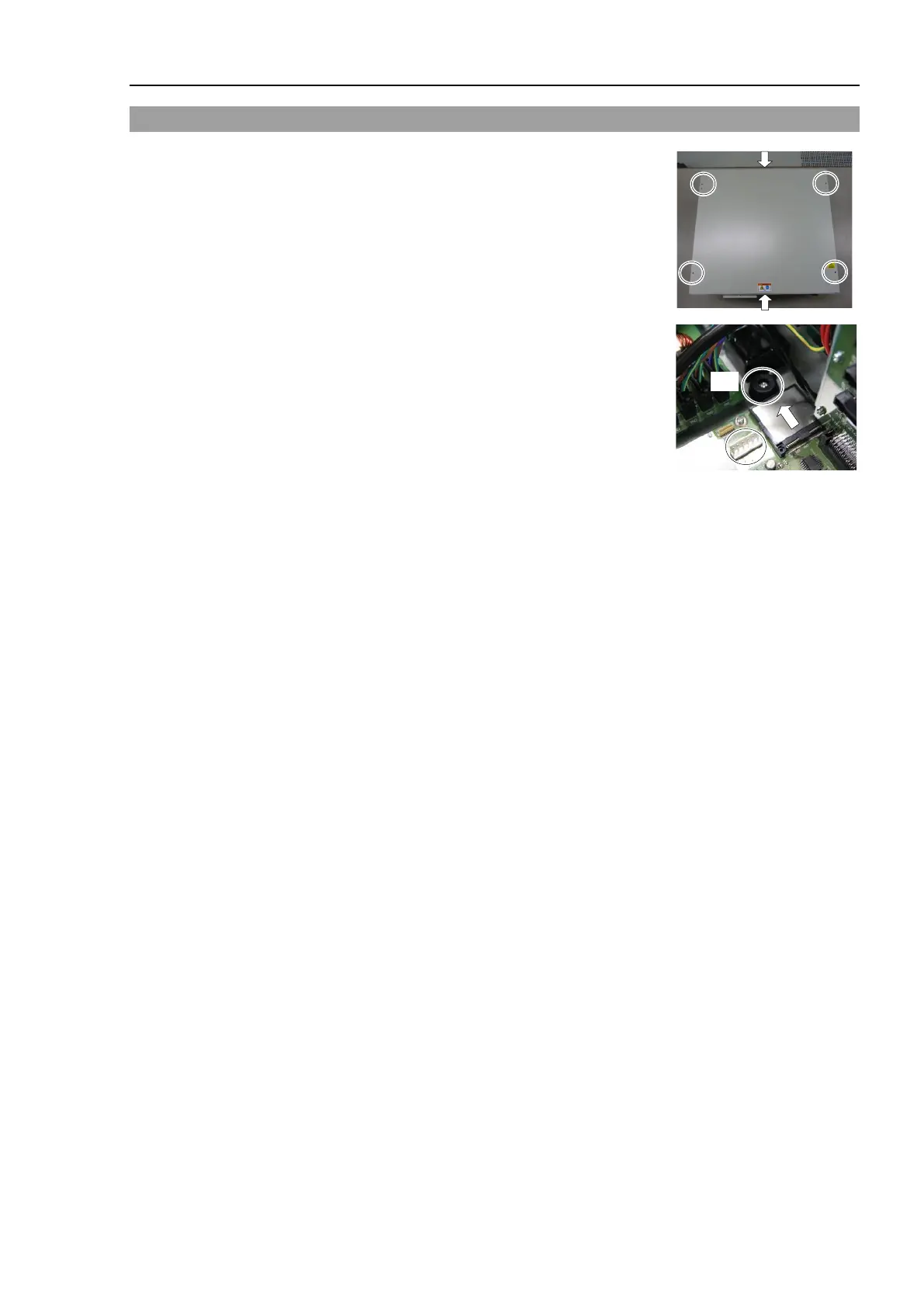

8.4 CF (Compact Flash)
CF Removal
(1)
Turn OFF the
Controller.
(2)
Disconnect the power plug
.
(3)
Remove
the Top Panel. (Mounting screw ×6)
(4)
Remove the connector (CN39).
(4)
(5)
(5)
Remove the CF mounting screw and
the rubber.
(6)
Pull the CF toward the direction of the arrow in the
picture.
CF Installation
(1)
Insert a new CF toward the opposite direction of the arrow in the picture above.
(2)
Tighten
the CF mounting screw (×1) and the rubber.
(3)
Connect the connector
(CN39).
(4)
Mount the Top P
anel. (Mounting screw ×6)
(5)
Connect the power plug
. Turn ON the Controller and make sure that the Controller
starts properly without any vibration or abnormal noise.

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
