Epson RC700 Series Maintenance Manual

Maintenance 8. Maintenance Parts Replacement Procedures
66 RC700 Series Maintenance Rev.3

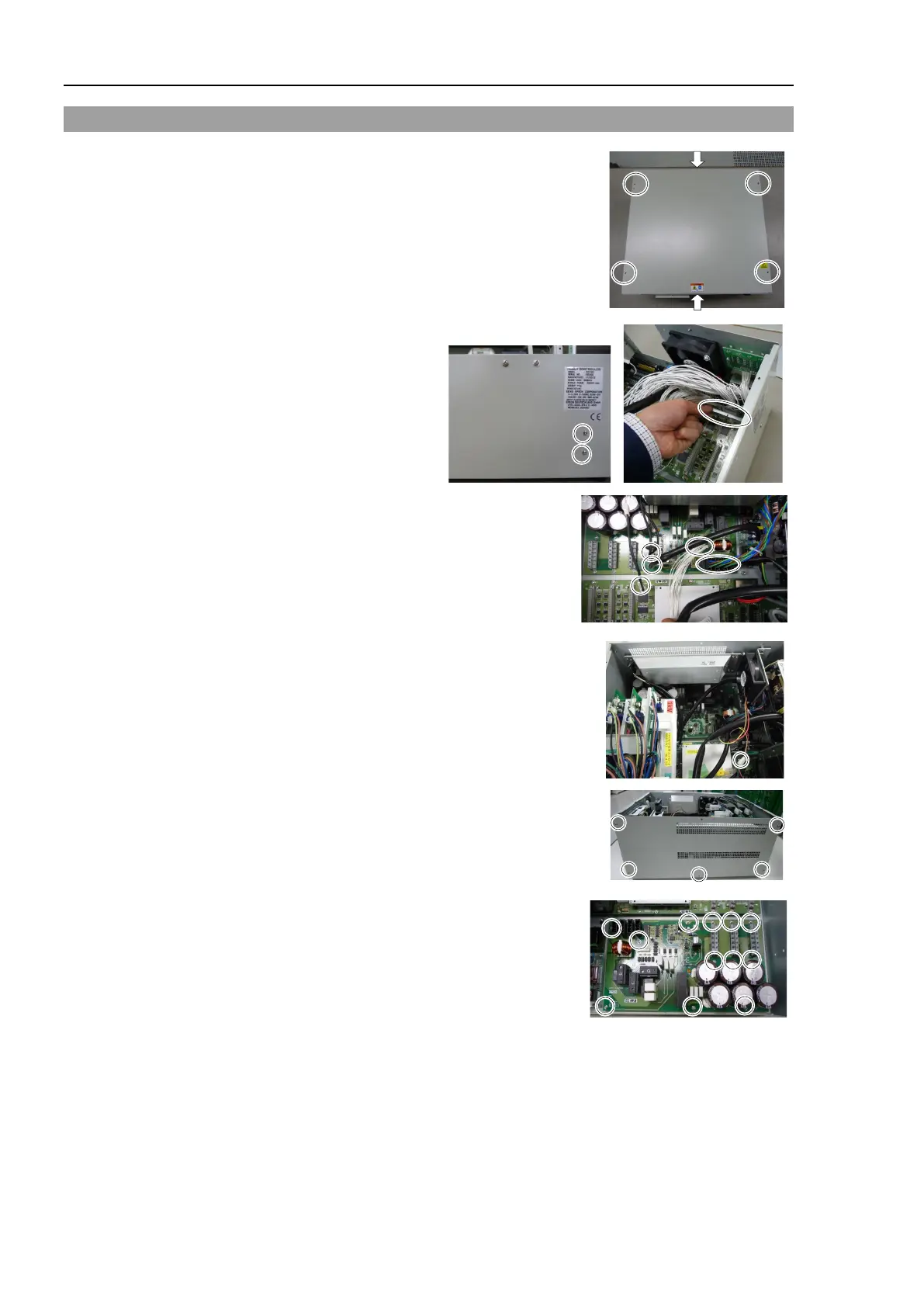

8.9 DPB
DPB
Removal
(1)
Turn OFF the
Controller.
(2)
Disconnect
the power plug.
(3)
Remove
the Top Panel. (Mounting screw ×6)
(4)
Remove the
MDB.
Refer to
8.5 MDB
(5)
Remove the MDB clamp 3.
(Mounting screw ×2)
(6)
Remove eight connectors from the DPB.
(7)
RC700
-A, RC700DU-A
Remove the fan 2 extension connector.
(8)
RC700
-A, RC700DU-A
Remove the rear plate from the body.
(Mounting screw ×5)
(9)
Remove the DPB mounting screws.
(Mounting screw ×12)
(10)
Remove the DPB from the chassis.
