Epson RC700 Series Maintenance Manual

Maintenance 8. Maintenance Parts Replacement Procedures
RC700 Series Maintenance Rev.3 65

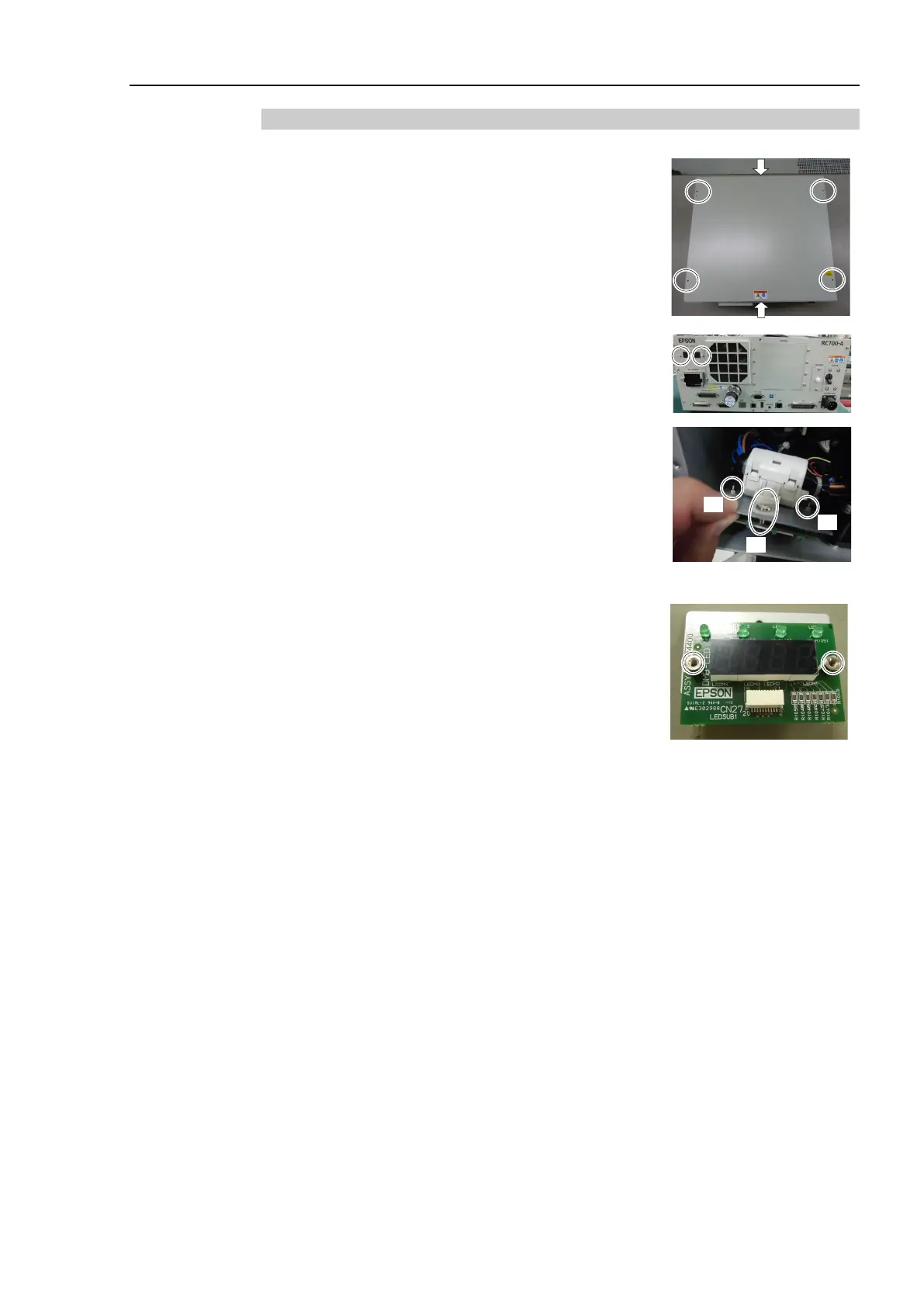

7.8.2 DMB-LED Board (RC700-A, RC700DU-A)
DMB
-LED Board
Removal
(RC700
-A,
RC700DU-A)
(1)
Turn
OFF the Controller.
(2)
Disconnect
the power plug.
(3)
Remove
the Top Panel. (Mounting screw ×6)
(4)
Remove the
DMB-LED board from the front panel.
(Mounting screw
×2)
(5)
Remove the ferrite core from the Support plate.
(Mounting screw
×1)
(5)
(7)
(7)
(6)
Disconnect the cables connected to the DMB
-LED
board.
(7)
Remove the
DMB-LED board from the support plate.
(
Nut ×2)
(8)
Remove the
stud bolt from the DMB-LED board.
(S
tud bolt ×4)
DMB
-LED Board
Installation
(RC700
-A,
RC700DU
-A)
(1)
Mount the
stud bolt to the DMB-LED board. (Stud bolt ×4)
(2)
Mount the
DMB-LED board to the support plate. (Nut ×2)
(3)
Connect the cable to the
DMB-LED board.
(4)
Mount the
ferrite core to the support plate. (Mounting screw ×1)
(5)
Mount the
DMB-LED board to the front panel. (Mounting screw ×4)
(6)
Mount the Top Panel. (Mounting screw
×6)
(7)
After connecting the power plug, turn
ON the Controller and check it works
normally without
vibration and abnormal sound.

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
