Epson RC700 Series Maintenance Manual

Maintenance 8. Maintenance Parts Replacement Procedures
62 RC700 Series Maintenance Rev.3
8.7 DMB-SUB Board
DMB
-Sub Board

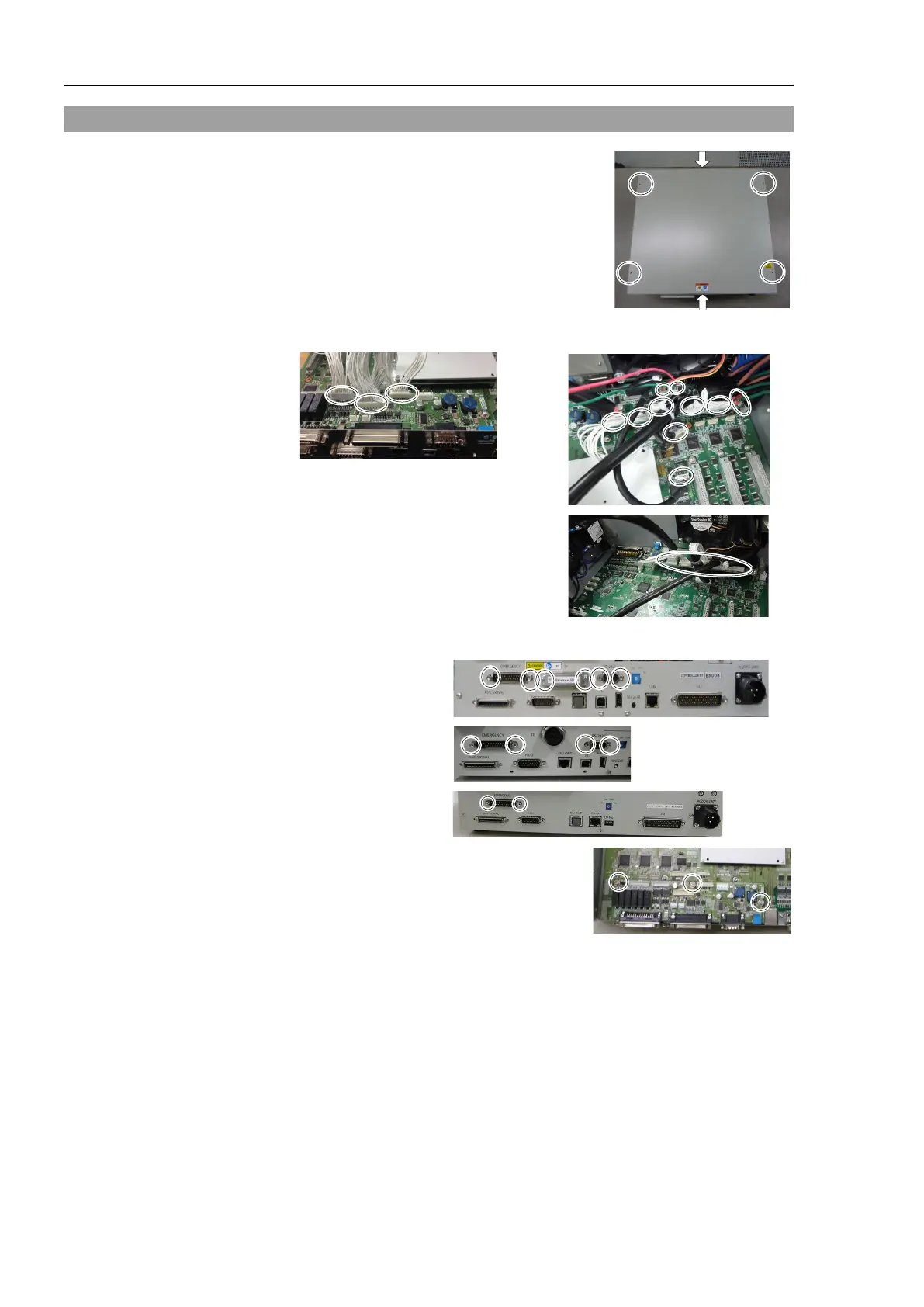

Removal
(1)
Turn OFF the Controller.
(2)
Disconnect the power plug
.
(3)
Remove
the Top Panel. (Mounting screw ×6)
(4)
Remove the cables from the DMB
-SUB board.
RC700
RC700-A
RC700
DU
RC700-DU-A
(5)
Remove the screws fixing the DMB
-SUB board to the front side plate.
RC700
RC700-
A
RC700
DU
RC700-DU-
A
(6)
Remove the DMB
-SUB Board from the DMB.
(Mounting screws ×3)
