7.3 Wall Mounting Option
The Control unit and Drive unit have a wall mounting option. This section describes
mounting procedure.

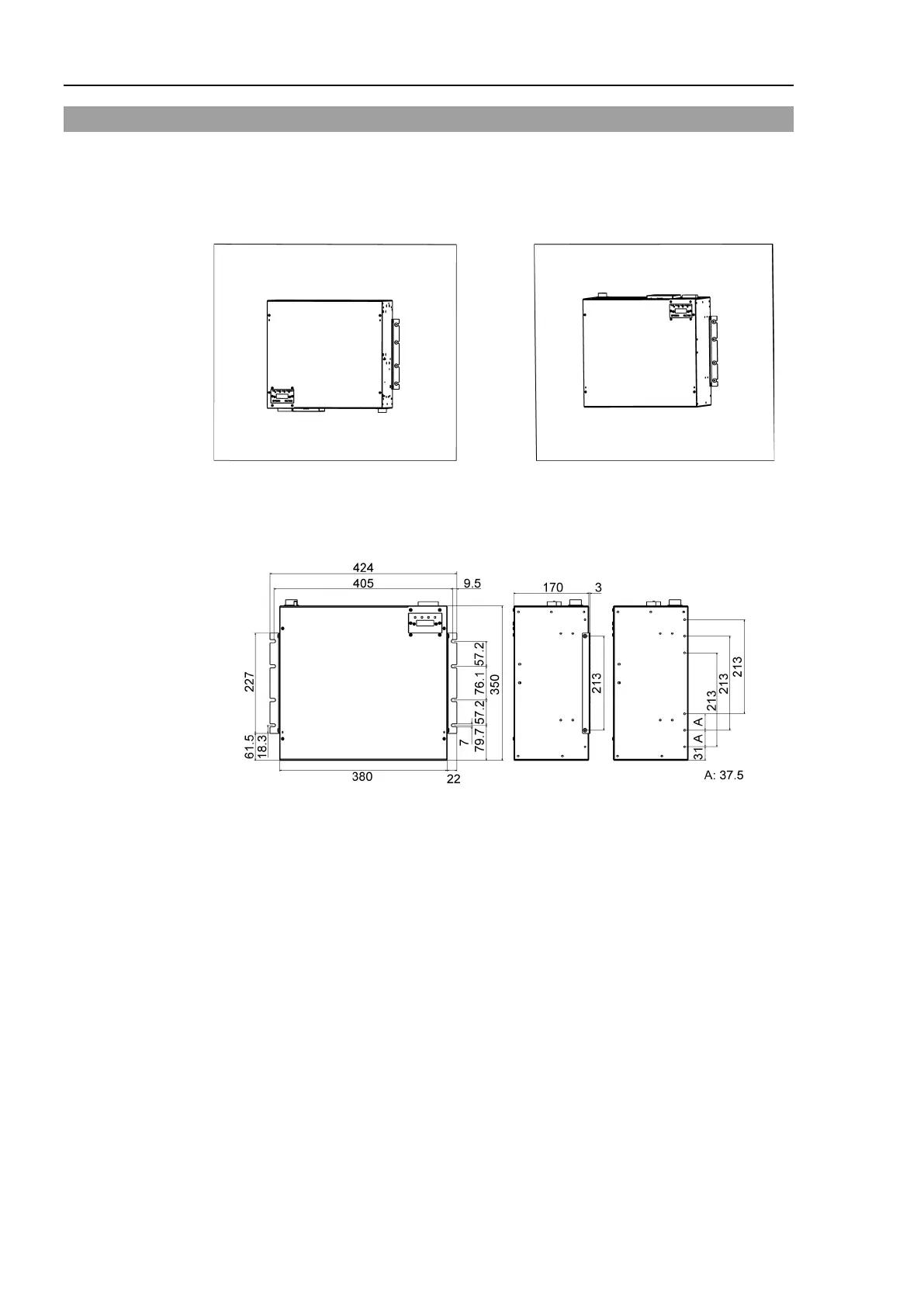

(Figure/Picture: RC700)
Wall mounting with the front side down
Wall mounting with the front side up
Controller outer dimensions when using the wall mounting option
Dimensions of the mounting holes for the wall
(Unit: mm)

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
