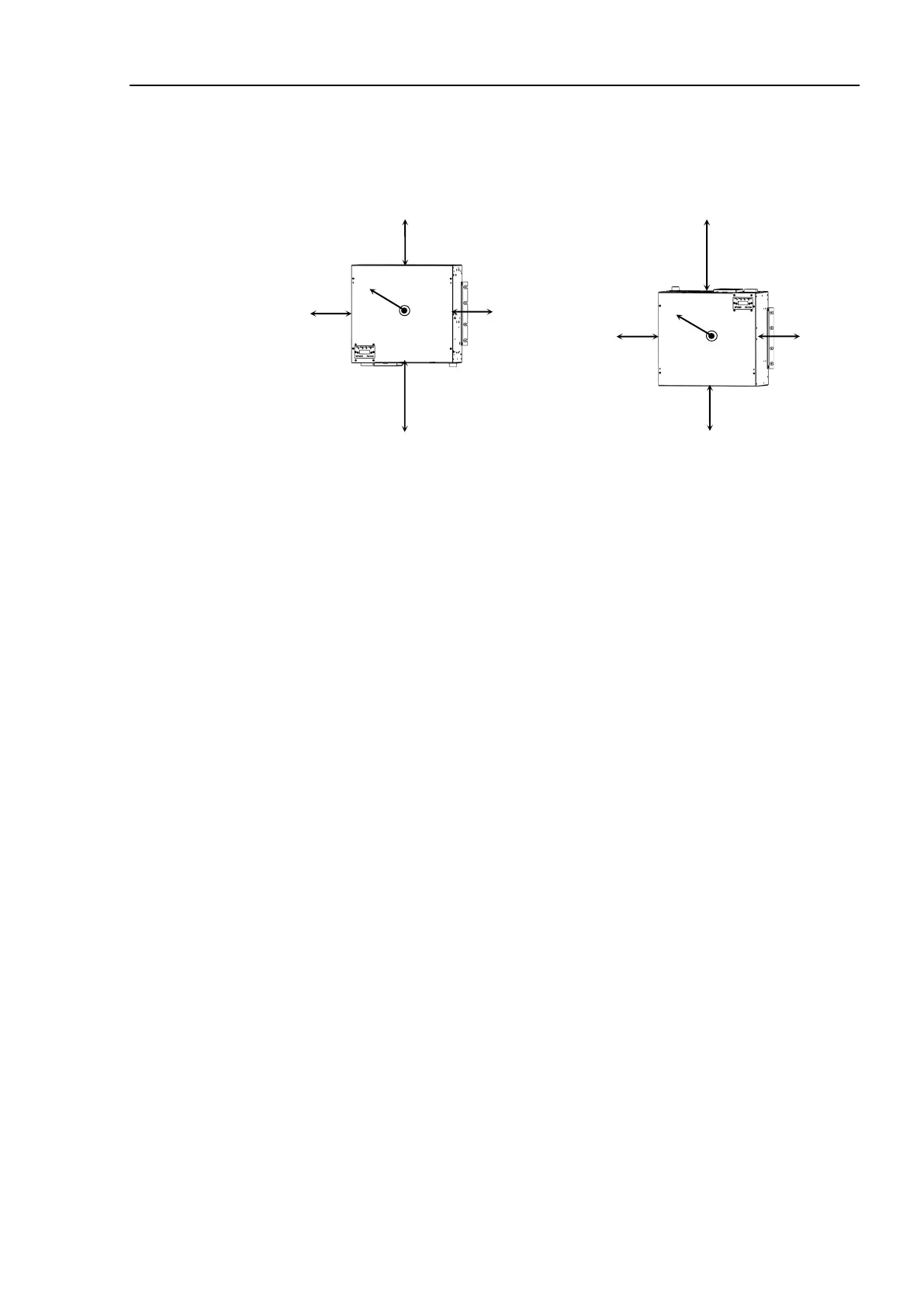

Ensure the air flow around the supply and exhaust ports, and install the Controller while
leaving space from other equipment or walls as below.
* Keep the space about 200 mm or more on the top to maintenance.
Wall mounting with the front side down
100 mm
200 mm
50 mm *
50 mm
50 mm
Wall mounting with the front side up
100 mm
200 mm
50 mm *
50 mm
50 mm
Included items of the wall mounting option
WALL FIXING BRACKET 2 brackets
LED DISPLAY FIXING PLATE 1 plate
LED DISPLAY PLATE 1 plate
Screw (M3 × 6 mm) 4 screws
Screw (M4 × 8 mm) 4 screws
