SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 102
Confidential
3.4.3.13 R Maintenance Cover Sensor
1. Remove the Media Loading Lever. (p158)
2. Remove the Panel Unit. (p86)
3. Remove the Right Upper Cover. (p88)
4. Remove the Board Box Cover. (p101)
5. Disconnect the cable from the connector (CN272) on the Main Board.
6. Release the cable from the five clamps.
7. Release the cable from the three FFC clamps.

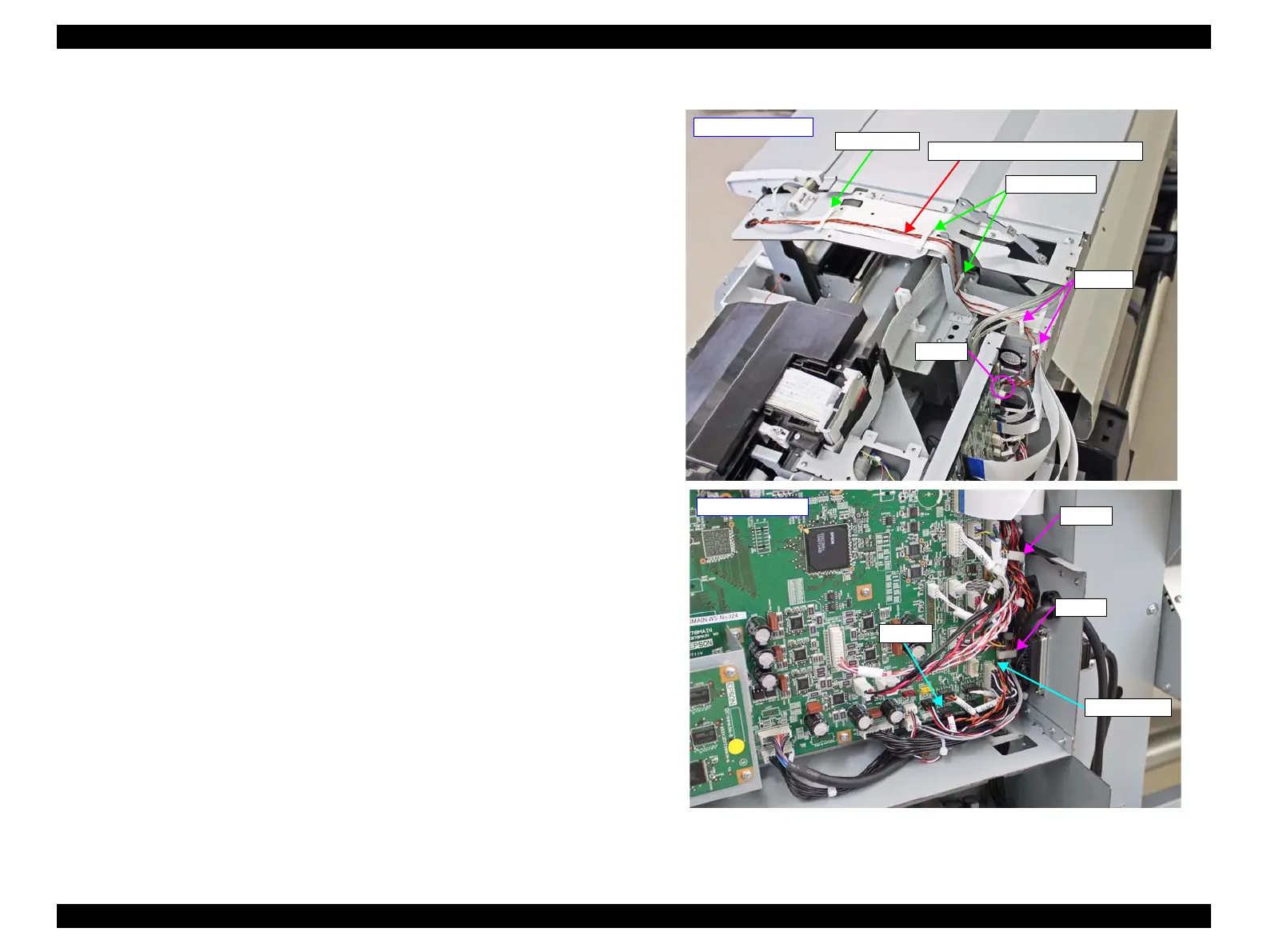

Figure 3-38. Releasing the Cable
- Right upper side -
FFC Clamp
FFC Clamps
R Maintenance Cover Sensor Cable
Clamp
Clamps
- Right rear side -
Clamp
Clamp
CN272
Main Board
