8. Remove the screw that secures the R Maintenance Cover Sensor.
A) Silver M3x8 P-tite screw with built-in washer: 1 pcs
9. Pull out the cable through the three holes on the frame.
10. Release the cable from the cable guide of the Right Front Cover, and remove the R
Maintenance Cover Sensor.

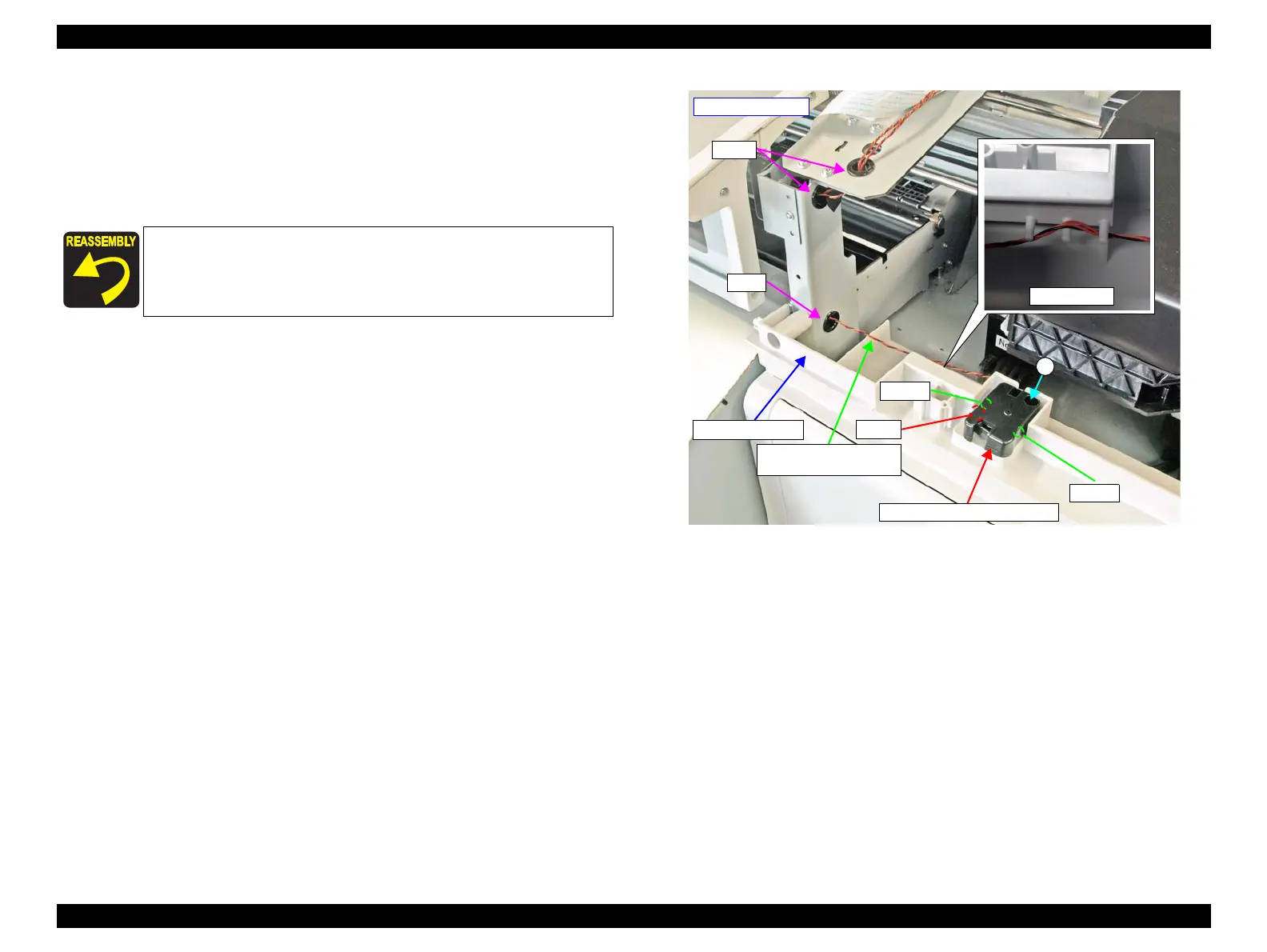

Figure 3-39. Removing the R Maintenance Cover Sensor
 When installing the R Maintenance Cover Sensor, properly
engage its two dowels and one hook with the three positioning
holes on the Right Front Cover.
 Route the sensor cable through the cable guide correctly.
- Right front side -
Holes
Hole
R Maintenance Cover
Sensor Cable
R Maintenance Cover Sensor
Right Front Cover
Dowel
Hook
Dowel
A
Cable Guide
