Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 104
Confidential
3.4.3.14 Front Cover R Sensor
1. Remove the Media Loading Lever. (p158)
2. Remove the Panel Unit. (p86)
3. Remove the Right Upper Cover. (p88)
4. Remove the Board Box Cover. (p101)
5. Disconnect the cable from the connector (CN271) on the Main Board.
6. Release the cable from the five clamps.
7. Release the cable from the three FFC clamps.

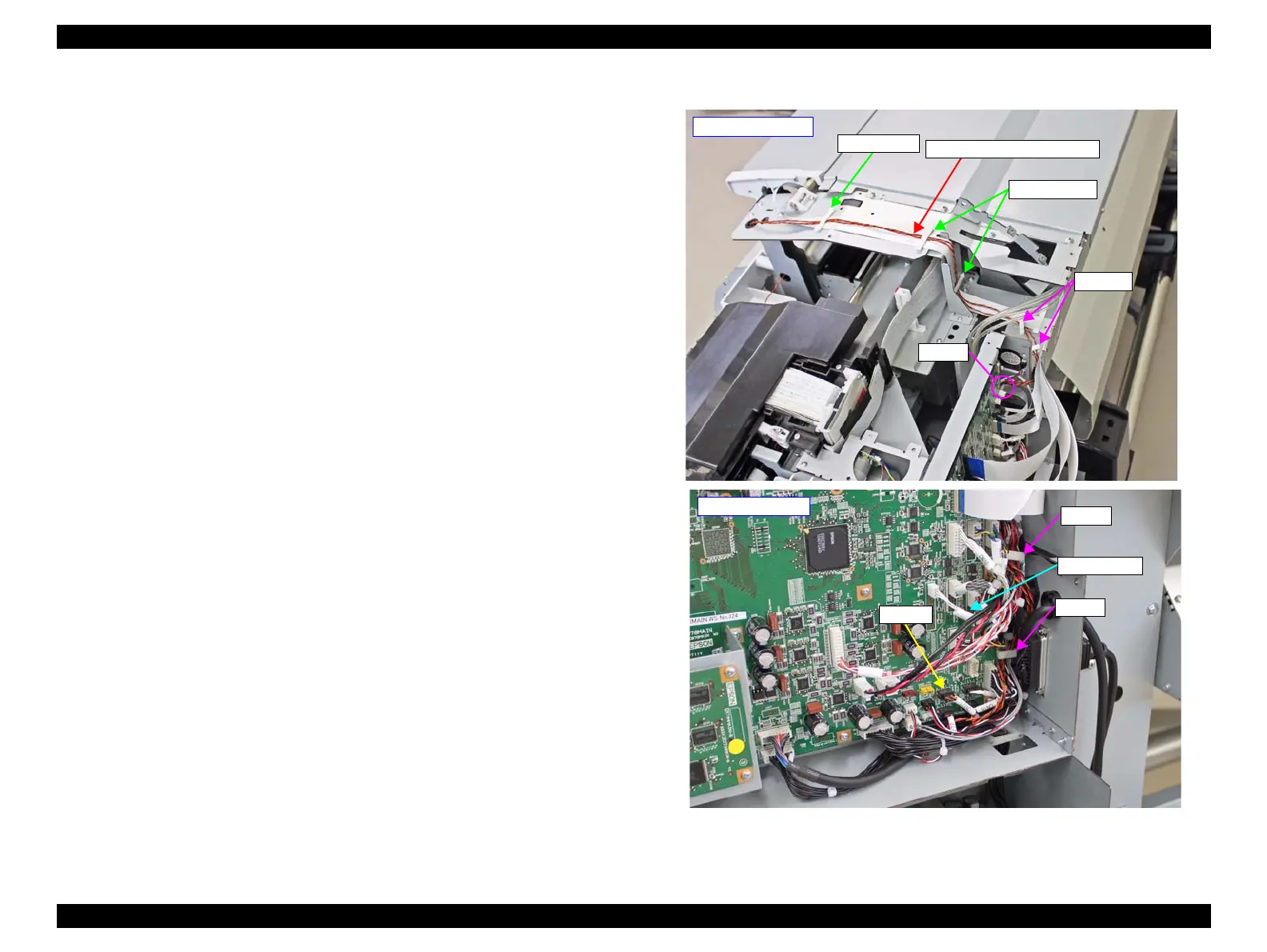

Figure 3-40. Releasing the Cable
- Right upper side -
FFC Clamp
FFC Clamps
Clamps
Clamp
Front Cover R Sensor Cable
- Right rear side -
Clamp
Clamp
CN271
Main Board
