Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 109
Confidential
3.4.4.3 Power Supply Board
1. Remove the Board Box Cover. (p101)
2. Remove the Board Right Frame. (See Step 4 in
“3.4.3.2 Right Upper Cover” (P.
88))
3. Remove the two screws, and remove the shield plate.
A) Silver M3x6 screw: 2 pcs
4. Disconnect the cable from the connector (CN51) on the Power Supply Board.
5. Release the cable from the two clamps, and pull it out on the box.

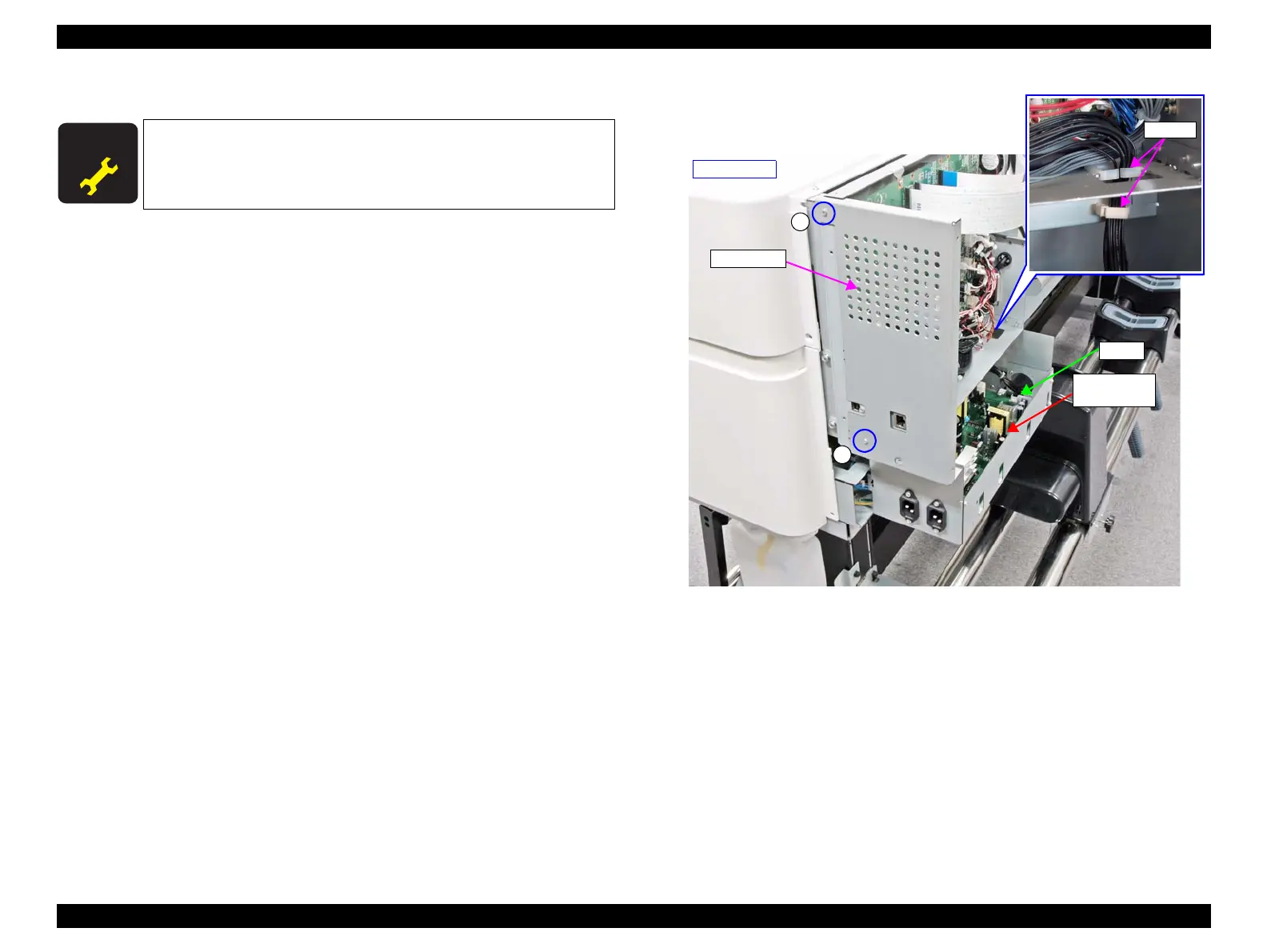

Figure 3-48. Removing the Shield Plate
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p200) and make sure to
perform the specified operations including required adjustment.
A
A
- Right side -
Shield plate
CN51
Power Supply
Board
Clams
