Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 110
Confidential
6. Disconnect the connector of the Reel Unit.
7. Remove the five screws, and remove the Right Rear Cover.
B) Silver M4x10 S-tite screw with washer: 4 pcs
C) Silver M3x6 screw: 1 pcs

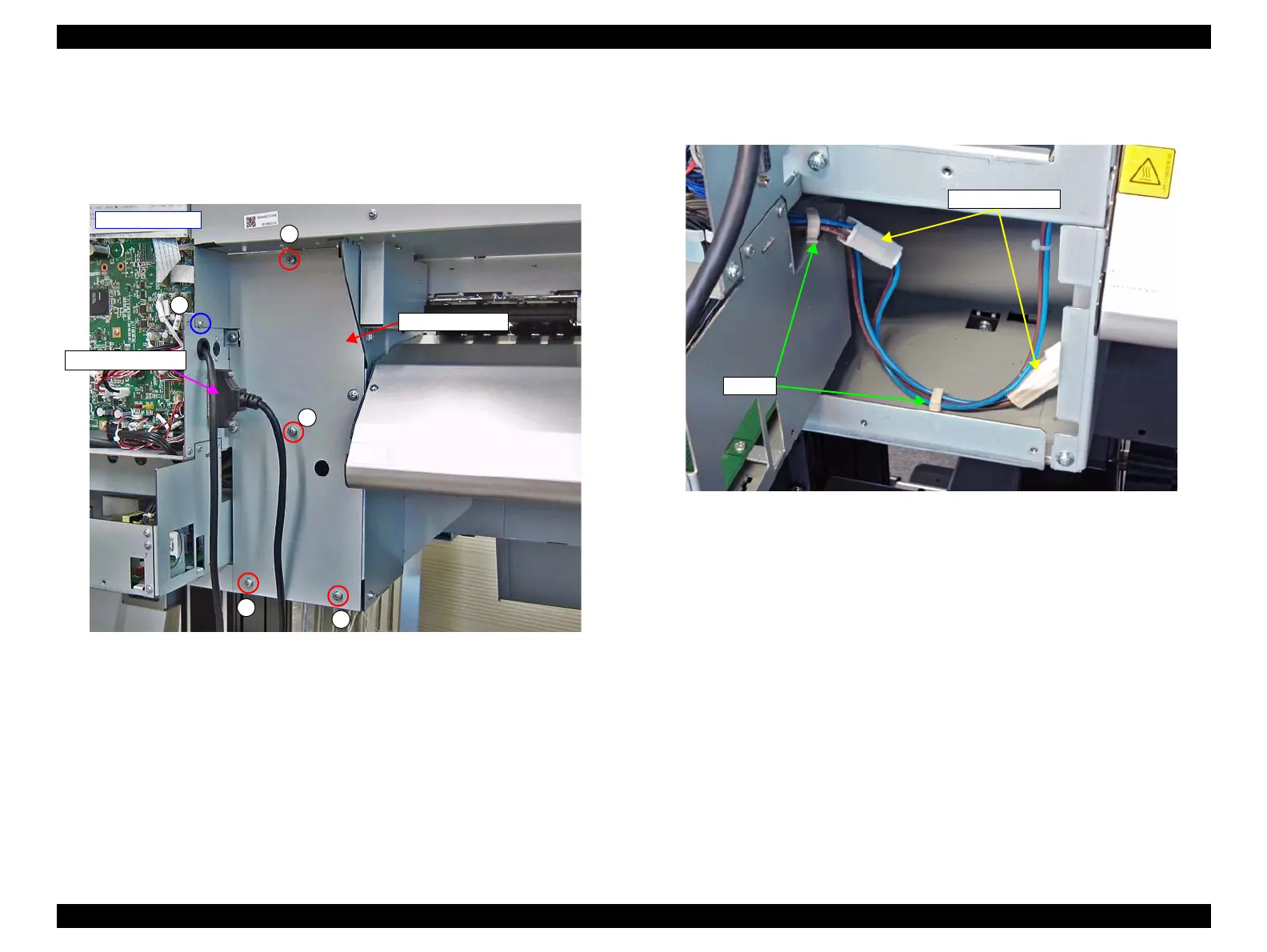

Figure 3-49. Removing the Right Rear Cover
8. Disconnect and release the cables from two relay connectors and from the two
clamps.
Figure 3-50. Releasing the Cables
B
B
B
B
C
- Right rear side -
Right Rear Cover
Reel Unit connector
Relay connectors
Clamp
