Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 111
Confidential
9. Remove the five screws that secure the Power Supply Board Box.
D) Silver M4x10 S-tite screw with washer: 2 pcs
E) Silver M3x6 screw: 3 pcs
10. Slide the Power Supply Board Box in the direction of the arrow, and remove it
toward the rear of the printer.

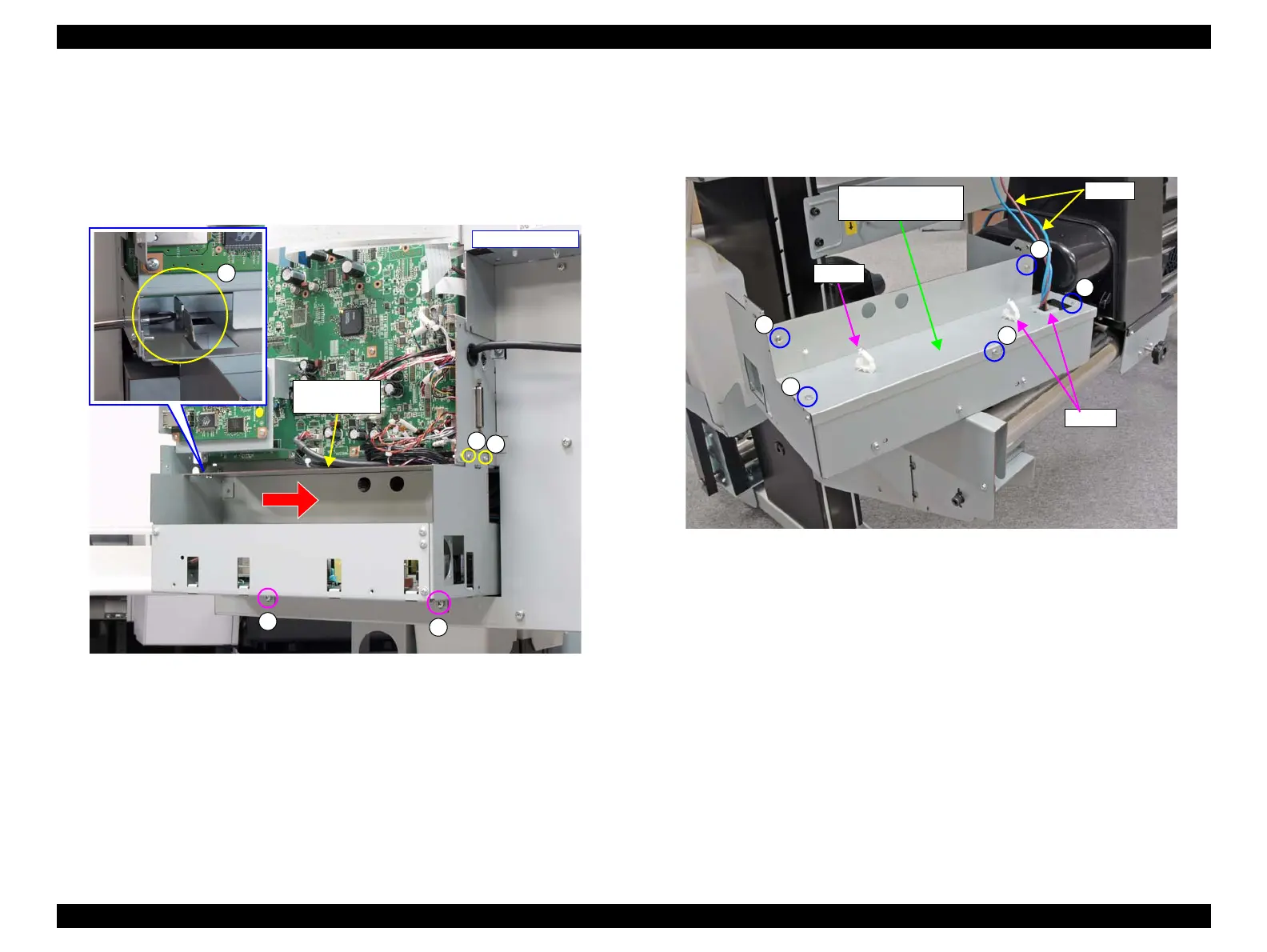

Figure 3-51. Removing the Power Supply Board Box
11. Release the cables from the three clamps of the Power Supply Board Box Cover.
12. Remove the five screws, and remove the Power Supply Board Box Cover.
F) Silver M3x6 screw: 5 pcs
Figure 3-52. Removing the Power Supply Board Box Cover
D
D
E
E
E
- Right rear side -
Power Supply
Board Box
F
F
F
F
F
Power Supply Board
Box Cover
Clamp
Clamps
Cables
