SC-S30600 Series
Revision B
DISASSEMBLY & ASSEMBLY
Disassembly and Assembly Procedure
112
Confidential
13.
Disconnect the cables from the connectors (CN1, CN2) on the Power Supply
Board.
14.
Remove the nine screws, and remove the Power Supply Board.
G) Silver
M3x6 screw:
9 pcs

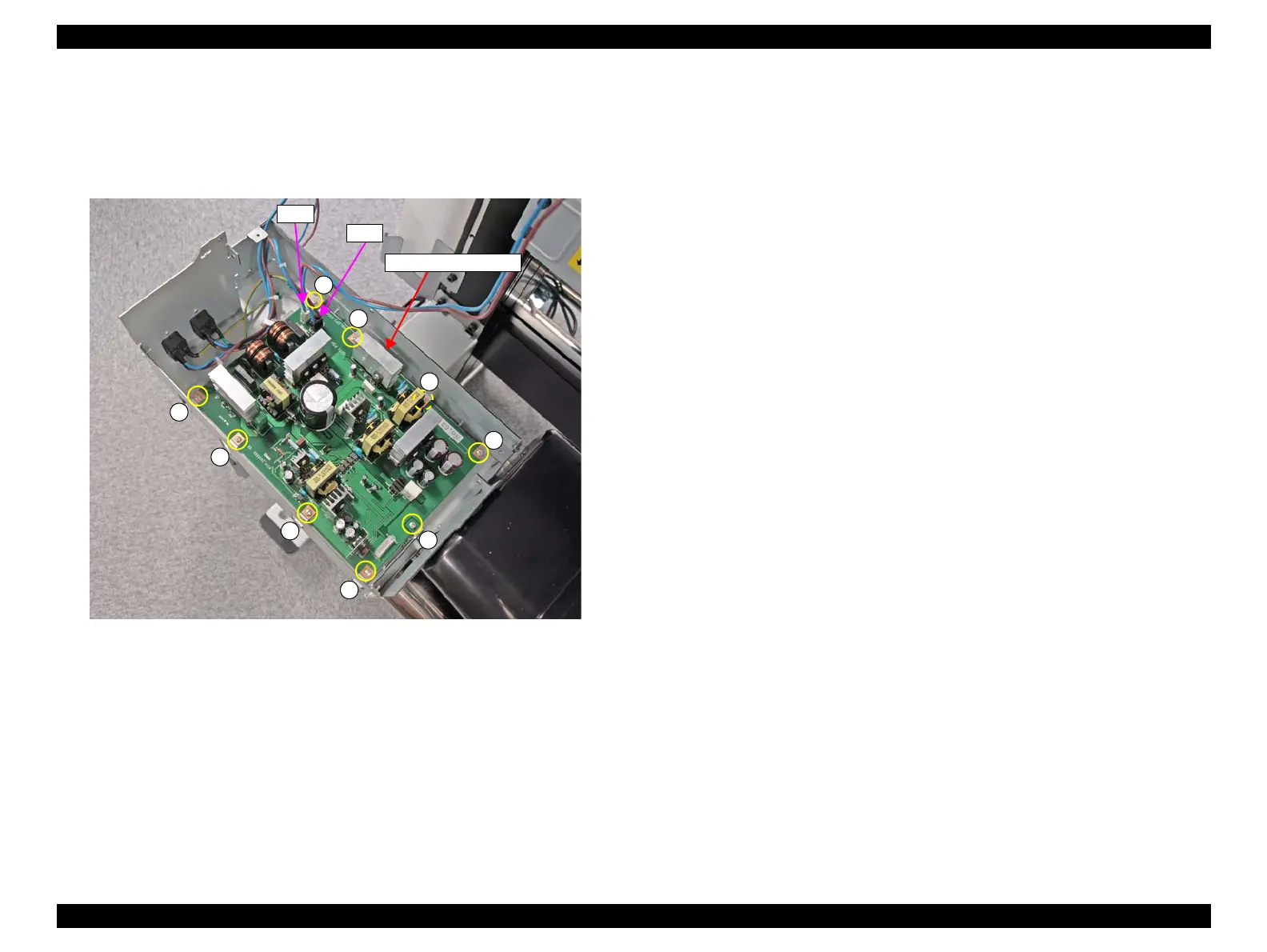

Figure 3-53. Removing the
Power Supply Board
G
G
G
G
G
G
G
G
G
CN1
CN2
Power Supply Board
111
113
