Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 122
Confidential
10. Remove the FFC clamp.
11. Remove the three screws, and remove the Print Head.
C) Silver M3x8 screw (Bit No.1): 3 pcs
12. Disconnect the Head FFCs from the Print Head.

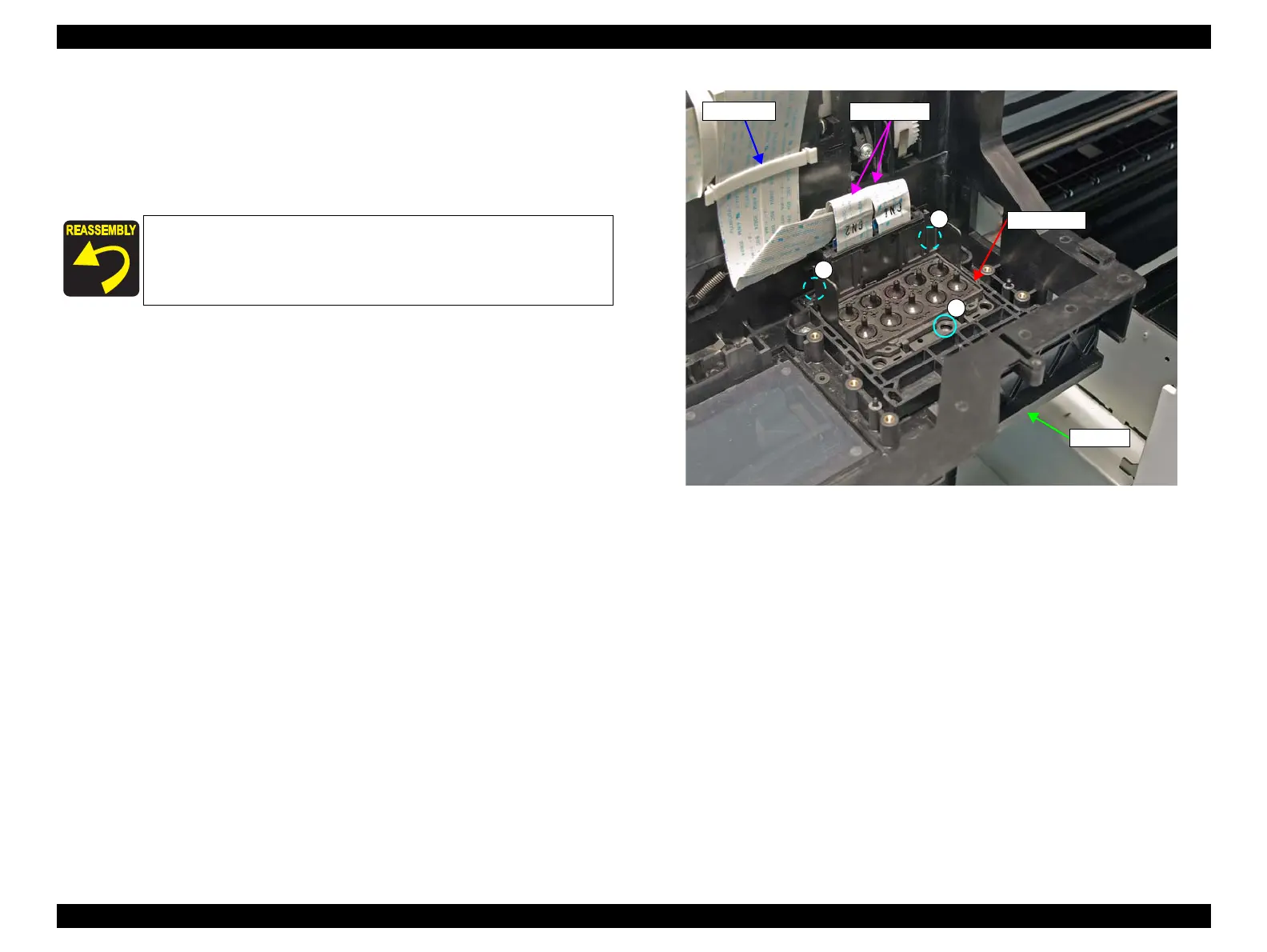

Figure 3-68. Removing the Print Head
Make sure to connect the Head FFCs straight and all the way
seated in the connector.
C
C
C
Head FFCs
Print Head
CR Unit
FFC clamp
