Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 123
Confidential
3.4.5.4 Head FFC
1. Remove the Media Loading Lever. (p158)
2. Remove the Panel Unit. (p86)
3. Remove the Right Upper Cover. (p88)
4. Remove the Left Rear Cover. (p94)
5. Remove the Left Upper Cover. (p95)
6. Remove the Upper Cover. (p100)
7. Remove the CR Cover. (p119)
8. Remove the Damper Kit. (p120)
9. Remove the Print Head. (p121)
10. Remove the two screws, and remove the Ink Path Holder Assy.
A) Silver M3x10 screw: 2 pcs

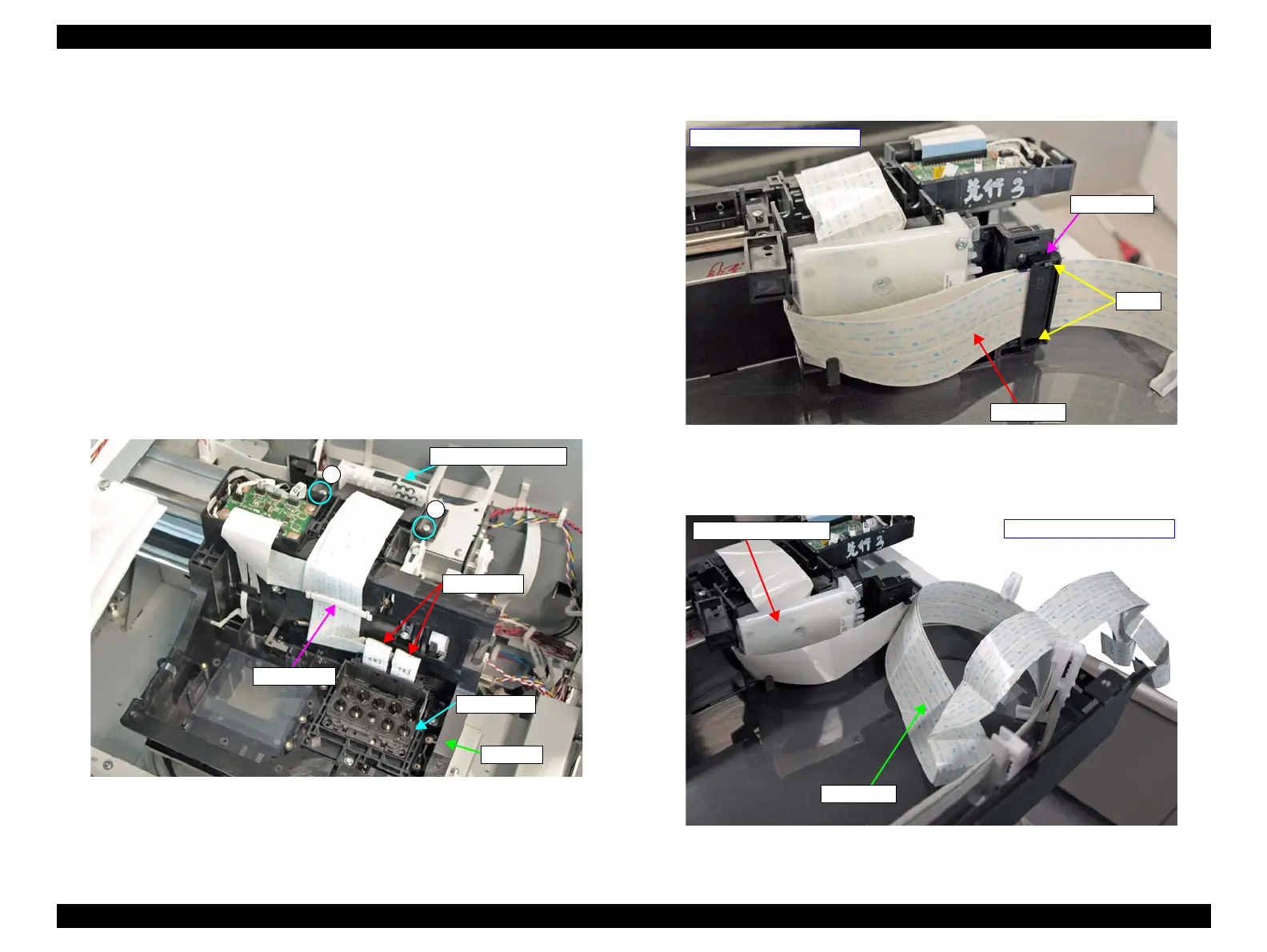

Figure 3-69. Releasing the Head FFC
11. Disengage the two hooks, and remove the FFC Holder.
Figure 3-70. Removing the FFC Holder
12. Release the Head FFC from the Ink Path Holder Assy.
Figure 3-71. Released Head FFC
A
A
Ink Path Holder Assy
Head FFCs
FFC Clamp
Print Head
CR Unit
- Rear side of the CR Unit-
Hooks
FFC Holder
Head FFC
- Rear side of the CR Unit-
Ink Path Holder Assy
Head FFC
