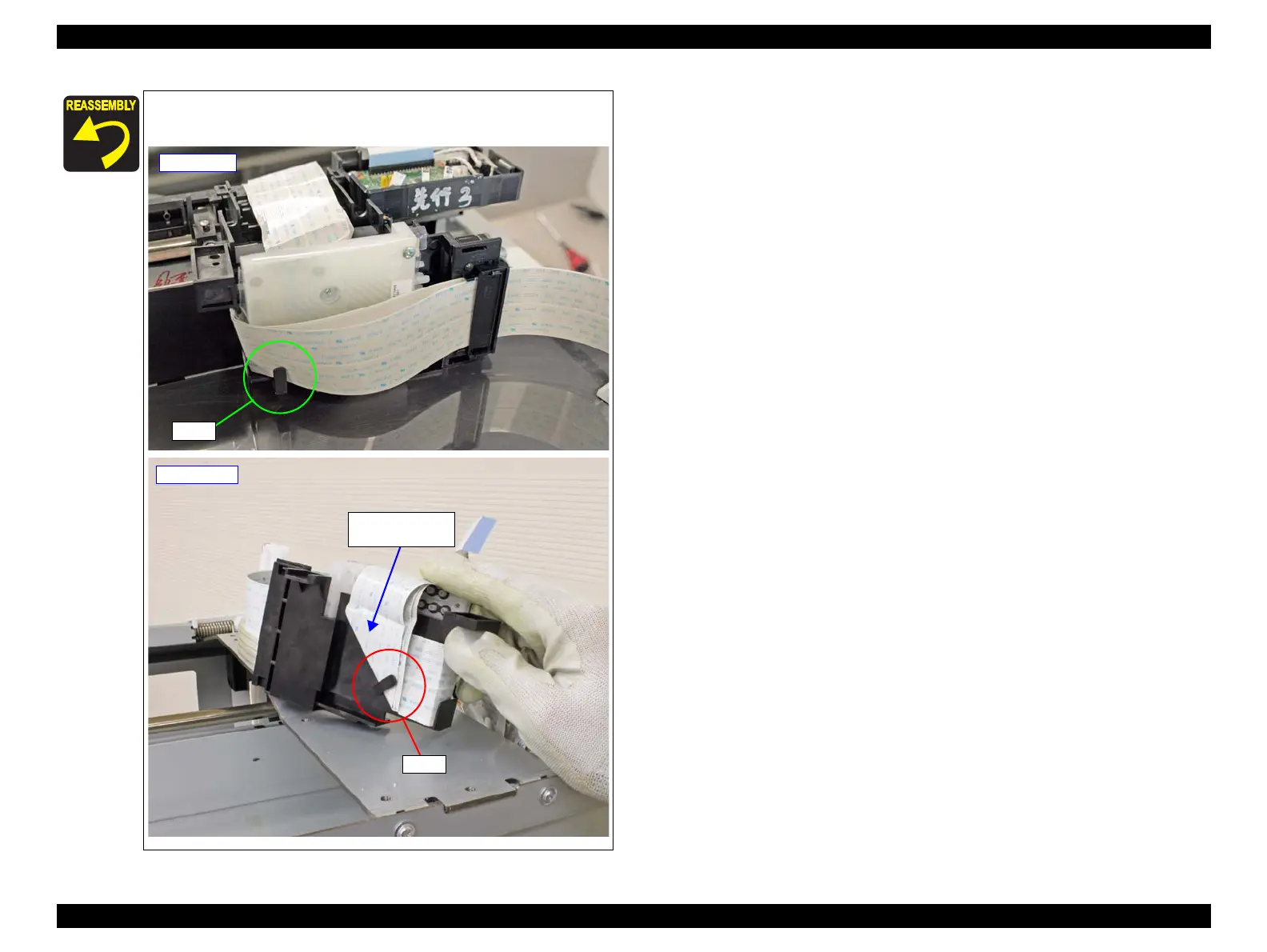

When routing the Head FFC through the Ink Path Holder Assy,
make sure to let the FFC run under the hooks as shown below.
- Rear side -
Hook
- Front side -
Hook
Lap the FFCs and
then fold them.
