3.4.5.5 Head Relay FFC
1. Remove the Media Loading Lever. (p158)
2. Remove the Panel Unit. (p86)
3. Remove the Right Upper Cover. (p88)
4. Remove the Left Rear Cover. (p94)
5. Remove the Left Upper Cover. (p95)
6. Remove the Upper Cover. (p100)
7. Remove the Board Box Cover. (p101)
8. Remove the Cover. (See Step 15 in
“3.4.5.4 Head FFC” (P. 123))
9. Disconnect the Head Relay FFCs from the connectors (CN400, CN401) on the
Sub-D Board.
10. Remove the acetate tape, and release the Head Relay FFCs from the FFC clamp.

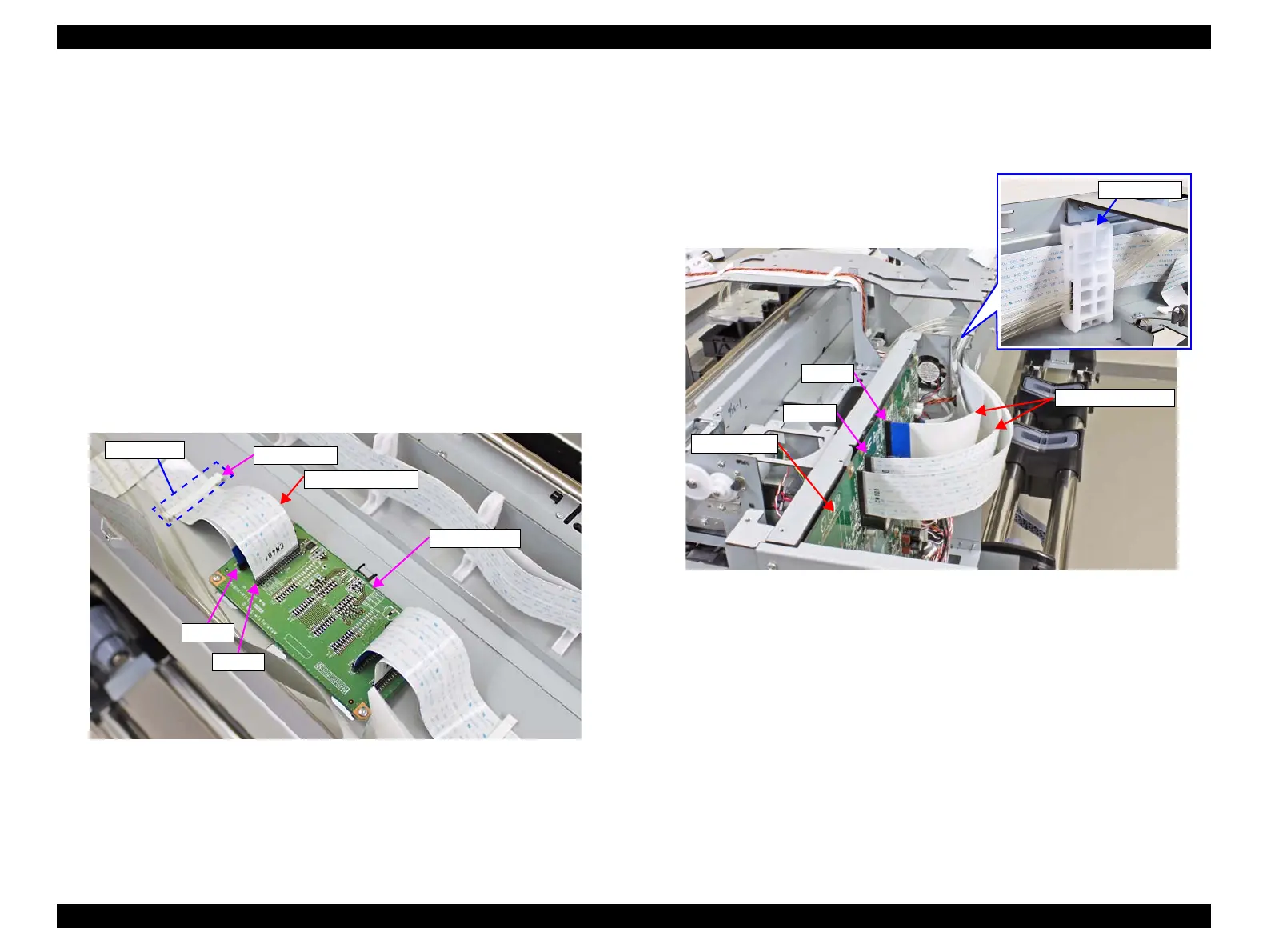

Figure 3-74. Removing the Head Relay FFC
11. Disconnect the Head Relay FFCs from the connectors (CN400, CN401) on the
Main Board.
12. Pull out the Head Relay FFCs from the main body.
Figure 3-75. Removing the Head Relay FFC
Head Relay FFC
Sub-D Board
CN400
CN401
FFC Clamp
Acetate tape
FFC Holder
Main Board
CN400
CN401
Head Relay FFCs
