Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 135
Confidential
10. Move the CR Unit until to a position over the platen.
11. Remove the CR Timing Belt from the pinion gear of the CR Motor.
12. Disconnect the CR Motor Cable from the connector (CN1) on the Sub-M Board,
and release the CR Motor Cable from the clamp.
13. Remove the two screws and the plate, and remove the CR Motor.
C) Silver M4x10 screw: 2 pcs

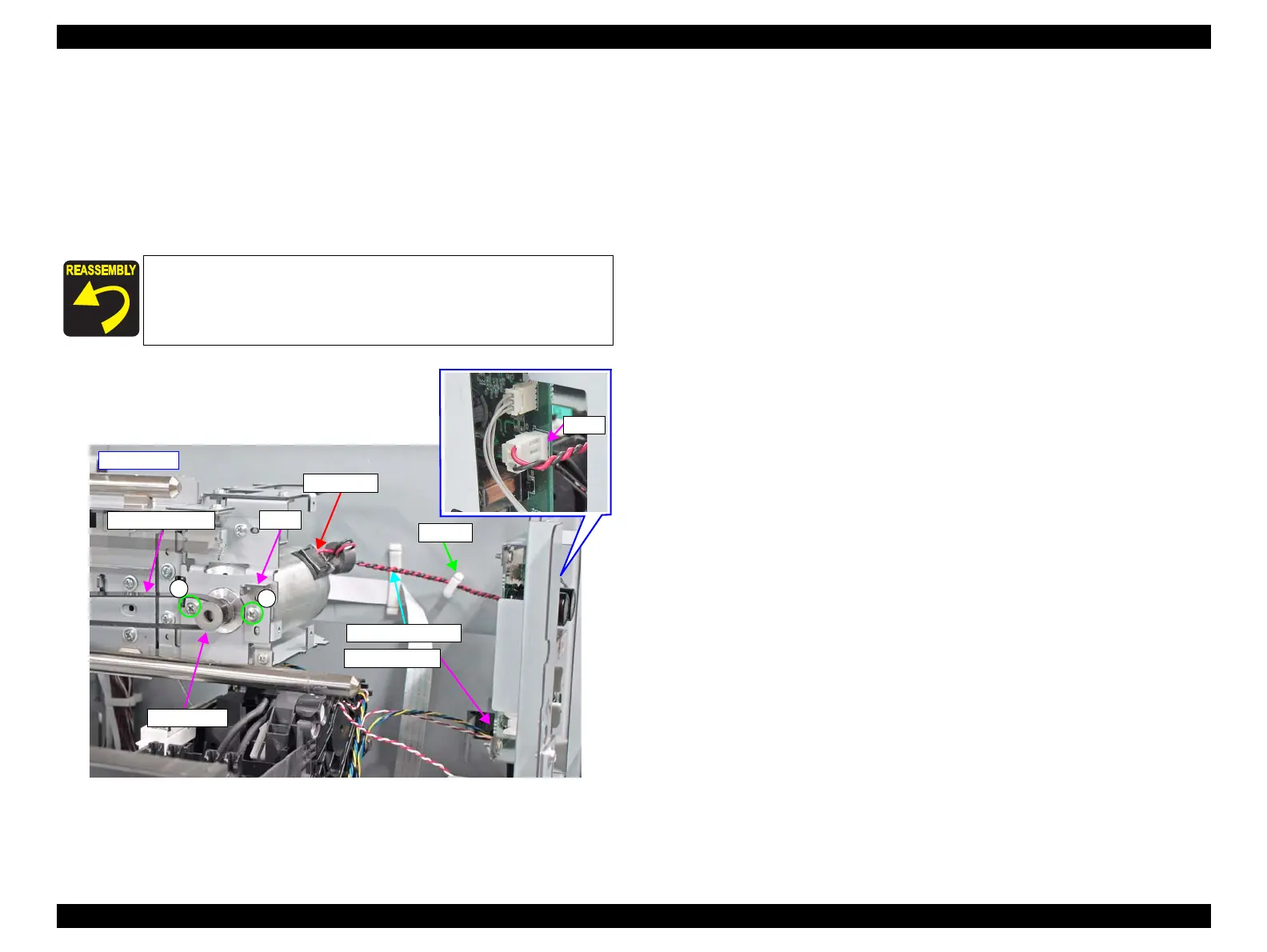

Figure 3-84. Removing the CR Motor
When installing the CR Motor, make sure to install it in the correct
orientation as shown in Figure3-84.
C
C
CN1
- Right side -
CR Motor
Plate
Clamp
CR Motor Cable
Sub-M Board
CR Timing Belt
Pinion gear
