SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 136
Confidential
3.4.5.10 CR HP Sensor
1. Unlock the CR Unit. (p82)
2. Remove the Media Loading Lever. (p158)
3. Remove the Right Upper Cover. (p88)
4. Move the CR Unit until to a position over the platen.
5. Disengage the hooks, and remove the CR HP Sensor.
6. Disconnect the cable from the CR HP Sensor.

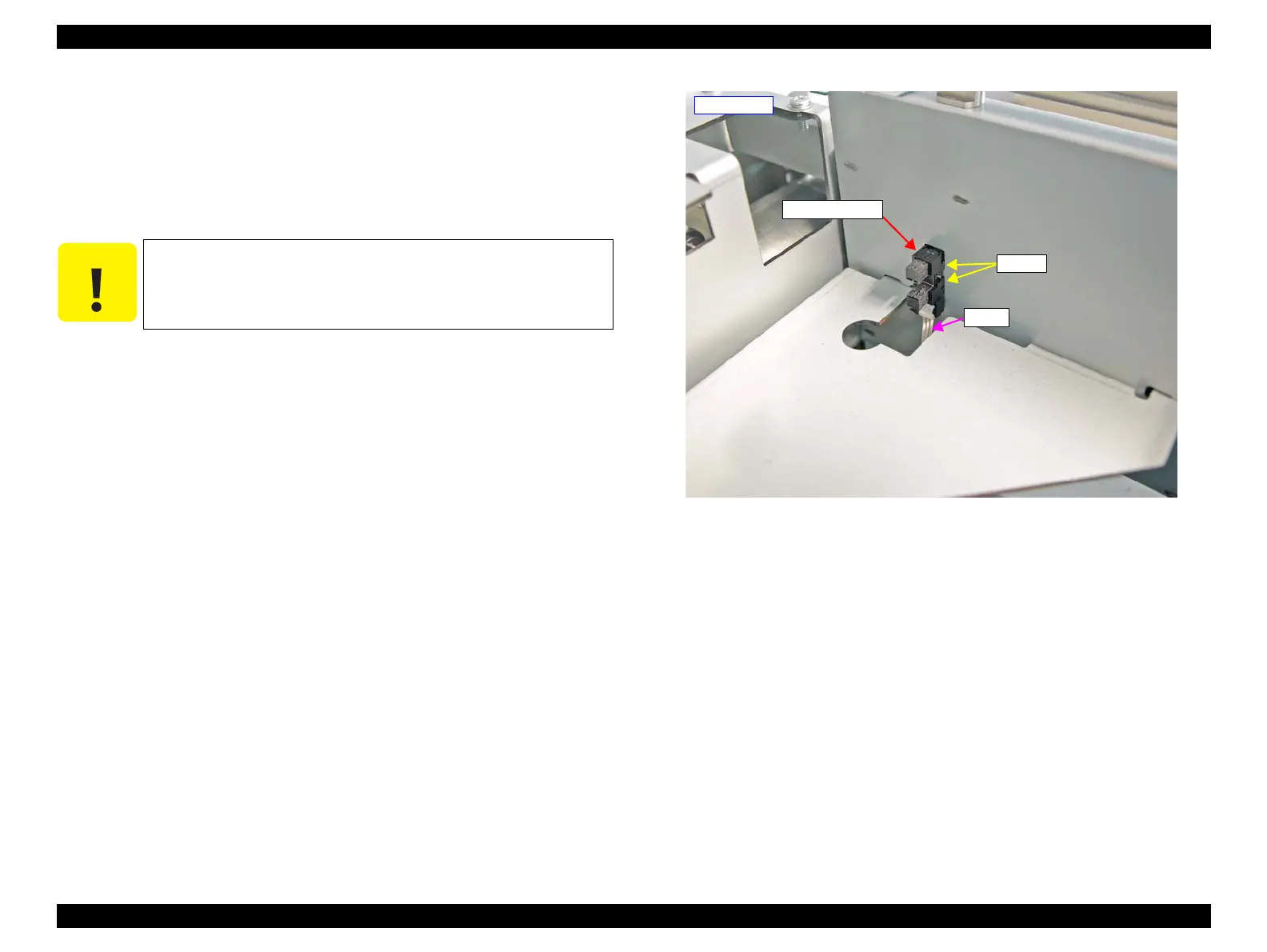

Figure 3-85. Removing the CR HP Sensor
C A U T I O N
At the next step, be careful not to damage the hooks of the CR HP
Sensor as they are very thin.
- Rear side -
CR HP Sensor
Cable
Hooks
