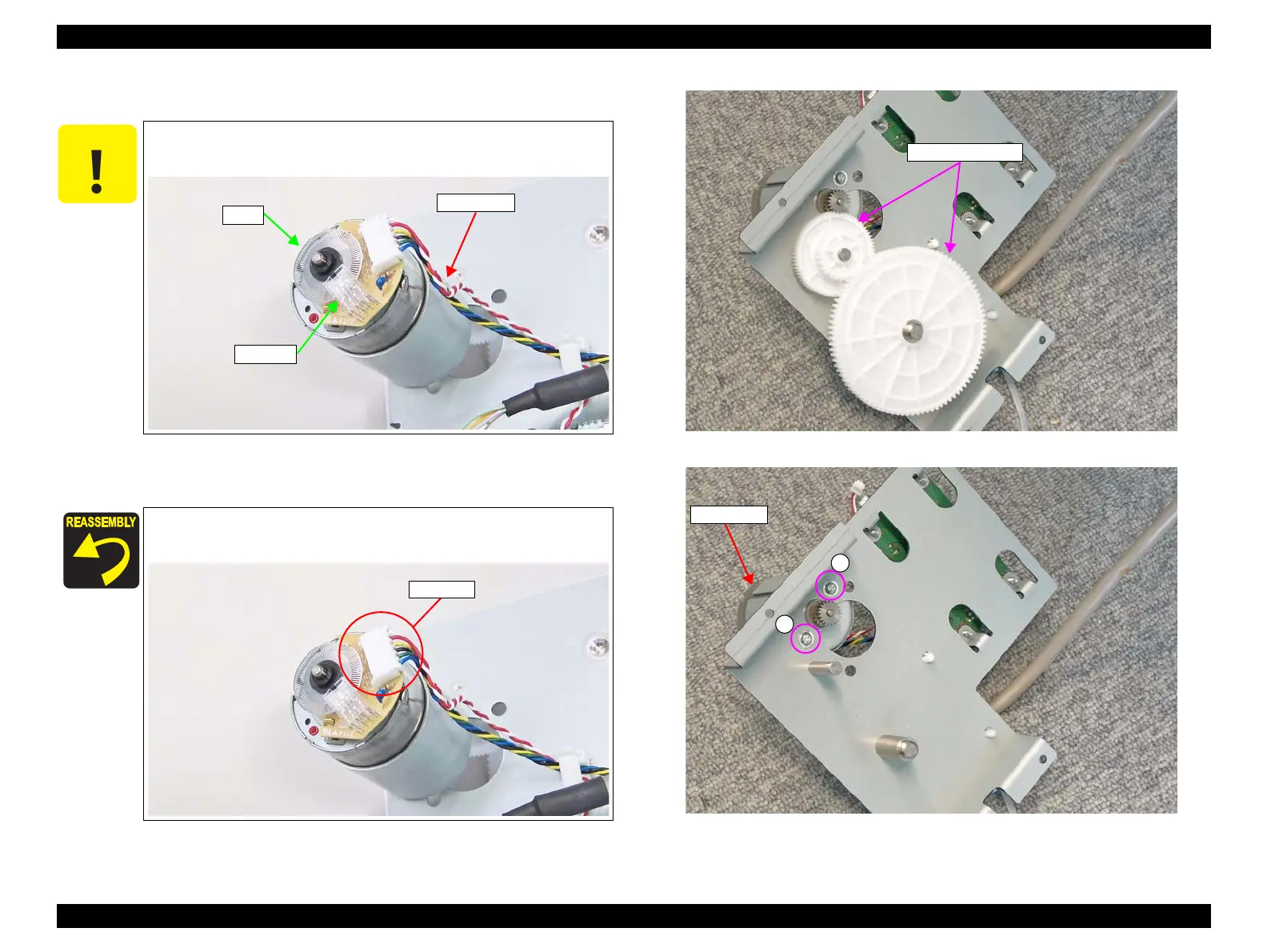

8. Remove the two Compound Gears.
9. Remove the two screws, and remove the Reel Motor.
B) Silver M3x6 S-tite screw with built-in washer: 2 pcs
Figure 3-157. Removing the Compound Gears
Figure 3-158. Removing the Reel Motor
C A U T I O N
Be careful not to damage the encoder and scale of the Reel Motor in
the next step.
Make sure to install the Reel Motor in the correct orientation
checking the connector position.
Scale
Reel Motor
Encoder
Connector
Compound Gears
B
B
Reel Motor
