Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 190
Confidential

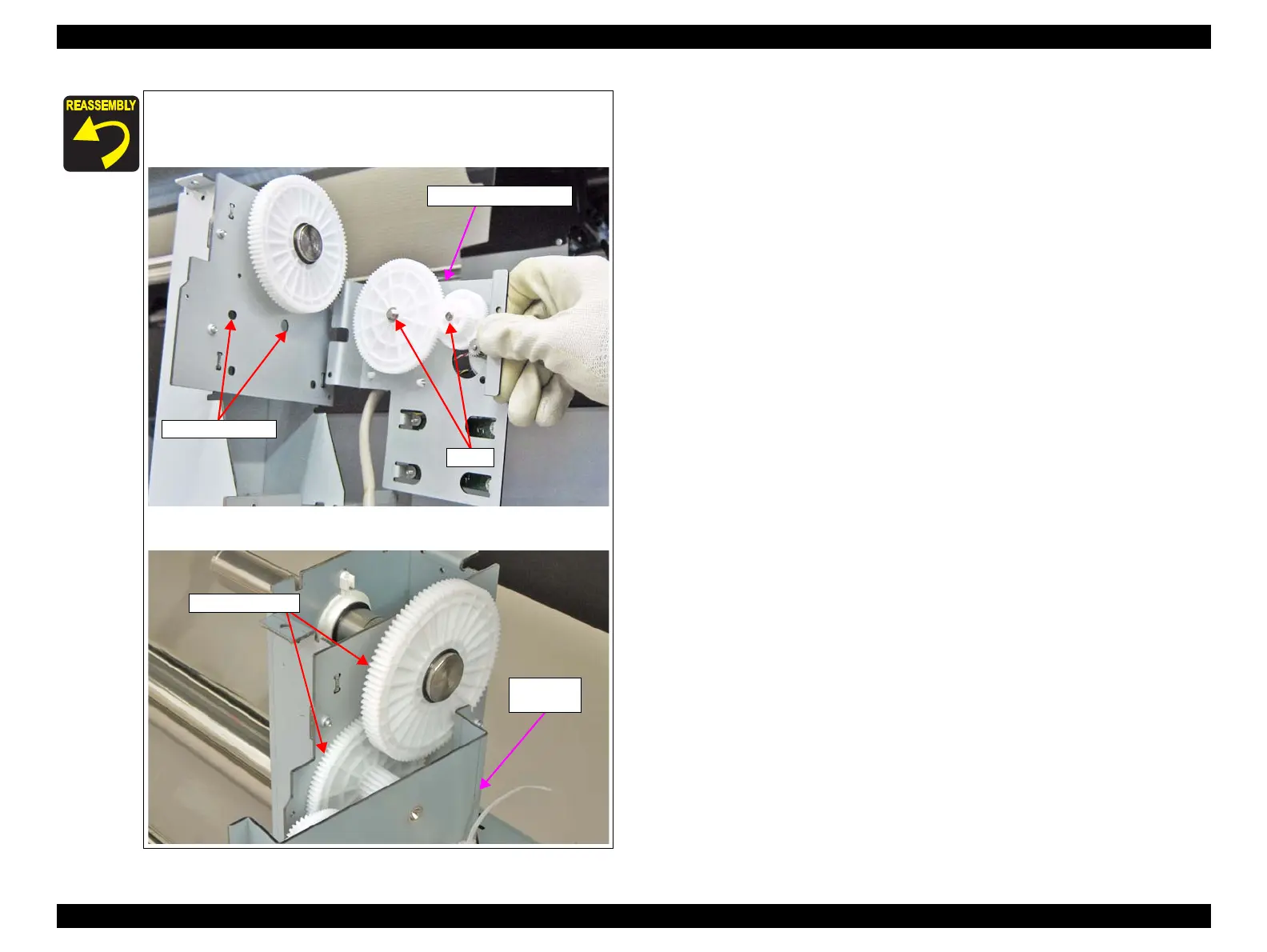

When installing the Right Reel Side Frame, confirm the following.
 Set the two shafts of the Right Reel Side Frame into the two
positioning holes on the frame.
 Install the two Compound Gears as shown in the figure below.
Right Reel Side Frame
Positioning holes
Shafts
Right Reel
Side Frame
Compound Gears
