3.4.9.4 Reel Motor
1. Remove the Roll Paper Holder of the Right Reel Unit. (p185)
2. Remove the Right Reel Side Cover.
(See Step 2 to Step 5 in
“3.4.9.3 Sub-F Board (Reel)” (P. 186))
3. Disconnect the cable from the connector (CN606) on the Sub-F Board.
4. Release the cable from the clamp, and remove the Right Reel Cover.
5. Disconnect the cable from the connector of the Reel Motor.

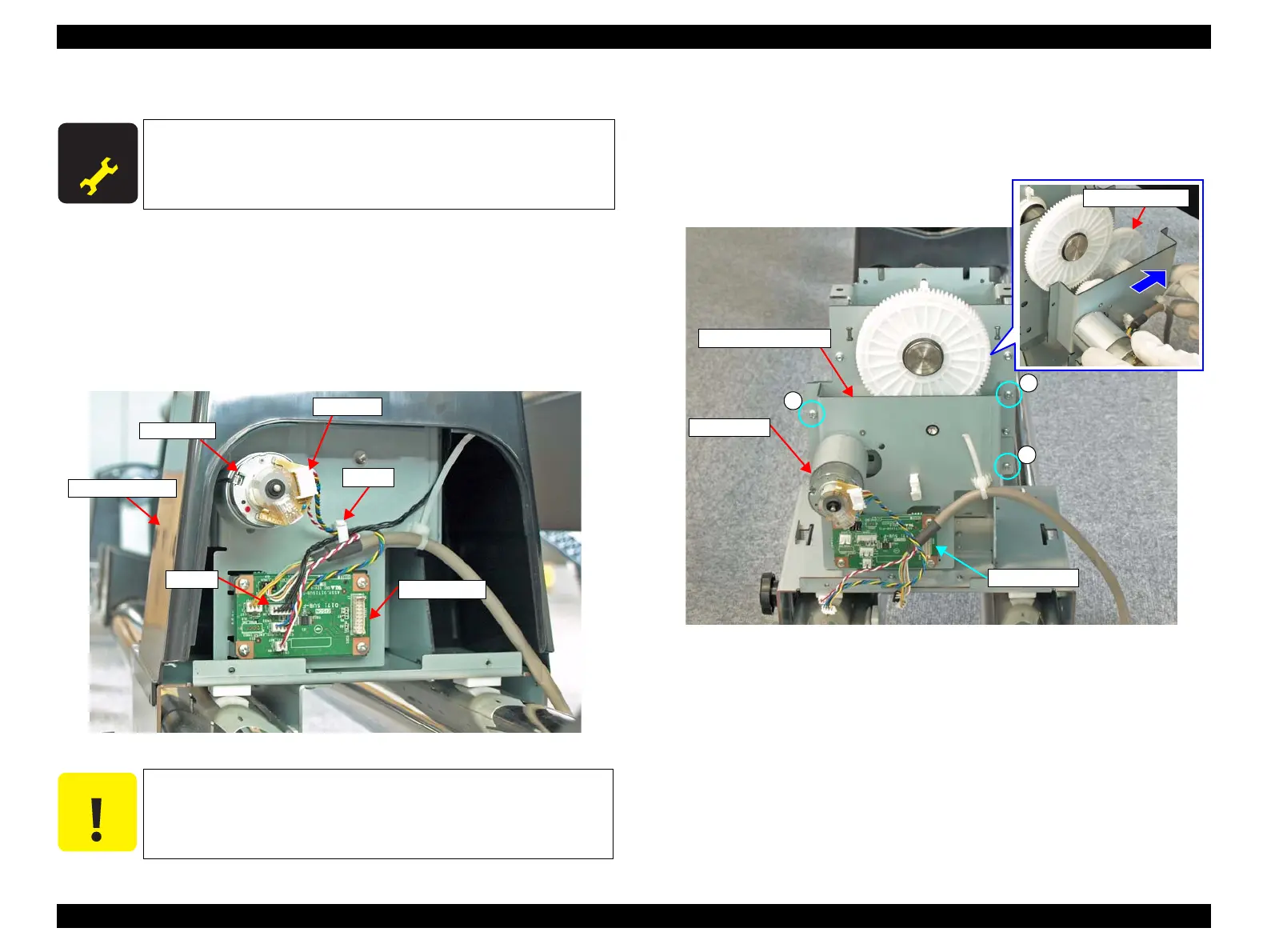

Figure 3-155. Removing the Right Reel Cover
6. Remove the three screws that secure the Right Reel Side Frame.
A) Silver M3x8 S-tite screw: 3 pcs
7. Slide the Right Reel Side Frame in the direction of the arrow to remove it.
Figure 3-156. Removing the Right Reel Side Frame
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p200) and make sure to
perform the specified operations including required adjustment.
Perform the next step while holding the Compound Gears with
your hand to prevent it from falling.
Right Reel Cover
Clamp
CN606
Sub-F Board
Reel Motor
Connector
Right Reel Side Frame
Reel Motor
Sub-F Board
